ADS7946 Series
Manufacturer: Texas Instruments
Beta
⌘K

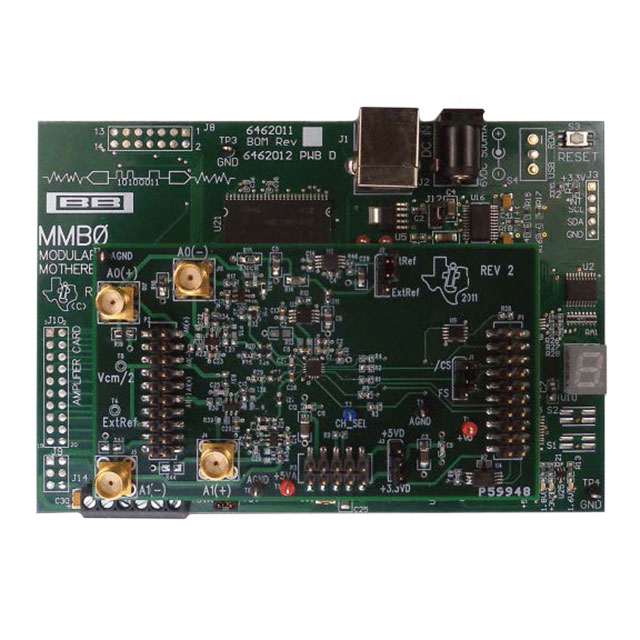

ADS7946 ADC EVALUATION BOARD 2MSPS ADCPRO INSTALLER IDE
| Part | Power (Typ) @ Conditions | Supplied Contents | Data Interface | Utilized IC / Part | Sampling Rate (Per Second) | Number of Bits | Number of A/D Converters | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Package / Case | Input Type | Number of Inputs | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Architecture | Ratio - S/H:ADC | Mounting Type | Reference Type | Configuration | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 11.6 mW | Board(s) | Serial | ADS7946 | 2M | 14 | 1 | |||||||||||||||
 Texas Instruments | SPI | 2M | 14 | 1 | 2.7 V | 5.25 V | 16-WFQFN Exposed Pad | Single Ended | 2 | 5.25 V | 1.65 V | SAR | 1:1 | Surface Mount | External | MUX-S/H-ADC | 16-WQFN (3x3) | 125 °C | -40 °C |
