EEG.0B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 5P GOLD SLDR CUP

Part	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Color	Ingress Protection	Primary Material	Shell Material	Connector Type	Shell Finish	Mounting Type	Mounting Feature	Shielding	Current Rating (Amps)	Shell Size - Insert	Fastening Type	Contact Finish - Mating	Material Flammability Rating	Orientation [custom]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Shell Size - Insert [custom]

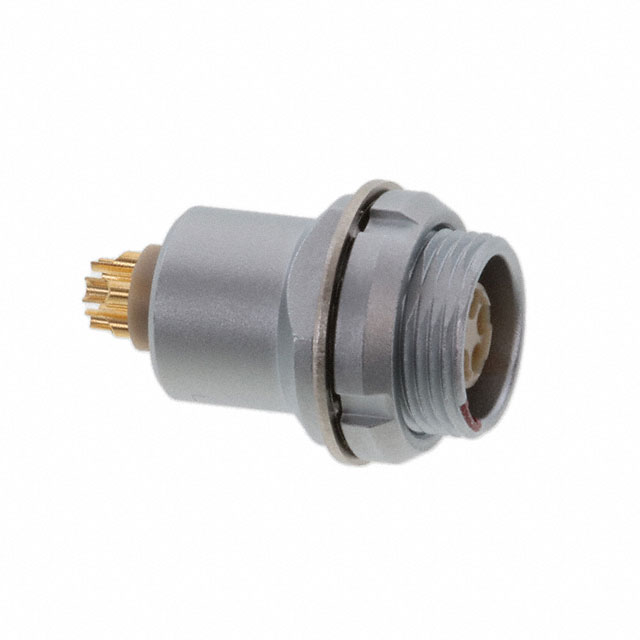

LEMO EEG.0B.305.CLL	Bronze	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected	Metal	Brass	Receptacle Female Sockets	Chrome	Panel Mount	Bulkhead - Front Side Nut	Shielded	6.5 A	305	Push-Pull	Gold	UL94 V-0	G	5	-55 C	250 °C

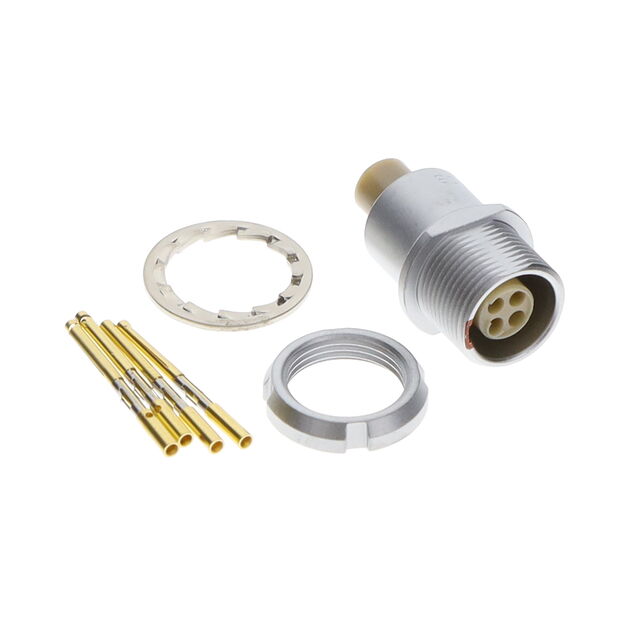

LEMO EEG.0B.304.CYM	Bronze	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected	Metal	Brass	Receptacle Female Sockets	Chrome	Panel Mount	Bulkhead - Front Side Nut	Shielded	7 A	304	Push-Pull	Gold	UL94 V-0	G	4	-55 C	250 °C	Crimp

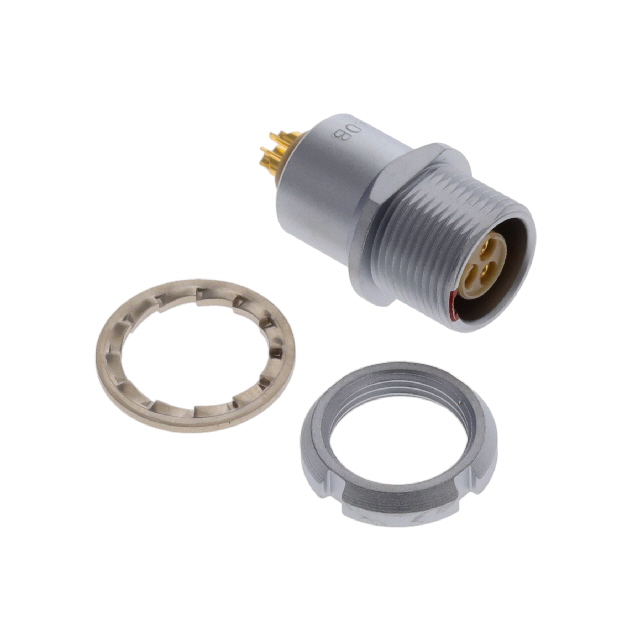

LEMO EEG.0B.303.CLL	Bronze	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected	Metal	Brass	Receptacle Female Sockets	Chrome	Panel Mount	Bulkhead - Front Side Nut	Shielded	8 A	303	Push-Pull	Gold	UL94 V-0	G		-55 C	250 °C
LEMO EEG.0B.307.CLV	Bronze	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected	Metal	Brass	Receptacle Female Sockets	Chrome	Panel Mount Right Angle Through Hole	Bulkhead - Front Side Nut	Shielded	2.5 A		Push-Pull	Gold	UL94 V-0	G	7	-55 C	250 °C	Solder	307

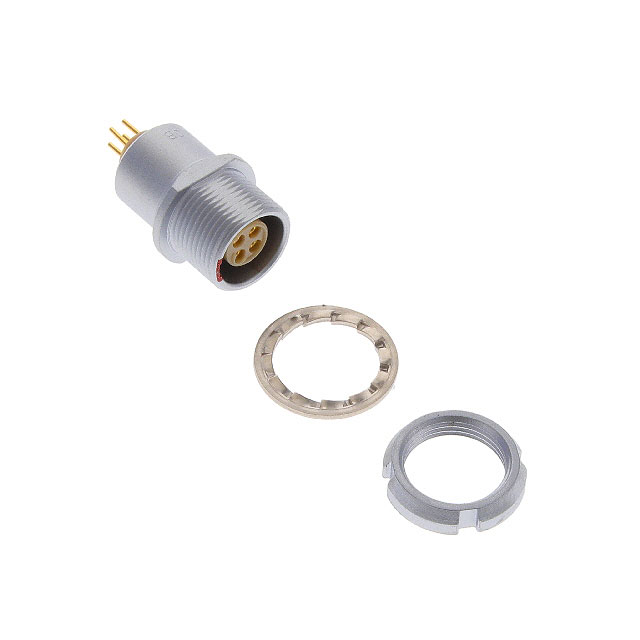

LEMO EEG.0B.304.CLN	Bronze	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected	Metal	Brass	Receptacle Female Sockets	Chrome	Panel Mount Through Hole	Bulkhead - Front Side Nut	Shielded	7 A	304	Push-Pull	Gold	UL94 V-0	G	4	-55 C	250 °C	Solder

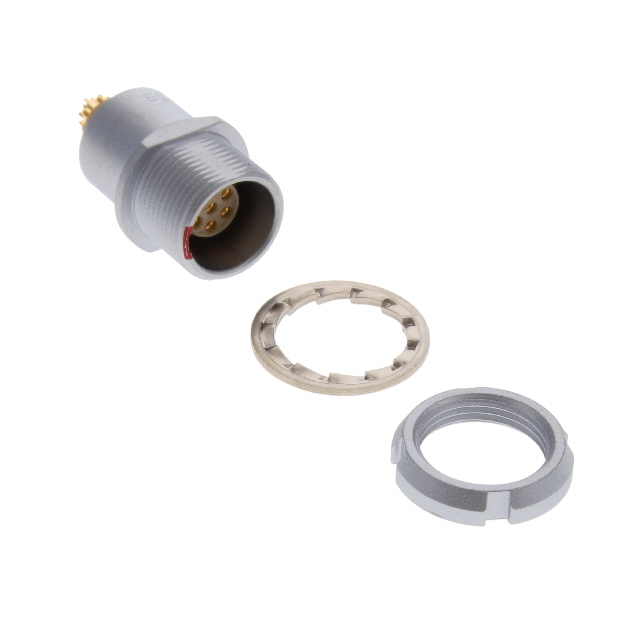

LEMO EEG.0B.307.CLL	Bronze	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected	Metal	Brass	Receptacle Female Sockets	Chrome	Panel Mount	Bulkhead - Front Side Nut	Shielded	2.5 A		Push-Pull	Gold	UL94 V-0	G	7	-55 C	250 °C		307
LEMO EEG.0B.303.CYM	Bronze	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected	Metal	Brass	Receptacle Female Sockets	Chrome	Panel Mount	Bulkhead - Front Side Nut	Shielded	8 A	303	Push-Pull	Gold	UL94 V-0	G		-55 C	250 °C	Crimp

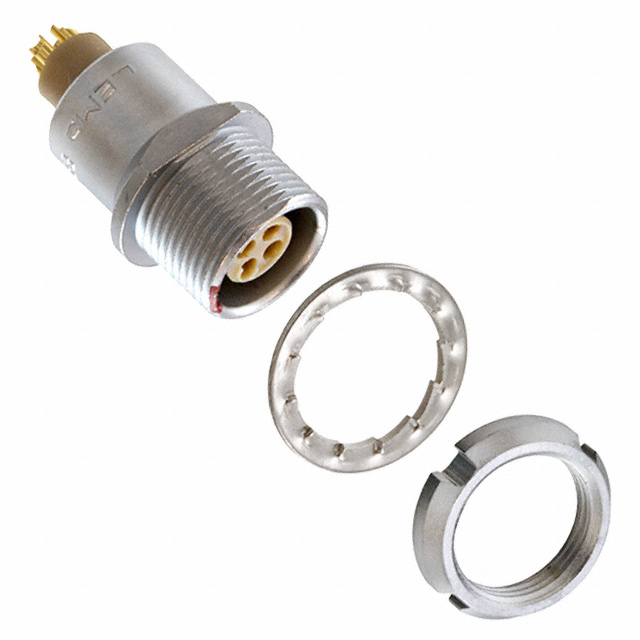

LEMO EEG.0B.304.CLL	Bronze	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected	Metal	Brass	Receptacle Female Sockets	Chrome	Panel Mount	Bulkhead - Front Side Nut	Shielded	7 A	304	Push-Pull	Gold	UL94 V-0	G	4	-55 C	250 °C
LEMO EEG.0B.305.CLV	Bronze	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected	Metal	Brass	Receptacle Female Sockets	Chrome	Panel Mount Right Angle Through Hole	Bulkhead - Front Side Nut	Shielded	6 A	305	Push-Pull	Gold	UL94 V-0	G	5	-55 C	250 °C	Solder
LEMO EEG.0B.306.CLV	Bronze	1.5 Ám	59 Áin	Polyetheretherketone (PEEK)	Silver	IP50 - Dust Protected	Metal	Brass	Receptacle Female Sockets	Chrome	Panel Mount Right Angle Through Hole	Bulkhead - Front Side Nut	Shielded	2.5 A	306	Push-Pull	Gold	UL94 V-0	G	6	-55 C	250 °C	Solder
