H2C1 Series

Manufacturer: Techflex

Catalog

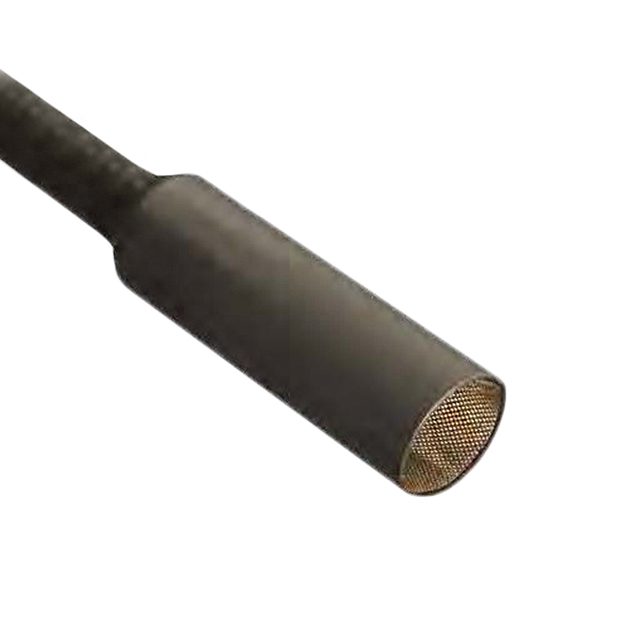

HEATSHRINK 1-1/2" X 4' BLACK

Part	Type	Shrink Temperature	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life	Length [x]	Length [x]	Recovered Wall Thickness	Recovered Wall Thickness	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]
Techflex H2C1.50BK	Tubing Flexible	200 °C	-55 C	135 °C	144 Months	4 ft	1.22 m	0.035 in	0.89 mm	Polyolefin (PO)	0.75 "	19.05 mm	Black	1	2	38.1 mm	1.5 in
Techflex H2C1.00BK	Tubing Flexible	200 °C	-55 C	135 °C	144 Months	4 ft	1.22 m	0.035 in	0.89 mm	Polyolefin (PO)	0.5 "	12.7 mm	Black	1	2	25.4 mm	1 in
