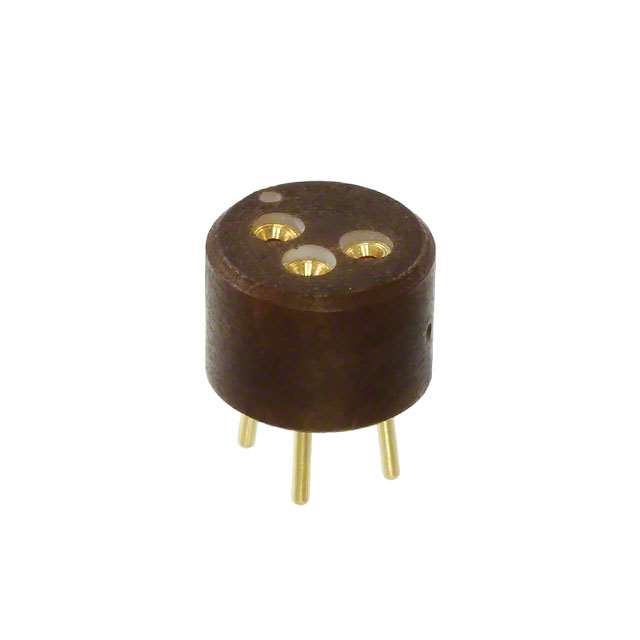

1437504 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN TRANSIST TO-3 3POS TIN
| Part | Number of Positions or Pins (Grid) | Features | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Type | Contact Finish - Post | Mounting Type | Contact Material - Mating | Contact Material - Post | Contact Finish - Mating | Material Flammability Rating | Contact Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3 | Closed Frame | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Solder | 200 µin | 5.08 µm | 5.08 µm | 200 µin | Transistor TO-3 | Tin | Chassis Mount | Beryllium Copper | Beryllium Copper | |||
TE Connectivity AMP Connectors | 3 | Closed Frame | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Solder | 30 µin | 0.76 µm | 0.76 Ám | 30 Áin | Transistor TO-3 | Gold | Chassis Mount | Beryllium Copper | Beryllium Copper | Gold | ||
TE Connectivity AMP Connectors | 4 | Closed Frame | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Solder | Transistor TO-5 | Gold | Through Hole | Beryllium Copper | Beryllium Copper | Gold | ||||||
 TE Connectivity AMP Connectors | 3 | Solder | Transistor TO-5 | Gold | ||||||||||||||
TE Connectivity AMP Connectors | 3 | Closed Frame | Diallyl Phthalate (DAP) | -55 C | 125 °C | Solder | 1.27 µm | 50 µin | Transistor TO-3 | Gold | Through Hole | Beryllium Copper | Beryllium Copper | Gold | UL94 V-0 | |||
TE Connectivity AMP Connectors | 3 | Closed Frame | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Solder | 50 µin | 1.27 µm | 1.27 µm | 50 µin | Transistor TO-3 | Gold | Chassis Mount | Beryllium Copper | Beryllium Copper | Gold | ||
TE Connectivity AMP Connectors | 3 | Closed Frame | Phenolic | -55 C | 125 °C | Solder | 100 µin | 2.54 µm | 5.08 µm | 200 µin | Transistor TO-3 | Copper | Chassis Mount | Beryllium Copper | Beryllium Copper | Tin-Lead | UL94 V-0 | 25 mOhm |
TE Connectivity AMP Connectors | 3 | Closed Frame | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Solder | Transistor TO-3 | Tin | Chassis Mount | Beryllium Copper | Beryllium Copper | |||||||
TE Connectivity AMP Connectors | 4 | Closed Frame | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Solder | Transistor TO-5 | Gold | Through Hole | Beryllium Copper | Beryllium Copper | Gold |
