GBC29D Series

Catalog

CONN HEADER SMD 58POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows [custom]	Number of Positions Loaded	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Number of Positions	Shrouding	Pitch - Mating	Pitch - Mating	Insulation Material	Insulation Color	Contact Finish - Mating	Mounting Type	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Shape	Style	Termination	Material Flammability Rating	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Type

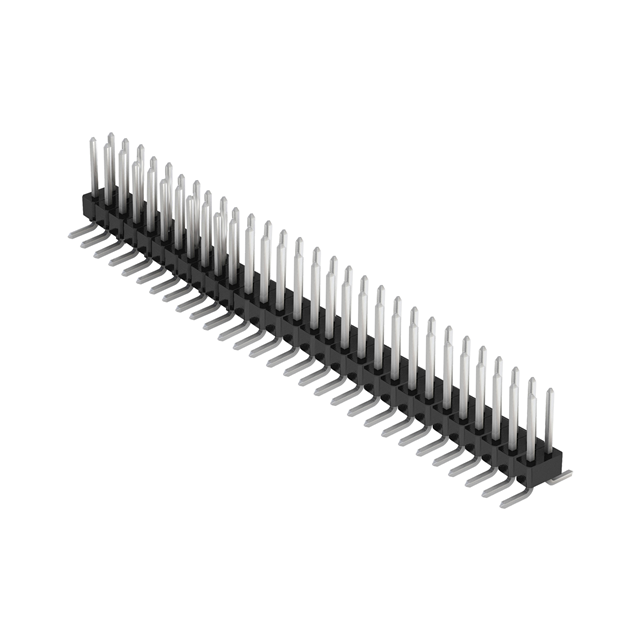

Sullins Connector Solutions GBC29DABN-M30	2.54 µm	100 µin	Phosphor Bronze	0.1 in	2.54 mm	0.25 µm	10 µin	2	All	Header Breakaway	150 °C	-65 ░C	Tin	58	Unshrouded	0.1 "	2.54 mm	Nylon 9T Polyamide (PA9T)	Black	Gold	Surface Mount	0.23 in	5.84 mm	Push-Pull	Square	Board to Board Cable	Solder	UL94 V-0	0.1 in	2.54 mm	3 A	Male Pin
