87916 Series

Catalog

CONN HEADER VERT 4POS 2.54MM

Part	Voltage Rating	Shrouding	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Finish - Mating	Contact Material	Number of Positions Loaded	Contact Type	Connector Type	Insulation Height	Insulation Height	Material Flammability Rating	Current Rating (Amps)	Mounting Type	Fastening Type	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Finish - Post

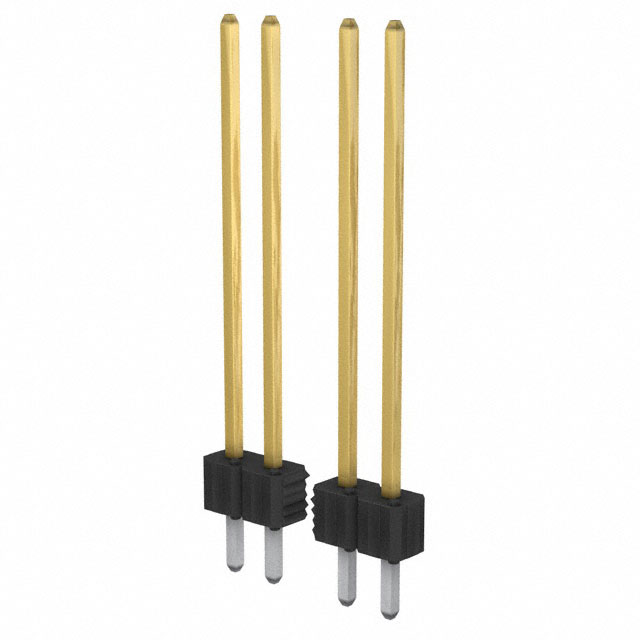

Amphenol ICC (FCI) 87916-104HLF	110 VDC	Unshrouded	0.1 in	2.54 mm	Black	1	30 Áin	0.76 Ám	Solder	Gold or Gold GXT™	Phosphor Bronze	All	Male Pin	Header	0.1 in	2.54 mm	UL94 V-0	5 A	Through Hole	Push-Pull	4	26.87 mm	1.058 in	0.128 "	3.25 mm	0.83 in	21.08 mm	Square
Amphenol ICC (FCI) 87916-132HLF	110 VDC	Unshrouded	0.1 in	2.54 mm	Black	1	30 Áin	0.76 Ám	Solder	Gold or Gold GXT™	Phosphor Bronze	All	Male Pin	Header	0.1 in	2.54 mm	UL94 V-0	5 A	Through Hole	Push-Pull		26.87 mm	1.058 in	0.128 "	3.25 mm	0.83 in	21.08 mm	Square

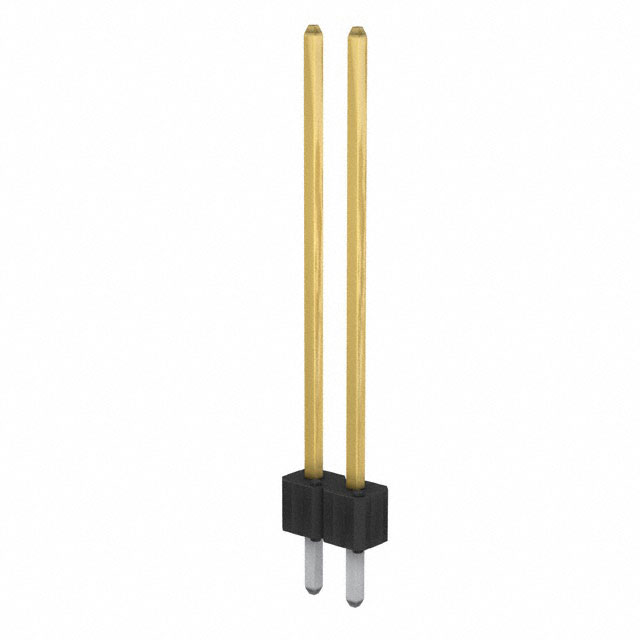

Amphenol ICC (FCI) 87916-602H	110 VDC	Unshrouded	0.1 in	2.54 mm	Black	1	30 Áin	0.76 Ám	Solder	Gold or Gold GXT™	Phosphor Bronze	All	Male Pin	Header	0.1 in	2.54 mm	UL94 V-0	5 A	Through Hole	Push-Pull	2	26.87 mm	1.058 in	0.128 "	3.25 mm	0.83 in	21.08 mm	Square

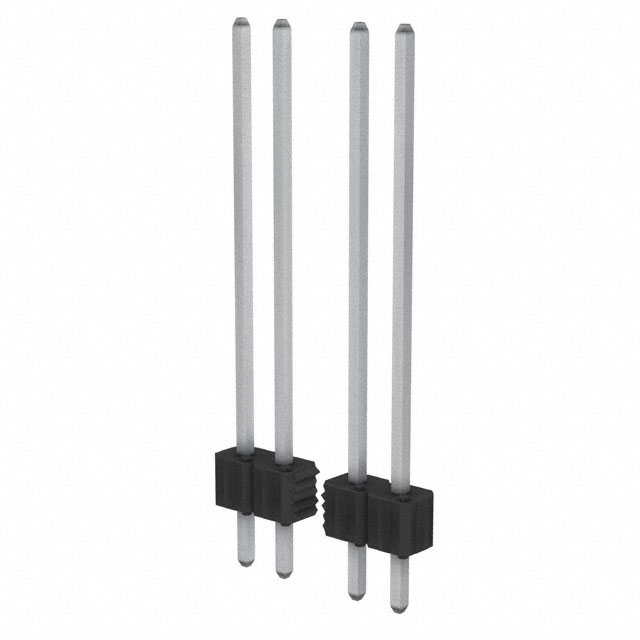

Amphenol ICC (FCI) 87916-415HLF	110 VDC	Unshrouded	0.1 in	2.54 mm	Black	1	100 çin	2.54 çm	Solder		Phosphor Bronze	All	Male Pin	Header	0.1 in	2.54 mm	UL94 V-0	5 A	Through Hole	Push-Pull	15	26.87 mm	1.058 in	0.128 "	3.25 mm	0.83 in	21.08 mm	Square	Tin
Amphenol ICC (FCI) 87916-105HLF	110 VDC	Unshrouded	0.1 in	2.54 mm	Black	1	30 Áin	0.76 Ám	Solder	Gold or Gold GXT™	Phosphor Bronze	All	Male Pin	Header	0.1 in	2.54 mm	UL94 V-0	5 A	Through Hole	Push-Pull		26.87 mm	1.058 in	0.128 "	3.25 mm	0.83 in	21.08 mm	Square
Amphenol ICC (FCI) 87916-410HLF	110 VDC	Unshrouded	0.1 in	2.54 mm	Black	1	100 çin	2.54 çm	Solder		Phosphor Bronze	All	Male Pin	Header	0.1 in	2.54 mm	UL94 V-0	5 A	Through Hole	Push-Pull	10	26.87 mm	1.058 in	0.128 "	3.25 mm	0.83 in	21.08 mm	Square	Tin
Amphenol ICC (FCI) 87916-133HLF	110 VDC	Unshrouded	0.1 in	2.54 mm	Black	1	30 Áin	0.76 Ám	Solder	Gold or Gold GXT™	Phosphor Bronze	All	Male Pin	Header	0.1 in	2.54 mm	UL94 V-0	5 A	Through Hole	Push-Pull	33	26.87 mm	1.058 in	0.128 "	3.25 mm	0.83 in	21.08 mm	Square
Amphenol ICC (FCI) 87916-117HLF	110 VDC	Unshrouded	0.1 in	2.54 mm	Black	1	30 Áin	0.76 Ám	Solder	Gold or Gold GXT™	Phosphor Bronze	All	Male Pin	Header	0.1 in	2.54 mm	UL94 V-0	5 A	Through Hole	Push-Pull		26.87 mm	1.058 in	0.128 "	3.25 mm	0.83 in	21.08 mm	Square
Amphenol ICC (FCI) 87916-204HLF	110 VDC	Unshrouded	0.1 in	2.54 mm	Black	1	15 µin	0.38 µm	Solder	Gold or Gold GXT™	Phosphor Bronze	All	Male Pin	Header	0.1 in	2.54 mm	UL94 V-0	5 A	Through Hole	Push-Pull	4	26.87 mm	1.058 in	0.128 "	3.25 mm	0.83 in	21.08 mm	Square
Amphenol ICC (FCI) 87916-134HLF	110 VDC	Unshrouded	0.1 in	2.54 mm	Black	1	30 Áin	0.76 Ám	Solder	Gold or Gold GXT™	Phosphor Bronze	All	Male Pin	Header	0.1 in	2.54 mm	UL94 V-0	5 A	Through Hole	Push-Pull	34	26.87 mm	1.058 in	0.128 "	3.25 mm	0.83 in	21.08 mm	Square
