SSI-LXH8080 Series

Catalog

LED 8MM GREEN DIFF PANEL MOUNT

Part	Lamp Color	Current	Lens Color	Lens Size [diameter]	Panel Cutout Dimensions	Panel Cutout Dimensions	Panel Cutout Shape	Viewing Angle	Type	Lens Transparency	Millicandela Rating	Wavelength - Peak	Voltage	Lens Style

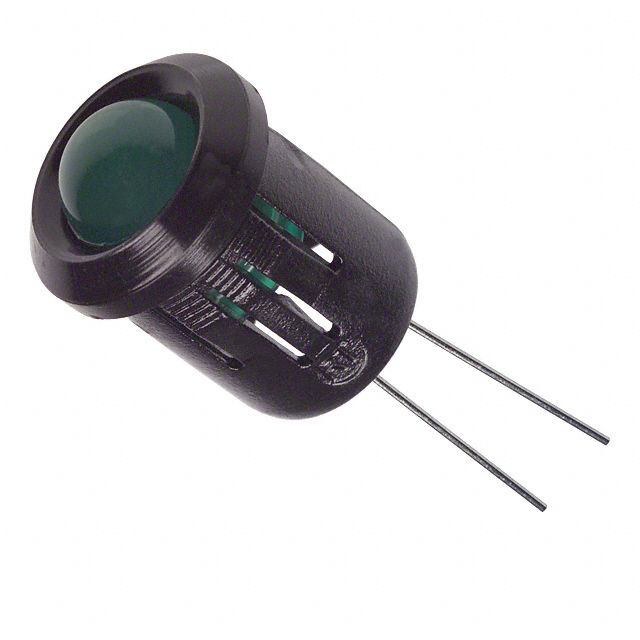

Lumex Opto/Components Inc. SSI-LXH8080GD	Green	25 mA	Green	8 mm Dia	0.47 in	11.94 mm	Round	60 °	LED	Diffused	30 mcd	565 nm	2.2 V	Round with Domed Top

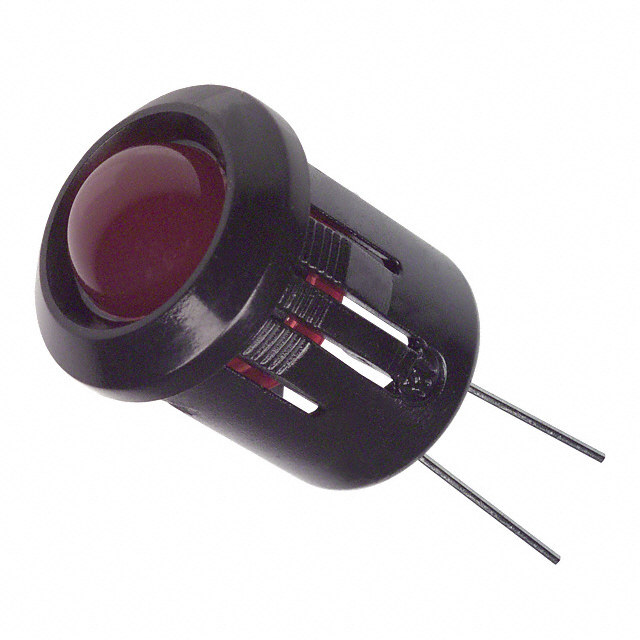

Lumex Opto/Components Inc. SSI-LXH8080ID	Red	30 mA	Red	8 mm Dia	0.47 in	11.94 mm	Round	60 °	LED	Diffused	40 mcd	635 nm	2 V	Round with Domed Top
Lumex Opto/Components Inc. SSI-LXH8080SRD	Red	30 mA	Red	8 mm Dia	0.47 in	11.94 mm	Round	60 °	LED	Diffused	80 mcd	660 nm	1.7 V	Round with Domed Top

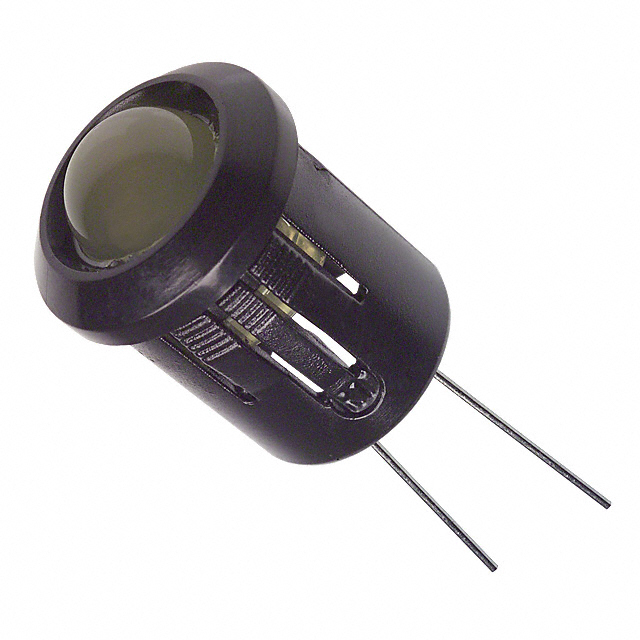

Lumex Opto/Components Inc. SSI-LXH8080YD	Yellow	30 mA	Yellow	8 mm Dia	0.47 in	11.94 mm	Round	60 °	LED	Diffused	30 mcd	585 nm	2.1 V	Round with Domed Top
