M300-FC3 Series

Catalog

5+5 POS. FEMALE DIL 22AWG CABLE ASSEMBLY, 450MM, SINGLE-END, JACKSCREWS

Part	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Contact Finish	Number of Rows [custom]	Length [x]	Length [x]	Number of Positions	Shielding	Pitch - Connector	Pitch - Connector	Length	Length	Length	Length [x]

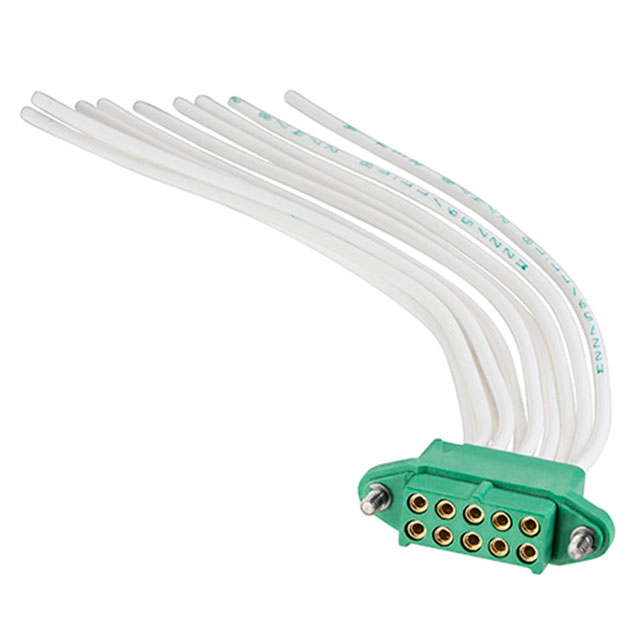

Harwin Inc. M300-FC31005F2-0450L	Polarizing Key Screw Lock	Socket to Individual Wire Leads	5.9 µin	0.15 µm	Crimp	Gold	2	0.45 m	1.48 '	10	Unshielded	0.118 in	3 mm
Harwin Inc. M300-FC31005F2-0150L	Polarizing Key Screw Lock	Socket to Individual Wire Leads	5.9 µin	0.15 µm	Crimp	Gold	2			10	Unshielded	0.118 in	3 mm	5.91 in	0.492 ft	150 mm

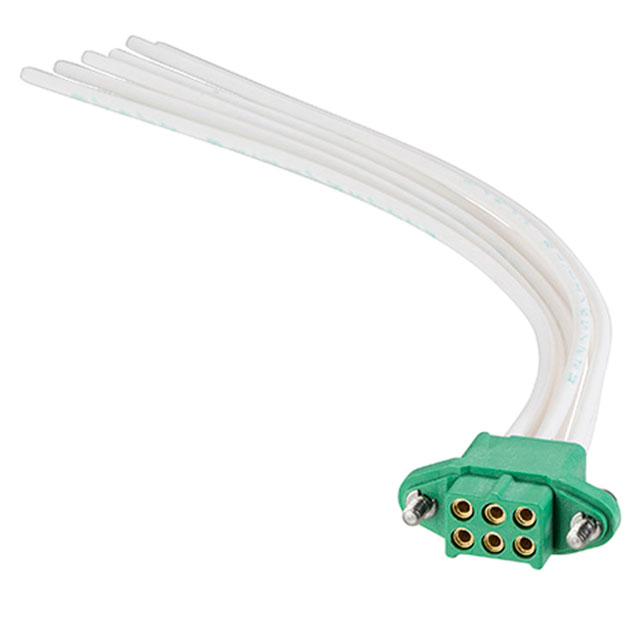

Harwin Inc. M300-FC30605F2-0300L	Polarizing Key Screw Lock	Socket to Individual Wire Leads	5.9 µin	0.15 µm	Crimp	Gold	2	300 mm	0.984 ft	6	Unshielded	0.118 in	3 mm				11.81 in
