POE-S Series
Manufacturer: Tycon Systems Inc.
Beta
⌘K
POE SPLITTER.48VDC 4 PAIR POE IN
| Part | Type | For Use With/Related Products | Current - Output | Power (Watts) - Per Port | Number of Ports | Voltage - Output | Approval Agency | Data Rate | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Efficiency | Mounting Type | Features | Compliance | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Min] | Voltage - Input [Max] | Input Connector | Output Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

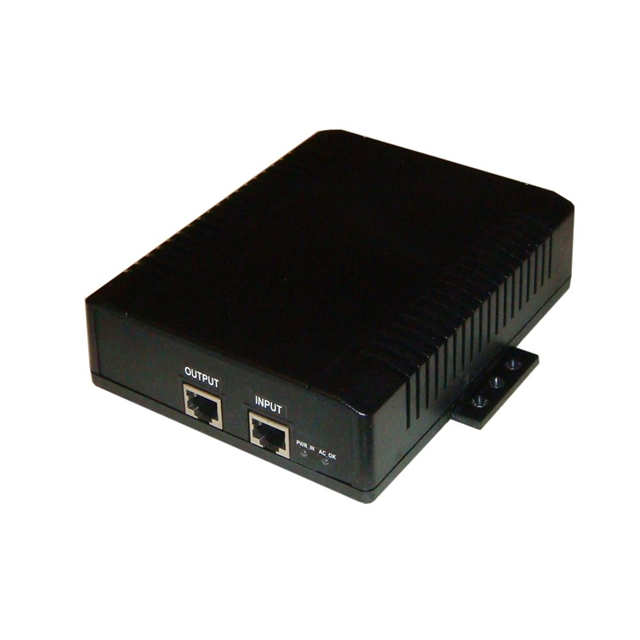

 Tycon Systems Inc. | PoE Splitter Splitter | Ethernet RJ45 | 3.34 A | 80 W | 1 | 24 V | CE FCC | 10 Mbps 100 Mbps 1000 Mbps | 5.9 " | 1.6 " | 40.6 mm | 139.7 mm | 149.9 mm | 5.4 in | 85 % | DIN Rail | OCP OVP SCP UVLO | IEEE802.3af IEEE802.3at | ||||||||

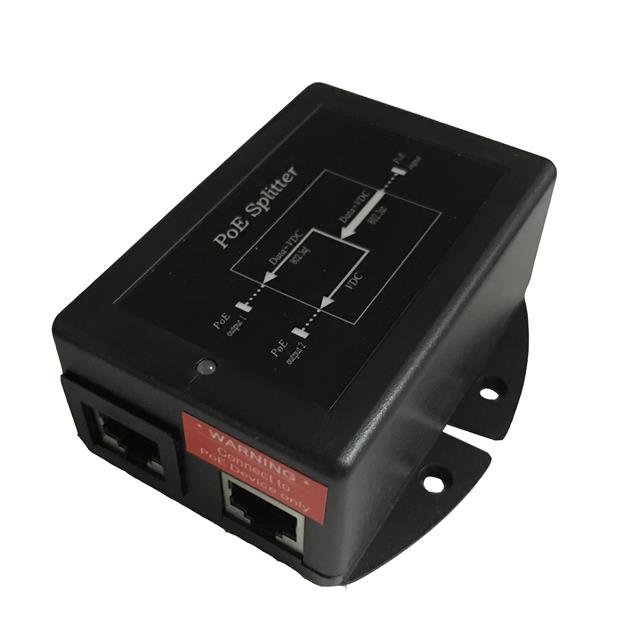

 Tycon Systems Inc. | PoE Splitter Splitter | Ethernet RJ45 | 32 W | 1 | FCC | 10 Mbps 100 Mbps 1000 Mbps | 3.3 " | 1.4 " | 83.8 mm | 3 " | Chassis Mount | OCP SCP | IEEE802.3af IEEE802.3at | 76.2 mm | 35.6 mm | 70 °C | -40 C | 40 V | 60 V | |||||||

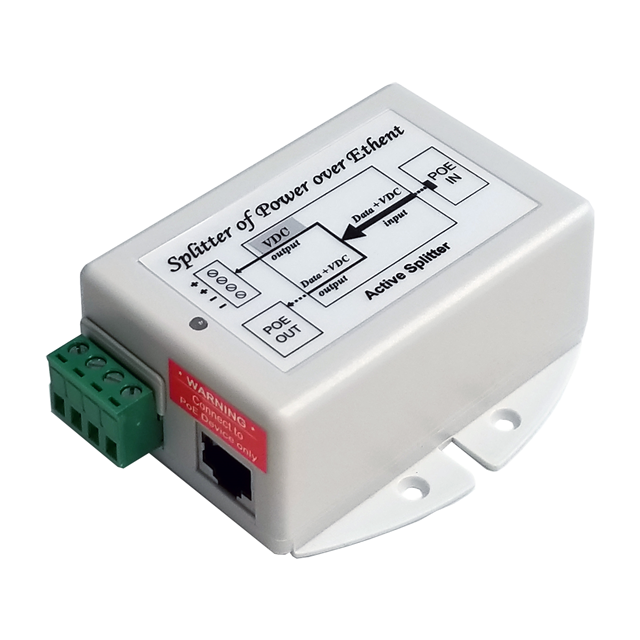

 Tycon Systems Inc. | PoE Splitter Splitter | Ethernet RJ45 | 830 mA | 20 W | 1 | 24 V | FCC | 10 Mbps 100 Mbps 1000 Mbps | 3.3 " | 1.4 " | 83.8 mm | 3.07 in | 85 % | Chassis Mount | OCP OVP SCP UVLO | IEEE802.3at | 78 mm | 35.6 mm | 65 °C | -30 ░C | RJ45 (Data Power) | RJ45 (Data Power) | ||||
Tycon Systems Inc. | PoE Splitter Splitter | Ethernet RJ45 | 1.67 A | 20 W | 1 | 12 V | FCC | 10 Mbps 100 Mbps 1000 Mbps | 3.3 " | 1.4 " | 83.8 mm | 3.07 in | 85 % | Chassis Mount | OCP OVP SCP UVLO | IEEE802.3at | 78 mm | 35.6 mm |
