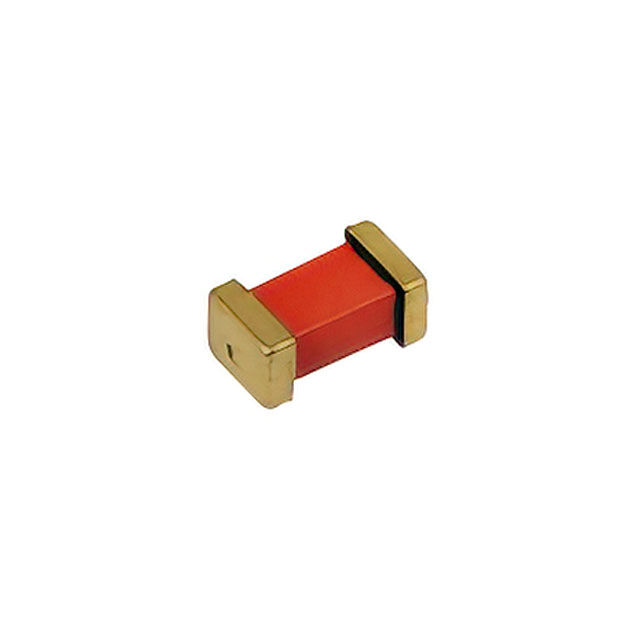

CWR26 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

CAP TANT 10UF 20% 35V 2915

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Package / Case	Package / Case	Features	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Grade	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Manufacturer Size Code	Mounting Type	ESR (Equivalent Series Resistance)	Type	Voltage - Rated	Failure Rate	Height - Seated (Max)	Height - Seated (Max) [Max] [z]
Vishay General Semiconductor - Diodes Division CWR26MK106MBHC\PR	-55 °C	125 °C	MIL-PRF-55365/13	2915	7338 Metric	High Reliability	10 µF	3.17 mm	0.125 "	Military	7.24 mm	0.15 "	3.81 mm	0.285 in	20 %	H	Surface Mount	500 mOhms	Conformal Coated	35 V	B (0.1%)
Vishay General Semiconductor - Diodes Division CWR26HK106KCFC\TR	-55 °C	125 °C	MIL-PRF-55365/13	2214	5634 Metric	High Reliability	10 µF			Military	5.59 mm	0.135 in	3.43 mm	0.22 in	10 %	F	Surface Mount	667 mOhm	Conformal Coated	15 V	C (0.01%)	2.16 mm	0.085 in
Vishay General Semiconductor - Diodes Division CWR26HH226JBGB\HR	-55 °C	125 °C		2711	6728 Metric	High Reliability	22 µF	3.17 mm	0.125 "		6.73 mm	0.11 in	2.79 mm	0.265 in	5 %	G	Surface Mount	275 mOhm	Conformal Coated	15 V	B (0.1%)
Vishay General Semiconductor - Diodes Division CWR26HC106KBFB	-55 °C	125 °C	MIL-PRF-55365/13	2214	5634 Metric	High Reliability	10 µF			Military	5.59 mm	0.135 in	3.43 mm	0.22 in	10 %	F	Surface Mount	667 mOhm	Conformal Coated	15 V	B (0.1%)	2.16 mm	0.085 in
Vishay General Semiconductor - Diodes Division CWR26HK106JCFZ	-55 °C	125 °C	MIL-PRF-55365/13	2214	5634 Metric	High Reliability	10 µF			Military	5.59 mm	0.135 in	3.43 mm	0.22 in	5 %	F	Surface Mount	667 mOhm	Conformal Coated	15 V	C (0.01%)	2.16 mm	0.085 in
Vishay General Semiconductor - Diodes Division CWR26MK106JBHB\HR	-55 °C	125 °C	MIL-PRF-55365/13	2915	7338 Metric	High Reliability	10 µF	3.17 mm	0.125 "	Military	7.24 mm	0.15 "	3.81 mm	0.285 in	5 %	H	Surface Mount	500 mOhms	Conformal Coated	35 V	B (0.1%)
Vishay General Semiconductor - Diodes Division CWR26HB336KBFZ\TR	-55 °C	125 °C	MIL-PRF-55365/13	2214	5634 Metric	High Reliability	33 ÁF			Military	5.59 mm	0.135 in	3.43 mm	0.22 in	10 %	F	Surface Mount	800 mOhm	Conformal Coated	15 V	B (0.1%)	2.16 mm	0.085 in
Vishay General Semiconductor - Diodes Division CWR26HH107JCHZ	-55 °C	125 °C	MIL-PRF-55365/13	2915	7338 Metric	High Reliability	100 µF	3.17 mm	0.125 "	Military	7.24 mm	0.15 "	3.81 mm	0.285 in	5 %	H	Surface Mount	180 mOhms	Conformal Coated	15 V	C (0.01%)
Vishay General Semiconductor - Diodes Division CWR26HH336JCFA\HR	-55 °C	125 °C	MIL-PRF-55365/13	2214	5634 Metric	High Reliability	33 ÁF			Military	5.59 mm	0.135 in	3.43 mm	0.22 in	5 %	F	Surface Mount	800 mOhm	Conformal Coated	15 V	C (0.01%)	2.16 mm	0.085 in
Vishay General Semiconductor - Diodes Division CWR26KB106KCGZ\HR	-55 °C	125 °C	MIL-PRF-55365/13	2711	6728 Metric	High Reliability	10 µF	3.17 mm	0.125 "	Military	6.73 mm	0.11 in	2.79 mm	0.265 in	10 %	G	Surface Mount		Conformal Coated	25 VDC	C (0.01%)
