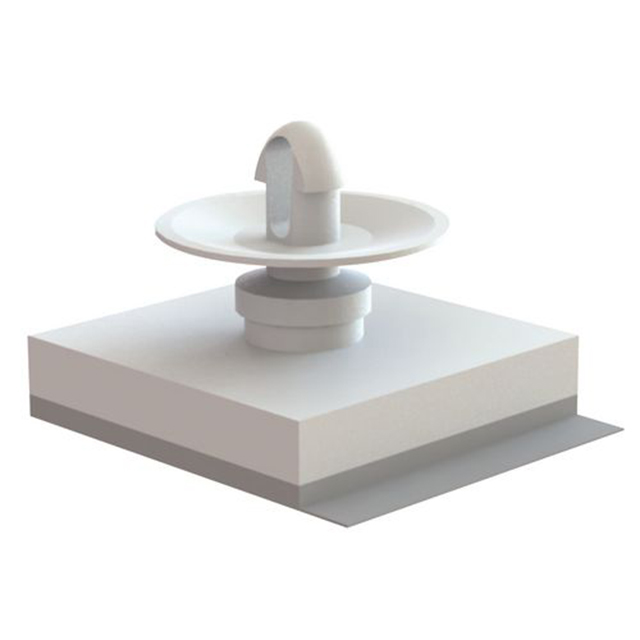

CCBSBT Series

Catalog

CUPPED CBS BASE TEARDROP 3/8"

Part	Holding Type	Material	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Type	Length - Overall [x]	Length - Overall [x]	Between Board Height	Between Board Height	Between Board Height	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Length - Overall	Length - Overall [custom]	Length - Overall [custom]
Essentra Components CCBSBT- 6-01A-RT	Snap Fit	Nylon	1.57 mm	0.062 in	0.0625 in	Adhesive	13.13 mm	0.517 in	0.375 in	9.53 mm	0.375 "	2.54 mm	0.1 in

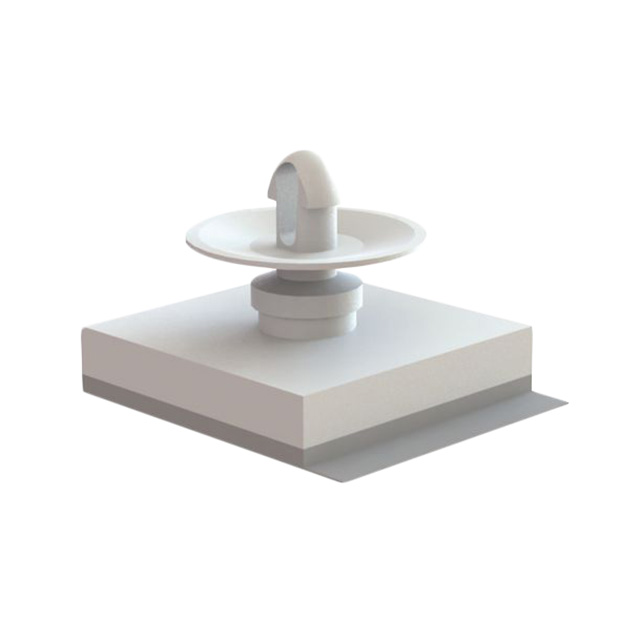

Essentra Components CCBSBT-10-01A	Snap Fit	Nylon	1.57 mm	0.062 in	0.0625 in	Adhesive		0.768 in	0.625 in	15.88 mm	5 8	2.54 mm	0.1 in	19.5 mm

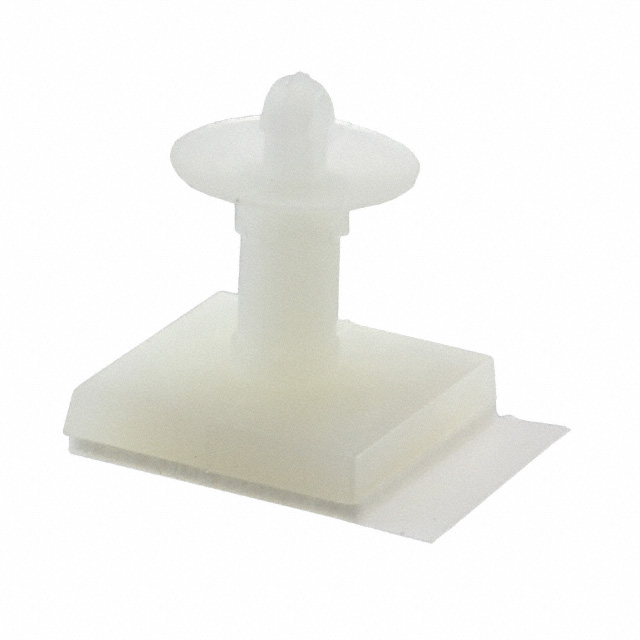

Essentra Components CCBSBT- 7-01A-RT	Snap Fit	Nylon	1.57 mm	0.062 in	0.0625 in	Adhesive			0.438 in	11.13 mm	0.4375 "	2.54 mm	0.1 in		14.86 mm	0.585 in
Essentra Components CCBSBT- 8-01A-RT	Snap Fit	Nylon	1.57 mm	0.062 in	0.0625 in	Adhesive	16.3 mm	0.642 in	0.5 in	12.7 mm	0.5 in	2.54 mm	0.1 in
