SMSD Series

Rectangular Cable Assemblies .100" Mini Mate Universal Double Row Discrete Wire Cable Assembly, Socket

Catalog

Rectangular Cable Assemblies .100" Mini Mate Universal Double Row Discrete Wire Cable Assembly, Socket

Part	Cable Termination	Features	Number of Rows	Length [x]	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Connector Type	Shielding	Contact Finish	Number of Positions	Color	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. SMSD-10-24-F-04.00-D-K-KDX	Crimp	Polarizing Key	2	4 "	0.333 ft	101.6 mm	0.1 in	2.54 mm	Socket to Socket	Unshielded	Gold	20

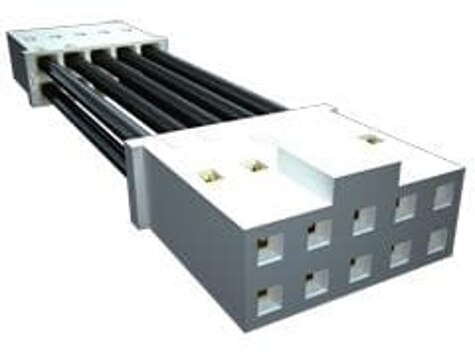

Samtec Inc. SMSD-07-24-F-08.00-S	Crimp		2				0.1 in	2.54 mm	Socket to Individual Wire Leads	Unshielded	Gold	14
Samtec Inc. SMSD-10-24-F-12.00-S-K	Crimp	Polarizing Key	2				0.1 in	2.54 mm	Socket to Socket	Unshielded	Gold	20
Samtec Inc. SMSD-20-24C-L-36.00-S	Crimp		2				0.1 in	2.54 mm	Socket to Individual Wire Leads	Unshielded	Gold	40	Individual Multiple	10 Áin	0.25 Ám

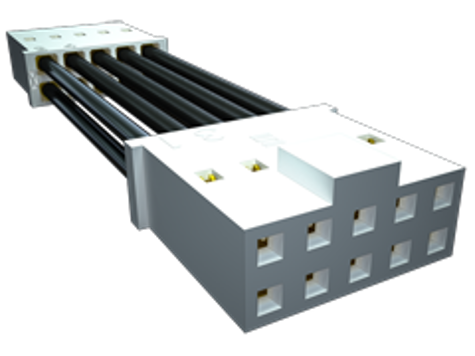

Samtec Inc. SMSD-20-24-F-06.00-D-KUS	Crimp	Polarizing Key	2				0.1 in	2.54 mm	Socket to Socket	Unshielded	Gold	40
Samtec Inc. SMSD-10-24-F-06.00-D-KUS	Crimp	Polarizing Key	2				0.1 in	2.54 mm	Socket to Socket	Unshielded	Gold	20
Samtec Inc. SMSD-10-24-F-18.00-S	Crimp		2				0.1 in	2.54 mm	Socket to Individual Wire Leads	Unshielded	Gold	20
Samtec Inc. SMSD-10-24C-F-24.00-D-KUS	Crimp	Polarizing Key	2		2 '	609.6 mm	0.1 in	2.54 mm	Socket to Socket	Unshielded	Gold	20	Individual Multiple
Samtec Inc. SMSD-20-24-L-10.00-D-KDS	Crimp	Polarizing Key	2				0.1 in	2.54 mm	Socket to Socket	Unshielded	Gold	40		10 Áin	0.25 Ám
Samtec Inc. SMSD-10-26C-F-30.00-S-K	Crimp	Polarizing Key	2				0.1 in	2.54 mm	Socket to Socket	Unshielded	Gold	20	Individual Multiple
