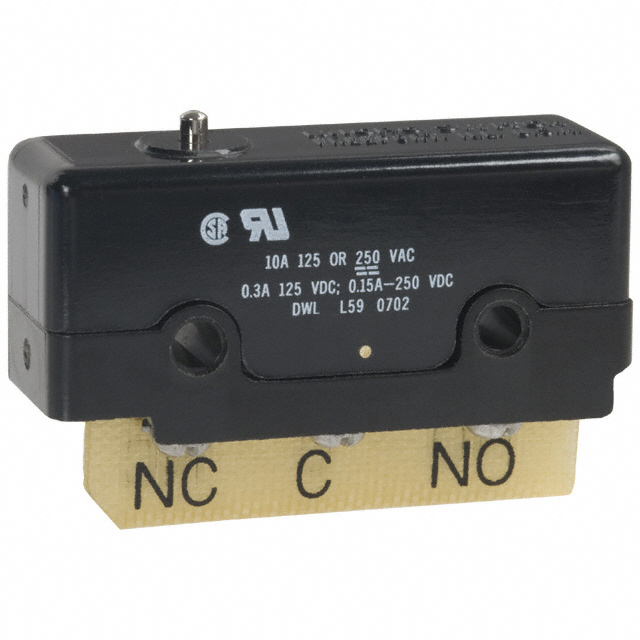

DT-2RA Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION DPDT 10A 125V
| Part | Pretravel | Pretravel | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Operating Position | Operating Position | Current Rating (Amps) | Circuit | Mounting Type | Operating Force [Max] | Operating Force [Min] | Voltage Rating - DC | Differential Travel | Differential Travel | Release Force | Overtravel | Overtravel | Voltage Rating - AC | Actuator Type | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 0.075 in | 1.9 mm | 85 °C | -55 °C | Screw Terminal | 15.6 mm | 0.615 in | 10 A 300 mA | DPDT | Chassis Mount | 567 gf | 340 gf | 125 VDC | 1.5 mm | 0.06 " | 57 gf | 0.13 mm | 0.005 in | 125 V | Round (Pin Plunger) | On-Mom |
