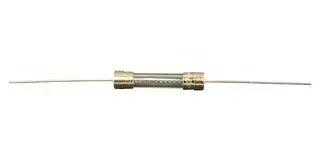

FUSE 250V FA PT 3AG Pb-FREE .100A
Description
AI
The 3AG Fast-Acting Fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
Beta
⌘K
FUSE 250V FA PT 3AG Pb-FREE .100A
FUSE 250V FA PT 3AG Pb-FREE .100A
| Part | DC Cold Resistance | Breaking Capacity @ Rated Voltage | Response Time | Package / Case [y] | Package / Case | Package / Case [x] | Approval Agency | Voltage Rating - AC | Melting I²t | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Fuse Type | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 11.28 Ohms | 35 A | Fast Blow | 3AB 3AG | 0.25 " | CE CSA UL | 250 V | 0.00102 | -55 C | 125 °C | Through Hole | Cartridge Glass | 100 mA | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | |
LITTELFUSE | 35 A | Fast Blow | 3AB 3AG | 0.25 " | CE CSA UL | 250 V | 0.00102 | -55 C | 125 °C | Through Hole | Cartridge Glass | 100 mA | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | ||
 LITTELFUSE | 35 A | Fast Blow | 3AB 3AG | 0.25 " | CE CSA UL | 250 V | 0.00102 | -55 C | 125 °C | Through Hole | Cartridge Glass | 100 mA | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in |
