D37P33 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

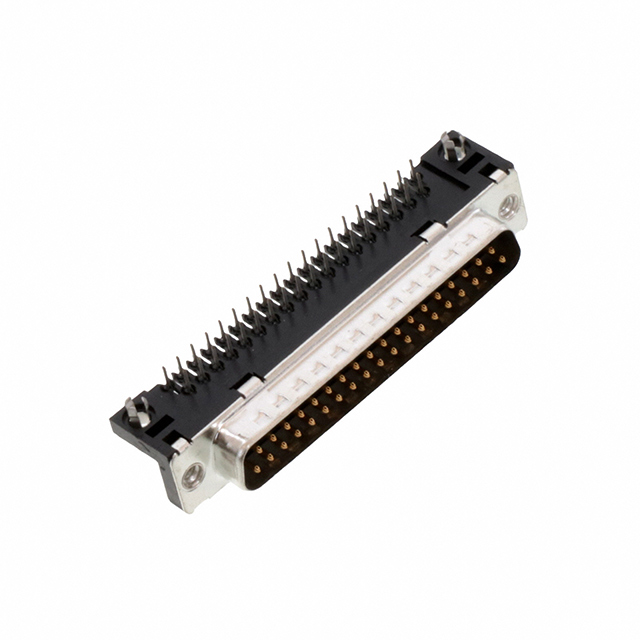

CONN D-SUB PLG 37P R/A SLD PASTE
| Part | Mounting Type | Backset Spacing | Backset Spacing | Contact Type | Material Flammability Rating | Connector Style | Connector Type | Number of Positions | Shell Material, Finish | Dielectric Material | Termination | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Contact Finish | Color | Flange Feature | Contact Material | Features | Number of Rows | Shell Size, Connector Layout | Operating Temperature | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Through Hole Right Angle | 8.08 mm | 0.318 " | Signal | UL94 V-0 | D-Sub | Male Pins Plug | 37 | Nickel Plated Steel | Glass Filled Nylon Polyamide (PA) | Solder Paste | 300 VDC | 0.76 Ám | 30 Áin | 5 A | Gold | Black | Female Screwlock (4-40) Mating Side | Brass | Board Guide Grounding Indents Mounting Brackets | 2 | 4 (DC C) | -55 °C | |||
 Amphenol ICC (FCI) | Through Hole Right Angle | 8.08 mm | 0.318 " | Signal | UL94 V-0 | D-Sub | Male Pins Plug | 37 | Steel Tin-Nickel Plated | Thermoplastic | Solder | 300 VDC | 5 A | Gold | Black | Housing/Shell (M3) | Brass | Board Lock Grounding Indents Mounting Brackets | 2 | 4 (DC C) | -55 °C | 125 °C | Flash | |||
Amphenol ICC (FCI) | Through Hole Right Angle | 8.08 mm | 0.318 " | Signal | UL94 V-0 | D-Sub | Male Pins Plug | 37 | Thermoplastic | Solder | 300 VDC | 0.76 Ám | 30 Áin | 5 A | Gold or Gold GXT™ | Black | Housing/Shell (M3) | Brass | Board Lock Grounding Indents Mounting Brackets | 2 | 4 (DC C) | -55 °C | 125 °C | |||
Amphenol ICC (FCI) | Through Hole Right Angle | 8.08 mm | 0.318 " | Signal | UL94 V-0 | D-Sub | Male Pins Plug | 37 | Thermoplastic | Solder | 300 VDC | 5 A | Gold | Black | Housing/Shell (Unthreaded) | Brass | Grounding Indents | 2 | 4 (DC C) | -55 °C | 125 °C | Flash | ||||
Amphenol ICC (FCI) | Through Hole Right Angle | 8.08 mm | 0.318 " | Signal | UL94 V-0 | D-Sub | Male Pins Plug | 37 | Polybutylene Terephthalate (PBT) | Solder | 300 VDC | 5 A | Gold | Black | Housing/Shell (4-40) | Brass | Board Lock Grounding Indents Mounting Brackets | 2 | 4 (DC C) | -55 °C | 125 °C | Flash | ||||
Amphenol ICC (FCI) | Through Hole Right Angle | 8.08 mm | 0.318 " | Signal | UL94 V-0 | D-Sub | Male Pins Plug | 37 | Nickel Plated Steel | Glass Filled Nylon Polyamide (PA) | Solder Paste | 300 VDC | 0.76 Ám | 30 Áin | 5 A | Gold | Black | Housing/Shell (4-40) | Brass | Board Guide Grounding Indents Mounting Brackets | 2 | 4 (DC C) | -55 °C | |||
Amphenol ICC (FCI) | Through Hole Right Angle | 8.08 mm | 0.318 " | Signal | UL94 V-0 | D-Sub | Male Pins Plug | 37 | Steel Tin-Nickel Plated | Thermoplastic | Solder | 300 VDC | 0.76 Ám | 30 Áin | 5 A | Gold | Black | Housing/Shell (Unthreaded) | Brass | Grounding Indents | 2 | 4 (DC C) | -55 °C | 125 °C | ||
 Amphenol ICC (FCI) | Through Hole Right Angle | 8.08 mm | 0.318 " | Signal | UL94 V-0 | D-Sub | Male Pins Plug | 37 | Steel Tin-Nickel Plated | Polybutylene Terephthalate (PBT) | Solder | 300 VDC | 5 A | Gold | Black | Housing/Shell (4-40) | Brass | Board Lock Grounding Indents Mounting Brackets | 2 | 4 (DC C) | -55 °C | 125 °C | Flash |
