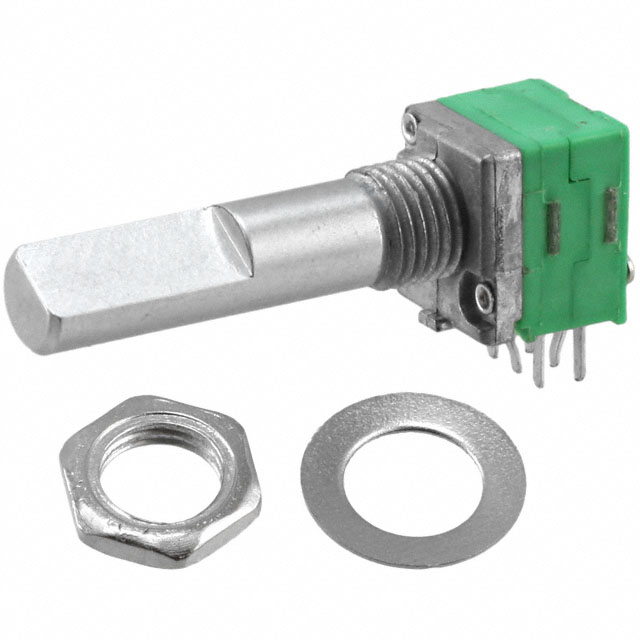

P092N Series
Manufacturer: TT Electronics/BI
Beta
⌘K
POTENTIOMETERS 9MM ROTARY PANEL POTENTIOMETER
| Part | Size - Body [y] | Size - Body [y] | Size - Body [x] | Size - Body [x] | Number of Turns | Resistive Material | Mounting Type | Tolerance | Bushing Thread | Built in Switch | Rotation | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Actuator Type | Termination Style | Number of Gangs | Power (Watts) | Power (Watts) | Resistance (Ohms) | Actuator Length [x] | Actuator Length [x] | Taper | Adjustment Type | Power (Watts) | Resistance (Ohms) | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | 1 | Conductive Plastic | Panel Mount | 20 % | M7 x 0.75 | None | 300 ░ | 6 mm | 0.236 in | Knurled and Slotted | Board Locks PC Pins | 2 | 1/40 | 25 mW | 20 kOhms | 0.787 in | 20 mm | Logarithmic | Side Adjustment | |||
TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | 1 | Conductive Plastic | Panel Mount | 20 % | M7 x 0.75 | None | 300 ░ | 6 mm | 0.236 in | Flatted | Board Locks PC Pins | 2 | 1/40 | 25 mW | 20 kOhms | 0.591 in | 15 mm | Logarithmic | Side Adjustment | |||
TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | 1 | Conductive Plastic | Panel Mount | 20 % | M7 x 0.75 | None | 300 ░ | 6 mm | 0.236 in | Flatted | Board Locks PC Pins | 2 | 50 mW | 20 kOhms | 0.984 in | 25 mm | Linear | Side Adjustment | 0.05 W | |||
TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | 1 | Conductive Plastic | Panel Mount | 20 % | M7 x 0.75 | None | 300 ░ | 6 mm | 0.236 in | Knurled and Slotted | Board Locks PC Pins | 2 | 1/40 | 25 mW | 0.591 in | 15 mm | Logarithmic | Side Adjustment | 10k | |||
TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | 1 | Conductive Plastic | Panel Mount | 20 % | M7 x 0.75 | None | 300 ░ | 6 mm | 0.236 in | Knurled and Slotted | Board Locks PC Pins | 2 | 1/40 | 25 mW | 5 kOhms | 0.591 in | 15 mm | Logarithmic | Side Adjustment | |||
TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | 1 | Conductive Plastic | Panel Mount | 20 % | M7 x 0.75 | None | 300 ░ | 6 mm | 0.236 in | Flatted | Board Locks PC Pins | 2 | 50 mW | 0.984 in | 25 mm | Linear | Side Adjustment | 0.05 W | 100k | |||
 TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | 1 | Conductive Plastic | Panel Mount | 20 % | M7 x 0.75 | None | 300 ░ | 6 mm | 0.236 in | Flatted | Board Locks PC Pins | 2 | 50 mW | 0.984 in | 25 mm | Linear | Side Adjustment | 0.05 W | 10k | |||
TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | 1 | Conductive Plastic | Panel Mount | 20 % | M7 x 0.75 | None | 300 ░ | 6 mm | 0.236 in | Knurled and Slotted | Board Locks PC Pins | 2 | 50 mW | 0.591 in | 15 mm | Linear | Side Adjustment | 0.05 W | 100k | |||
TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | 1 | Conductive Plastic | Panel Mount | 20 % | M7 x 0.75 | None | 300 ░ | 6 mm | 0.236 in | Flatted | Board Locks PC Pins | 2 | 1/40 | 25 mW | 0.787 in | 20 mm | Reverse Logarithmic | Side Adjustment | 50 kOhms | |||
TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | 1 | Conductive Plastic | Panel Mount | 20 % | M7 x 0.75 | None | 300 ░ | 6 mm | 0.236 in | Flatted | Board Locks PC Pins | 2 | 1/40 | 25 mW | 0.591 in | 15 mm | Reverse Logarithmic | Side Adjustment | 50 kOhms |
