MC74VHC1G04 Series

Single Inverter

Catalog

Single Inverter

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Inputs	Logic Type	Supplier Device Package	Supplier Device Package	Supplier Device Package	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Max Propagation Delay @ V, Max CL	Current - Quiescent (Max) [Max]	Package / Case	Number of Circuits	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Mounting Type	Supplier Device Package	Qualification	Grade
ON Semiconductor MC74VHC1G04DFT2G	5.5 V	2 V	-55 °C	125 °C	8 mA	8 mA	1	Inverter	SC-88A	SOT-353	SC-70-5	0.5 V	1.65 V	7.5 ns	1 çA	5-TSSOP SC-70-5 SOT-353	1	3.85 V	1.5 V	Surface Mount
ON Semiconductor MC74VHC1G04DFT2G-L22038	5.5 V	2 V	-55 °C	125 °C	8 mA	8 mA	1	Inverter	SC-88A	SOT-353	SC-70-5	0.5 V	1.65 V	7.5 ns	1 çA	5-TSSOP SC-70-5 SOT-353	1	3.85 V	1.5 V	Surface Mount
ON Semiconductor MC74VHC1G04P5T5G-L22088	5.5 V	2 V	-55 °C	125 °C	8 mA	8 mA	1	Inverter				0.5 V	1.65 V	7.5 ns	1 çA	SOT-953	1	3.85 V	1.5 V	Surface Mount	SOT-953
ON Semiconductor MC74VHC1G04DFT2G-Q	5.5 V	2 V	-55 °C	125 °C	8 mA	8 mA	1	Inverter	SC-88A	SOT-353	SC-70-5	0.5 V	1.65 V	7.5 ns	1 çA	5-TSSOP SC-70-5 SOT-353	1	3.85 V	1.5 V	Surface Mount		AEC-Q100	Automotive

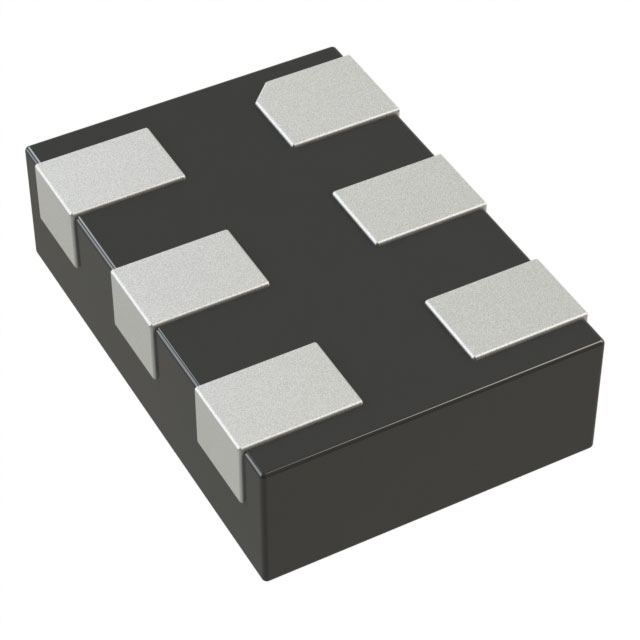

ON Semiconductor MC74VHC1G04MU2TCG	5.5 V	2 V	-55 °C	125 °C	8 mA	8 mA	1	Inverter				0.5 V	1.65 V	7.5 ns	1 çA	6-UFDFN	1	3.85 V	1.5 V	Surface Mount	6-UDFN (1.2x1)
ON Semiconductor MC74VHC1G04MU1TCG	5.5 V	2 V	-55 °C	125 °C	8 mA	8 mA	1	Inverter				0.5 V	1.65 V	7.5 ns	1 çA	6-UFDFN	1	3.85 V	1.5 V	Surface Mount	6-UDFN (1.45x1)
ON Semiconductor MC74VHC1G04DTT1	5.5 V	2 V	-55 °C	125 °C	8 mA	8 mA	1	Inverter				0.5 V	1.65 V	7.5 ns	1 çA	SOT-23-5 Thin TSOT-23-5	1	3.85 V	1.5 V	Surface Mount	5-TSOP
ON Semiconductor MC74VHC1G04P5T5G	5.5 V	2 V	-55 °C	125 °C	8 mA	8 mA	1	Inverter				0.5 V	1.65 V	7.5 ns	1 çA	SOT-953	1	3.85 V	1.5 V	Surface Mount	SOT-953
ON Semiconductor MC74VHC1G04DBVT1G	5.5 V	2 V	-55 °C	125 °C	8 mA	8 mA	1	Inverter				0.5 V	1.65 V	7.5 ns	1 çA	SC-74A SOT-753	1	3.85 V	1.5 V	Surface Mount	SC-74A
ON Semiconductor MC74VHC1G04DFT1	5.5 V	2 V	-55 °C	125 °C	8 mA	8 mA	1	Inverter	SC-88A	SOT-353	SC-70-5	0.5 V	1.65 V	7.5 ns	1 çA	5-TSSOP SC-70-5 SOT-353	1	3.85 V	1.5 V	Surface Mount

Catalog

Single Inverter

Key Features

• Designed for 2.0 V to 5.5 V VCC Operation

• High Speed: tPD= 3.5ns (Typ) at Vcc= 5V

• Low Power Dissipation: ICC= 1µA (Max) at TA= 25°C

• Power Down Protection Provided on Inputs

• Balanced Propagation Delays

• Pin and Function Compatible with Other Standard Logic Families

• Chip Complexity: FETs = ≤ 100

• Pb-Free Packages are Available

Description

The MC74VHC1G04 is an advanced high speed CMOS inverter fabricated with silicon gate CMOS technology.The internal circuit is composed of multiple stages, including a buffer output which provides high noise immunity and stable output.The MC74VHC1G04 input structure provides protection when voltages up to 5.5 V are applied, regardless of the supply voltage. This allows the MC74VHC1G04 to be used to interface 5 V circuits to 3 V circuits.
