325-098 Series
Manufacturer: EDAC Inc.
Beta
⌘K

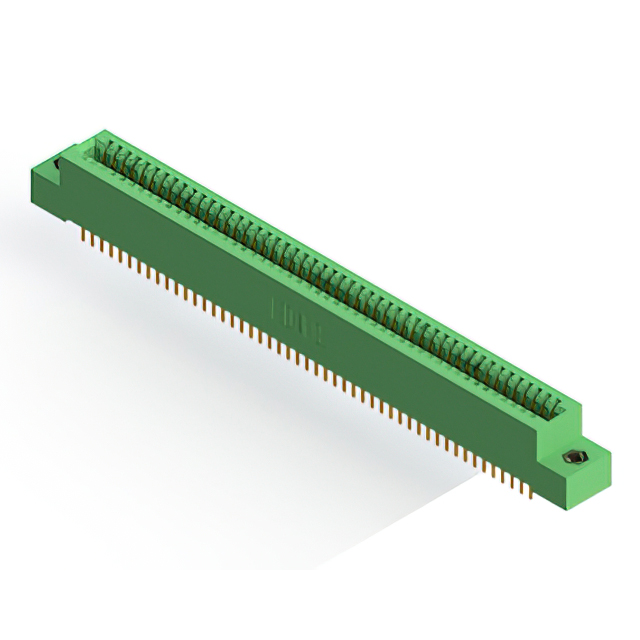

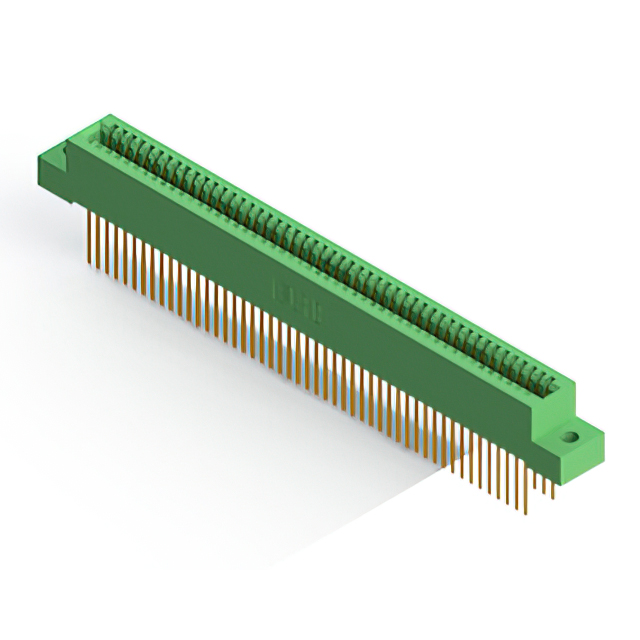

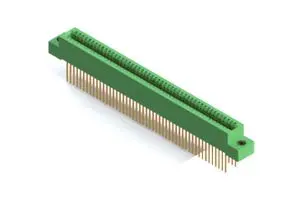

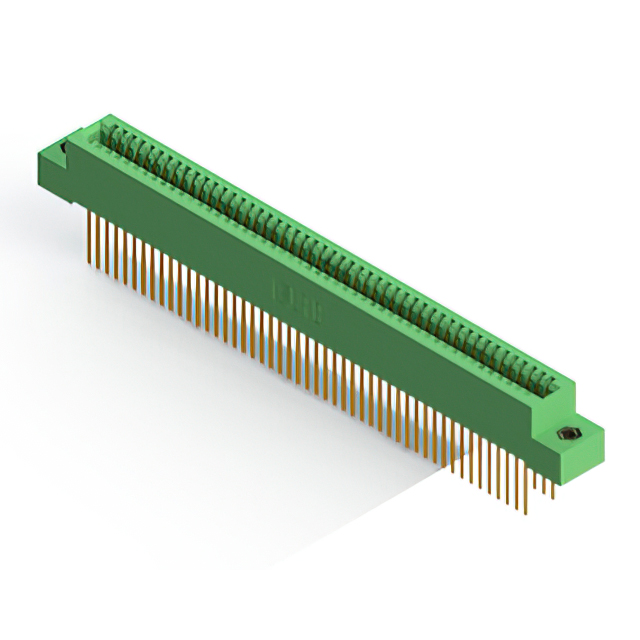

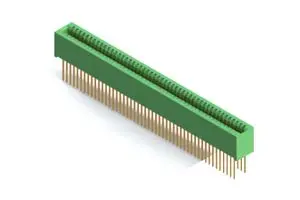

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 98 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows [custom] | Material - Insulation | Termination | Card Type | Card Thickness | Card Thickness | Number of Positions | Read Out | Contact Finish | Pitch | Pitch | Number of Positions/Bay/Row | Color | Contact Type | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Wire Wrap | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 98 | Dual | Gold | 0.1 " | 2.54 mm | 49 | Green | Cantilever | Female | -65 ░C | 125 °C | Through Hole | Copper Alloy | 0.25 Ám | 10 Áin | 2 | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Solder | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 98 | Dual | Gold | 0.1 " | 2.54 mm | 49 | Green | Cantilever | Female | -65 ░C | 125 °C | Through Hole | Copper Alloy | 0.25 Ám | 10 Áin | 2 | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Wire Wrap | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 98 | Dual | Gold | 0.1 " | 2.54 mm | 49 | Green | Cantilever | Female | -65 ░C | 125 °C | Through Hole | Copper Alloy | 0.25 Ám | 10 Áin | 2 | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Solder | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 98 | Dual | Gold | 0.1 " | 2.54 mm | 49 | Green | Cantilever | Female | -65 ░C | 125 °C | Through Hole | Copper Alloy | 0.25 Ám | 10 Áin | 2 | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Solder | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 98 | Dual | Gold | 0.1 " | 2.54 mm | 49 | Green | Cantilever | Female | -65 ░C | 125 °C | Through Hole | Copper Alloy | 0.25 Ám | 10 Áin | 2 | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Solder | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 98 | Dual | Gold | 0.1 " | 2.54 mm | 49 | Green | Cantilever | Female | -65 ░C | 125 °C | Through Hole | Copper Alloy | 0.25 Ám | 10 Áin | 2 | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Solder Eyelet(s) | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 98 | Dual | Gold | 0.1 " | 2.54 mm | 49 | Green | Cantilever | Female | -65 ░C | 125 °C | Through Hole | Copper Alloy | 0.25 Ám | 10 Áin | 2 |
