KFB0612 Series
Manufacturer: Delta Electronics
Beta
⌘K

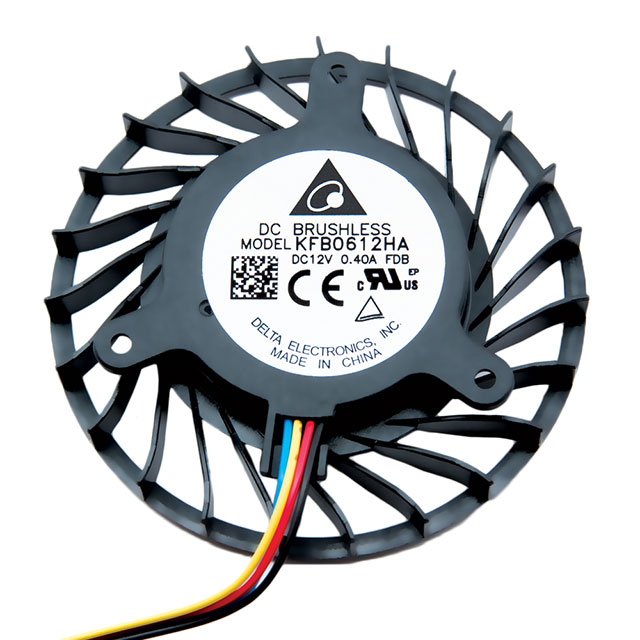

FAN IMP MTR FRAMEL 60X12MM 12VDC
| Part | Lifetime @ Temp. | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Current Rating (Amps) | Termination | Size / Dimension | Size / Dimension [diameter] | RPM | Air Flow | Air Flow | Width [y] | Ingress Protection | Static Pressure | Static Pressure | Power (Watts) | Features | Weight | Weight | Voltage - Rated | Fan Type | Approval Agency | Noise | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 40 °C 50000 Hrs | Plastic | 7 V | 13.6 VDC | Plastic | 150 mA | 4 Wire Leads | Round | 60 mm | 3300 RPM | 9.2 CFM | 0.258 m³/min | 12 mm | IP55 - Dust Protected Water Resistant | 157.9 Pa | 0.634 in H2O | 1.8 W | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 27.67 g | 0.061 lb | 12 VDC | Frameless Motorized Impellers | CE cURus TUV | 36.7 dB(A) | Ball |
