1825198 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

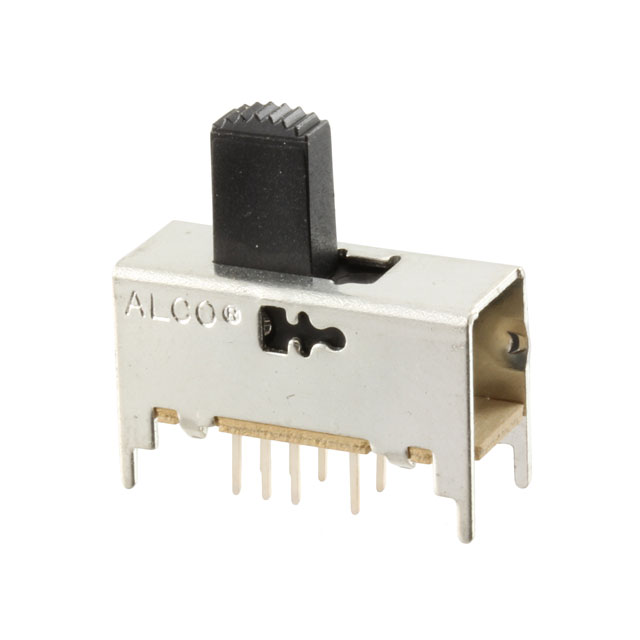

SWITCH SLIDE DP3T 300MA 125V
| Part | Actuator Type | Termination Style | Electrical Life | Switch Travel | Operating Force | Voltage Rating - AC | Current Rating (Amps) | Contact Finish | Actuator Material | Actuator Length [x] | Contact Timing | Circuit | Contact Material | Switch Function | Features | Mechanical Life | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Standard | PC Pin | 15000 Cycles | 2 mm | 600 gf | 125 V | 300 mA | Silver | Nylon 6/6 Polyamide (PA66) | 10.39 mm | Shorting | DP3T | Copper Alloy | On-On-On | Epoxy Sealed Terminals | 15000 Cycles | Through Hole | 85 °C | -20 C |
