M3244 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

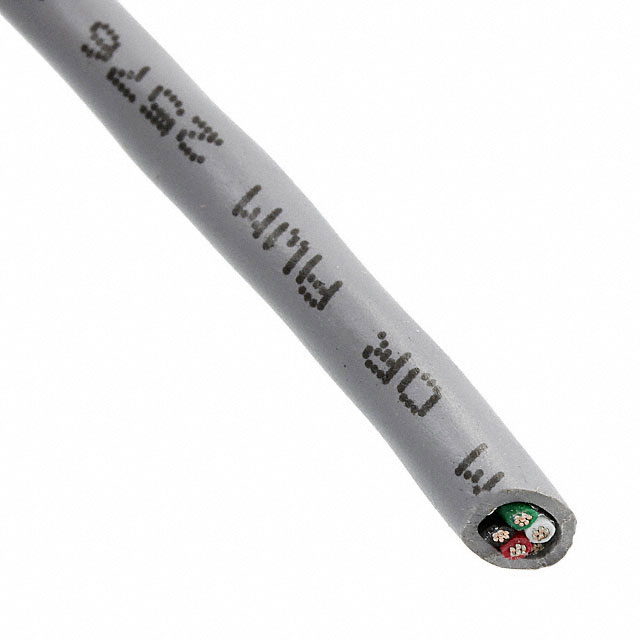

CABLE 4COND 18AWG SLATE SHLD
| Part | Shield Coverage | Shield Material | Conductor Insulation | Jacket Color | Cable Type | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Ratings | Shield Type | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Polyethylene (PE) | Slate | Multi-Conductor | 152.4 m | 500 ft | 80 °C | -20 ░C | 18 AWG | 0.02 " | 0.508 mm | Drain Wire | UL Style 2094 | Foil | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | Copper Tinned | 0.238 " | 6.05 mm | 4 | 300 VDC | ||
ALPHA WIRE | 100 % | Aluminum | Polyethylene (PE) | Slate | Multi-Conductor | 80 °C | -20 ░C | 18 AWG | 0.02 " | 0.508 mm | Drain Wire | UL Style 2094 | Foil | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | Copper Tinned | 0.238 " | 6.05 mm | 4 | 300 VDC | 100 ft | 30.5 m |
