A161CS Series
Manufacturer: CIT Relay and Switch
Beta
⌘K

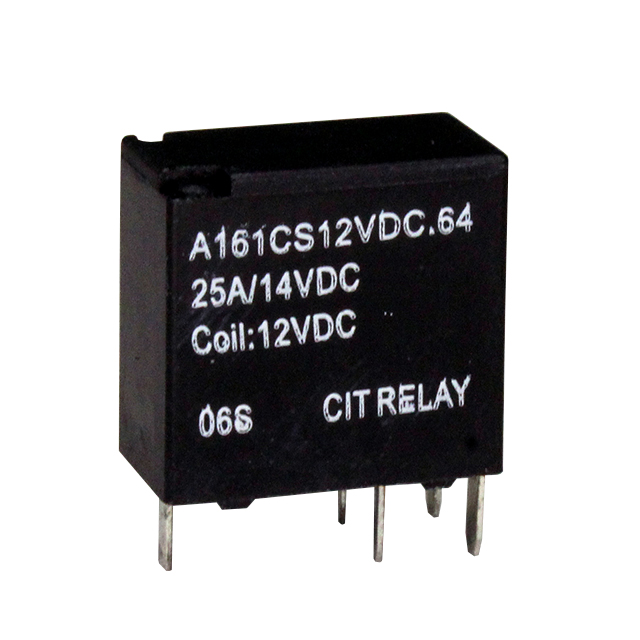

RELAY AUTOMOTIVE SPDT 25A 12V
| Part | Contact Material | Coil Resistance | Coil Power | Coil Current | Switching Voltage [Max] | Coil Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Mounting Type | Release Time | Must Operate Voltage | Must Release Voltage | Contact Form | Contact Rating (Current) | Termination Style | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Silver Tin Oxide Indium Oxide (AgSnOInO) | 225 Ohms | 640 mW | 53.3 mA | 20 VDC | Non Latching | Sealed - Fully | -40 C | 105 ░C | 10 ms | Through Hole | 5 ms | 8.4 VDC | 1.2 VDC | SPDT (1 Form C) | 25 A | PC Pin | 12 VDC |
