94611 Series

Catalog

CONN HEADER VERT 36POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Contact Material	Connector Type	Insulation Height	Insulation Height	Contact Shape	Number of Rows	Termination	Number of Positions Loaded	Insulation Color	Number of Positions	Shrouding	Mounting Type	Fastening Type	Contact Type	Contact Finish - Mating	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Finish - Post

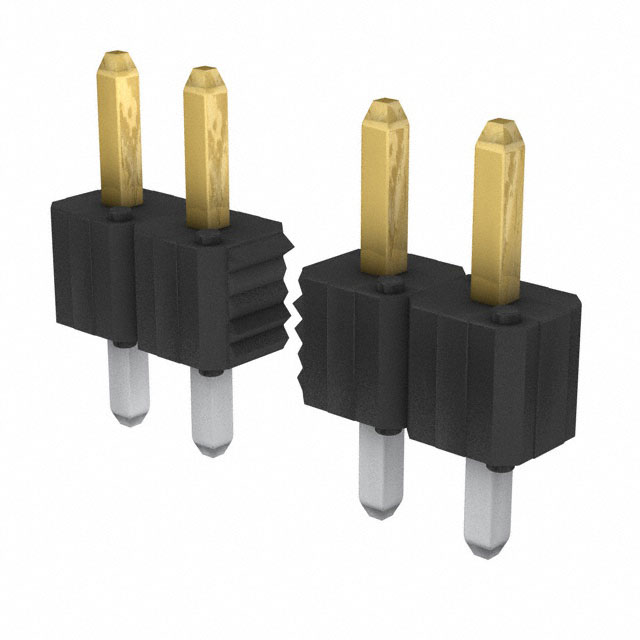

Amphenol ICC (FCI) 94611-236H	0.1 in	2.54 mm	15 µin	0.38 µm	2.41 mm	0.095 in	0.125 in	3.18 mm	Phosphor Bronze	Header	0.1 in	2.54 mm	Square	1	Solder	All	Black	36	Unshrouded	Through Hole	Push-Pull	Male Pin	Gold or Gold GXT™	UL94 V-0

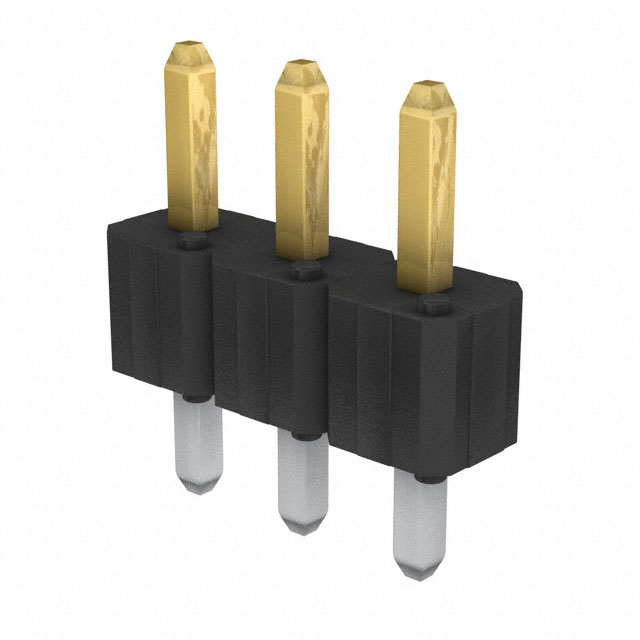

Amphenol ICC (FCI) 94611-203HLF	0.1 in	2.54 mm	15 µin	0.38 µm	2.41 mm	0.095 in	0.125 in	3.18 mm	Phosphor Bronze	Header	0.1 in	2.54 mm	Square	1	Solder	All	Black		Unshrouded	Through Hole	Push-Pull	Male Pin	Gold or Gold GXT™	UL94 V-0	125 °C	-65 ░C	3 A
Amphenol ICC (FCI) 94611-108HLF	0.1 in	2.54 mm	30 Áin	0.76 Ám	2.41 mm	0.095 in	0.125 in	3.18 mm	Phosphor Bronze	Header	0.1 in	2.54 mm	Square	1	Solder	All	Black	8	Unshrouded	Through Hole	Push-Pull	Male Pin	Gold or Gold GXT™	UL94 V-0	125 °C	-65 ░C	3 A

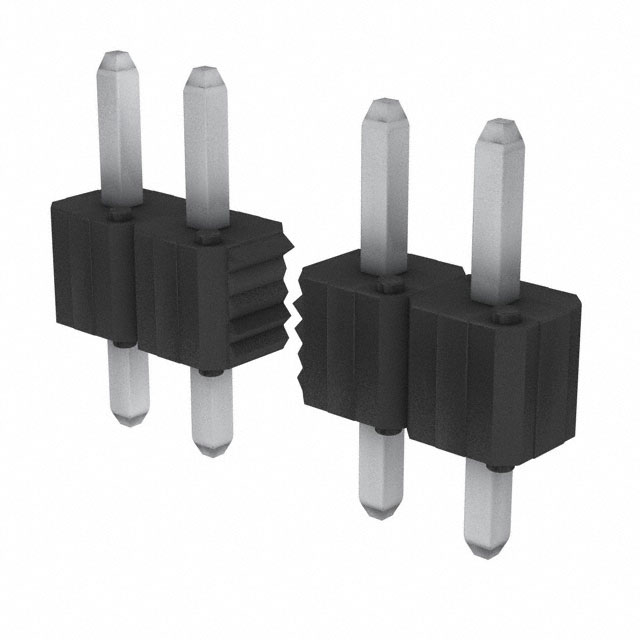

Amphenol ICC (FCI) 94611-429HLF	0.1 in	2.54 mm	100 çin	2.54 çm	2.41 mm	0.095 in	0.125 in	3.18 mm	Phosphor Bronze	Header	0.1 in	2.54 mm	Square	1	Solder	All	Black	29	Unshrouded	Through Hole	Push-Pull	Male Pin		UL94 V-0	125 °C	-65 ░C	3 A	Tin
Amphenol ICC (FCI) 94611-236HLF	0.1 in	2.54 mm	15 µin	0.38 µm	2.41 mm	0.095 in	0.125 in	3.18 mm	Phosphor Bronze	Header	0.1 in	2.54 mm	Square	1	Solder	All	Black	36	Unshrouded	Through Hole	Push-Pull	Male Pin	Gold or Gold GXT™	UL94 V-0	125 °C	-65 ░C	3 A
Amphenol ICC (FCI) 94611-432HLF	0.1 in	2.54 mm	100 çin	2.54 çm	2.41 mm	0.095 in	0.125 in	3.18 mm	Phosphor Bronze	Header	0.1 in	2.54 mm	Square	1	Solder	All	Black		Unshrouded	Through Hole	Push-Pull	Male Pin		UL94 V-0	125 °C	-65 ░C	3 A	Tin
Amphenol ICC (FCI) 94611-118HLF	0.1 in	2.54 mm	30 Áin	0.76 Ám	2.41 mm	0.095 in	0.125 in	3.18 mm	Phosphor Bronze	Header	0.1 in	2.54 mm	Square	1	Solder	All	Black	18	Unshrouded	Through Hole	Push-Pull	Male Pin	Gold or Gold GXT™	UL94 V-0	125 °C	-65 ░C	3 A
Amphenol ICC (FCI) 94611-412HLF	0.1 in	2.54 mm	100 çin	2.54 çm	2.41 mm	0.095 in	0.125 in	3.18 mm	Phosphor Bronze	Header	0.1 in	2.54 mm	Square	1	Solder	All	Black	12	Unshrouded	Through Hole	Push-Pull	Male Pin		UL94 V-0	125 °C	-65 ░C	3 A	Tin
Amphenol ICC (FCI) 94611-112HLF	0.1 in	2.54 mm	30 Áin	0.76 Ám	2.41 mm	0.095 in	0.125 in	3.18 mm	Phosphor Bronze	Header	0.1 in	2.54 mm	Square	1	Solder	All	Black	12	Unshrouded	Through Hole	Push-Pull	Male Pin	Gold or Gold GXT™	UL94 V-0	125 °C	-65 ░C	3 A
Amphenol ICC (FCI) 94611-422HLF	0.1 in	2.54 mm	100 çin	2.54 çm	2.41 mm	0.095 in	0.125 in	3.18 mm	Phosphor Bronze	Header	0.1 in	2.54 mm	Square	1	Solder	All	Black	22 positions	Unshrouded	Through Hole	Push-Pull	Male Pin		UL94 V-0	125 °C	-65 ░C	3 A	Tin
