C146 11F024 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K

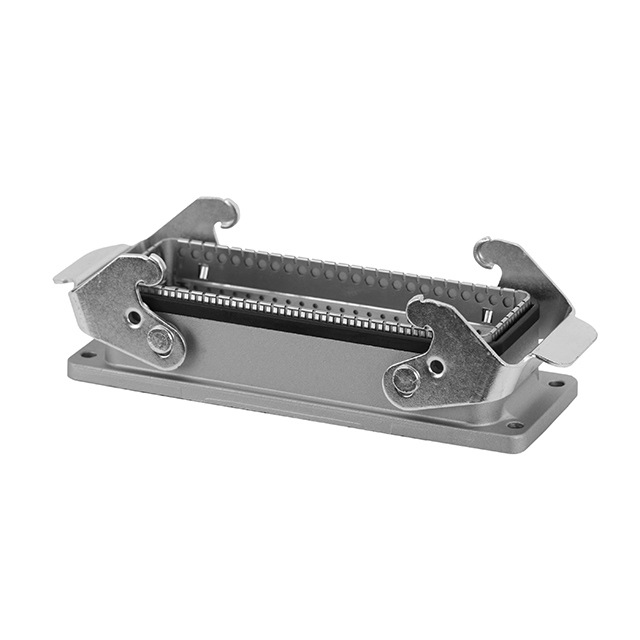

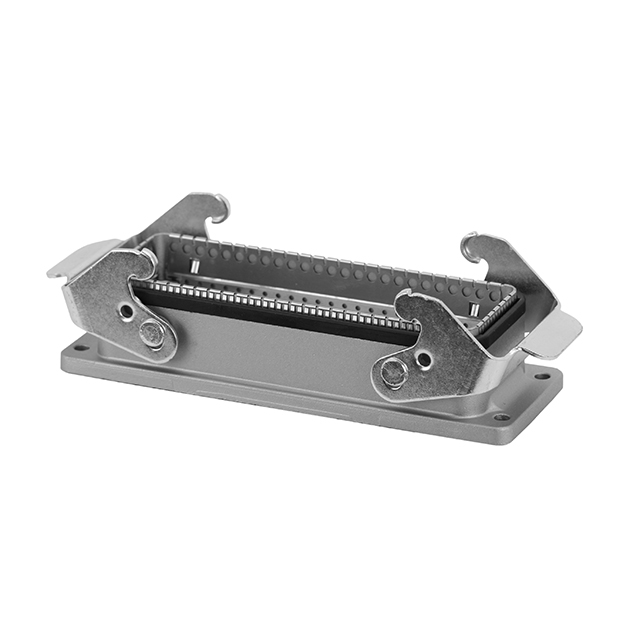

CONN BASE BOTTOM ENTRY SZE24
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Housing Color | Connector Type | Style | Housing Finish | Size | Lock Location | Housing Material | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | 125 °C | -40 C | 140 mm | 1.89 in | 1.311 " | 33.3 mm | 5.512 " | 48 mm | Gray | Base - Panel Mount | Bottom Entry | EMC Coating | E24 | Locking Clip (2) on Base Bottom | Aluminum Die Cast | IP65 - Dust Tight Water Resistant |
 Amphenol Tuchel Industrial | 125 °C | -40 C | 140 mm | 1.89 in | 1.193 in | 30.3 mm | 5.512 " | 48 mm | Gray | Base - Panel Mount | Bottom Entry | EMC Coating | E24 | Locking Clip (2) on Base Bottom | Aluminum Die Cast | IP65 - Dust Tight Water Resistant |
