0359-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth	Tail Type	Length - Overall [x]	Length - Overall [x]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 0359-0-15-15-34-14-10-0	-55 C	125 °C	Knurled Press-Fit	0.09 in	2.29 mm	Gold	1.17 mm	0.81 mm	0.046 "	0.032 "	0.19 in	4.83 mm	No Tail	6.35 mm	0.25 in	1.63 mm	0.064 in	0.11 in	2.79 mm	Beryllium Copper	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0359-0-15-01-34-27-10-0	-55 C	125 °C	Knurled Press-Fit	0.09 in	2.29 mm	Gold	1.17 mm	0.81 mm	0.046 "	0.032 "	0.19 in	4.83 mm	No Tail	6.35 mm	0.25 in	1.63 mm	0.064 in	0.11 in	2.79 mm	Beryllium Copper	0.76 Ám	30 Áin

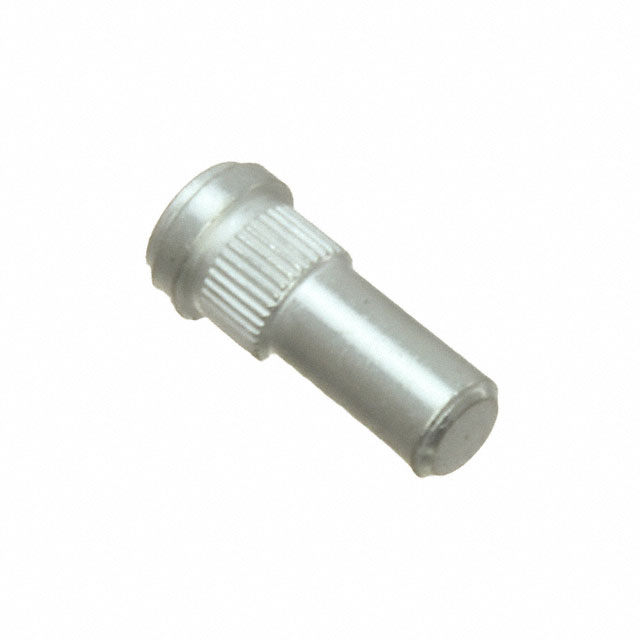

Mill-Max Manufacturing Corp. 0359-0-15-80-34-27-10-0	-55 C	125 °C	Knurled Press-Fit	0.09 in	2.29 mm	Gold	1.17 mm	0.81 mm	0.046 "	0.032 "	0.19 in	4.83 mm	No Tail	6.35 mm	0.25 in	1.63 mm	0.064 in	0.11 in	2.79 mm	Beryllium Copper	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0359-0-15-01-34-14-10-0	-55 C	125 °C	Knurled Press-Fit	0.09 in	2.29 mm	Gold	1.17 mm	0.81 mm	0.046 "	0.032 "	0.19 in	4.83 mm	No Tail	6.35 mm	0.25 in	1.63 mm	0.064 in	0.11 in	2.79 mm	Beryllium Copper	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0359-0-15-15-34-27-10-0	-55 C	125 °C	Knurled Press-Fit	0.09 in	2.29 mm	Gold	1.17 mm	0.81 mm	0.046 "	0.032 "	0.19 in	4.83 mm	No Tail	6.35 mm	0.25 in	1.63 mm	0.064 in	0.11 in	2.79 mm	Beryllium Copper	0.76 Ám	30 Áin

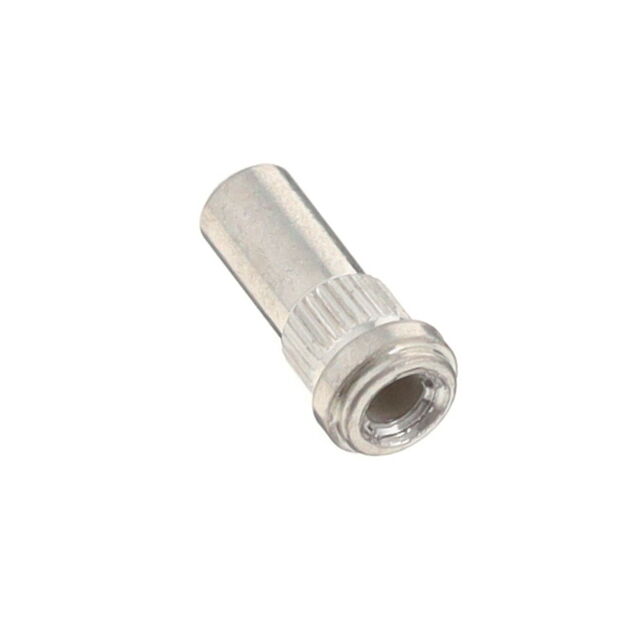

Mill-Max Manufacturing Corp. 0359-0-15-01-34-01-10-0	-55 C	125 °C	Knurled Press-Fit	0.09 in	2.29 mm	Tin-Lead	1.17 mm	0.81 mm	0.046 "	0.032 "	0.19 in	4.83 mm	No Tail	6.35 mm	0.25 in	1.63 mm	0.064 in	0.11 in	2.79 mm	Beryllium Copper	5.08 Ám	200 Áin
Mill-Max Manufacturing Corp. 0359-0-15-80-34-80-10-0	-55 C	125 °C	Knurled Press-Fit	0.09 in	2.29 mm	Tin	1.17 mm	0.81 mm	0.046 "	0.032 "	0.19 in	4.83 mm	No Tail	6.35 mm	0.25 in	1.63 mm	0.064 in	0.11 in	2.79 mm	Beryllium Copper	5.08 Ám	200 Áin
