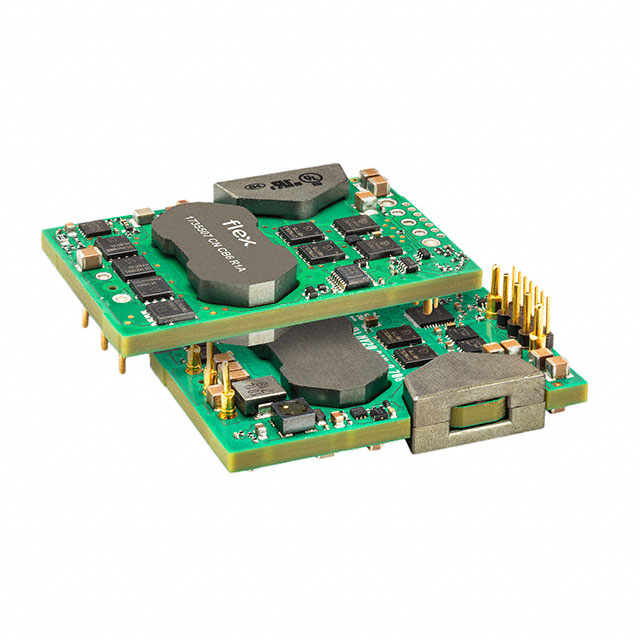

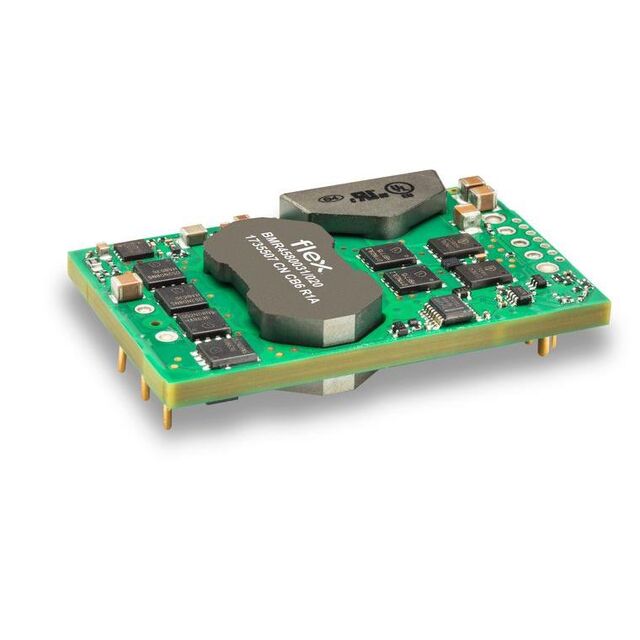

BMR458 Series
Manufacturer: Flex Power Modules
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
DC DC CONVERTER 12.45V 623W
| Part | Approval Agency | Package / Case | Operating Temperature (Min) | Operating Temperature (Max) | Current - Output (Max) | Control Features | Voltage - Isolation | Type | Size / Dimension Width | Size / Dimension Length | Size / Dimension Height | Power (Watts) | Standard Number | Efficiency | Voltage - Input (Min) | Applications | Features | Voltage - Input (Max) | Voltage - Output 1 | Package Name | Mounting Type | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | CB CSA IEC TUV UL | Quarter Brick | -40 °C | 125 °C | 50 A | Active Low Enable | 2.25 kV | Digital Intermediate Bus Converter | 1.45 in | 2.28 in | 0.44 in | 623 W | 62368-1 | 96.4 % | 36 V | ITE (Commercial) | Adjustable Output Load Sharing PMBus™ Remote On/Off Remote Sense | 75 V | 12.45 V | Quarter Brick | Through Hole | 1 |
Flex Power Modules | CB CSA IEC TUV UL | Quarter Brick | -40 °C | 125 °C | 50 A | Active Low Enable | 2.25 kV | Digital Intermediate Bus Converter | 1.45 in | 2.28 in | 0.44 in | 600 W | 62368-1 | 96.4 % | 36 V | ITE (Commercial) | Adjustable Output PMBus™ Remote On/Off Remote Sense | 75 V | 12 V | Quarter Brick | Through Hole | 1 |
Flex Power Modules | CB CSA IEC TUV UL | Quarter Brick | -40 °C | 125 °C | 54.2 A | Active Low Enable | 2.25 kV | Digital Intermediate Bus Converter | 1.45 in | 2.28 in | 0.44 in | 670 W | 62368-1 | 96.6 % | 40 V | ITE (Commercial) | Adjustable Output Load Sharing PMBus™ Remote On/Off Remote Sense | 60 V | 12.45 V | Quarter Brick | Through Hole | 1 |
Flex Power Modules | CB CSA IEC TUV UL | Quarter Brick | -40 °C | 125 °C | 54.2 A | Active Low Enable | 2.25 kV | Digital Intermediate Bus Converter | 1.45 in | 2.28 in | 0.44 in | 650 W | 62368-1 | 96.6 % | 40 V | ITE (Commercial) | Adjustable Output PMBus™ Remote On/Off Remote Sense | 60 V | 12 V | Quarter Brick | Through Hole | 1 |
Flex Power Modules | CB CSA IEC TUV UL | Quarter Brick | -40 °C | 125 °C | 50 A | Active Low Enable | 2.25 kV | Digital Intermediate Bus Converter | 1.45 in | 2.28 in | 0.52 in | 600 W | 62368-1 | 96.4 % | 36 V | ITE (Commercial) | Adjustable Output Baseplate PMBus™ Remote On/Off Remote Sense | 75 V | 12 V | Quarter Brick | Through Hole | 1 |
 Flex Power Modules | CB CSA IEC TUV UL | Quarter Brick | -40 °C | 125 °C | 50 A | Active Low Enable | 2.25 kV | Digital Intermediate Bus Converter | 1.45 in | 2.28 in | 0.52 in | 600 W | 62368-1 | 96.4 % | 36 V | ITE (Commercial) | Adjustable Output Baseplate Remote On/Off Remote Sense | 75 V | 12 V | Quarter Brick | Through Hole | 1 |
Flex Power Modules | CB CSA IEC TUV UL | Quarter Brick | -40 °C | 125 °C | 54.2 A | Active Low Enable | 2.25 kV | Digital Intermediate Bus Converter | 1.45 in | 2.28 in | 0.52 in | 650 W | 62368-1 | 40 V | ITE (Commercial) | Adjustable Output Baseplate PMBus™ Remote On/Off Remote Sense | 60 V | 12 V | Quarter Brick | Through Hole | 1 | |
Flex Power Modules | CB CSA IEC TUV UL | Quarter Brick | -40 °C | 125 °C | 54.2 A | Active Low Enable | 2.25 kV | Digital Intermediate Bus Converter | 1.45 in | 2.28 in | 0.52 in | 650 W | 62368-1 | 96.6 % | 40 V | ITE (Commercial) | Adjustable Output Baseplate Remote On/Off Remote Sense | 60 V | 12 V | Quarter Brick | Through Hole | 1 |
 Flex Power Modules | CB CSA IEC TUV UL | Quarter Brick | -40 °C | 125 °C | Active Low Enable | 2.25 kV | Digital Isolated Module | 1.45 in | 2.28 in | 0.44 in | 62368-1 | 36 V | ITE (Commercial) | Adjustable Output PMBus™ Remote On/Off Remote Sense | 75 V | 12 V | Quarter Brick | Through Hole | 1 |
