R463N Series

Manufacturer: KEMET

Catalog

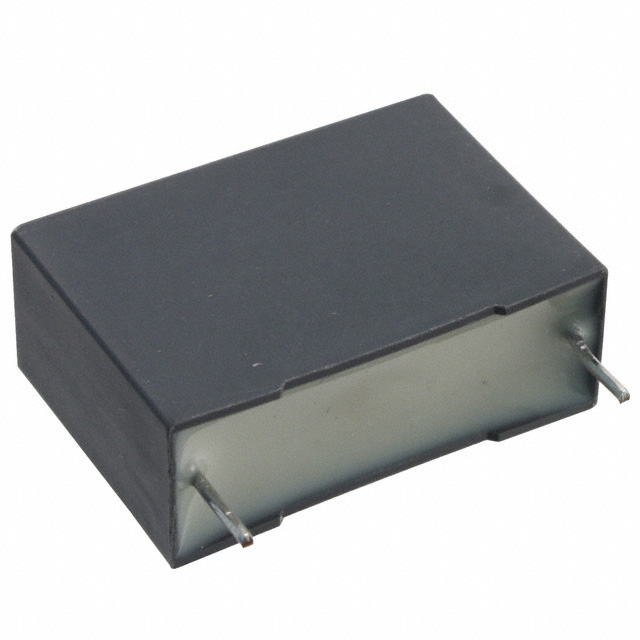

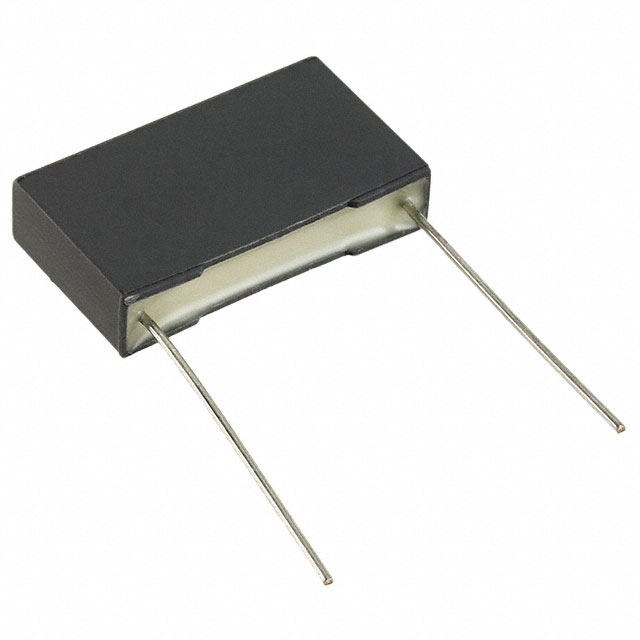

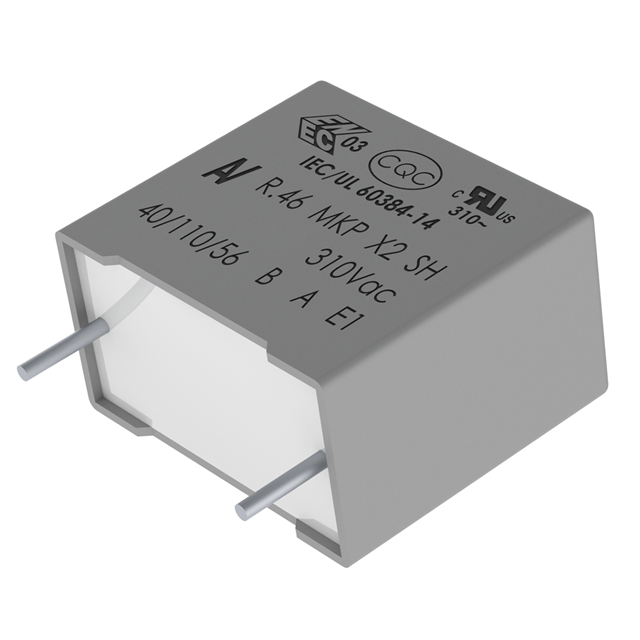

SAFETY CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.68 ΜF, ± 20%, X2, THROUGH HOLE

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Dielectric Material	Applications	Termination	Package / Case	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Lead Spacing	Lead Spacing	Capacitance	Ratings	Voltage Rating - AC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET R463N3680CKH1M	1.043 in	11 mm	26.5 mm	0.433 in	Polypropylene (PP) Metallized	EMI RFI Suppression	PC Pins	Radial	20 %	125 °C	-40 C	Through Hole	0.886 in	22.5 mm	0.68 µF	X2	310 V
KEMET R463N410040H1M	1.043 in	13 mm	26.5 mm	0.512 "	Polypropylene (PP) Metallized	EMI RFI Suppression	PC Pins	Radial	20 %	125 °C	-40 C	Through Hole	0.886 in	22.5 mm	1 µF	X2	310 V	0.87 in	22.1 mm
KEMET R463N31504001M	1.043 in	6 mm	26.5 mm	0.236 "	Polypropylene (PP) Metallized	EMI RFI Suppression	PC Pins	Radial	20 %	110 °C	-40 C	Through Hole	0.886 in	22.5 mm	0.15 ÁF	X2	310 V	0.594 in	15.1 mm
KEMET R463N333050N0K	1.043 in	6 mm	26.5 mm	0.236 "	Polypropylene (PP) Metallized	EMI RFI Suppression	PC Pins	Radial	10 %	110 °C	-40 C	Through Hole	0.886 in	22.5 mm	0.33 µF	X2	310 V	0.594 in	15.1 mm
KEMET R463N368050M2K	1.043 in	10 mm	26.5 mm	0.394 in	Polypropylene (PP) Metallized	EMI RFI Suppression	PC Pins	Radial	10 %	110 °C	-40 C	Through Hole	0.886 in	22.5 mm	0.68 µF	X2	310 V		0.732 in	18.6 mm
KEMET R463N410040N1M	1.043 in	11 mm	26.5 mm	0.433 in	Polypropylene (PP) Metallized	EMI RFI Suppression	PC Pins	Radial	20 %	110 °C	-40 C	Through Hole	0.886 in	22.5 mm	1 µF	X2	310 V
KEMET R463N368000M2M	1.043 in	10 mm	26.5 mm	0.394 in	Polypropylene (PP) Metallized	EMI RFI Suppression	PC Pins	Radial	20 %	110 °C	-40 C	Through Hole	0.886 in	22.5 mm	0.68 µF	X2	310 V		0.732 in	18.6 mm
KEMET R463N368040M2M	1.043 in	10 mm	26.5 mm	0.394 in	Polypropylene (PP) Metallized	EMI RFI Suppression	PC Pins	Radial	20 %	110 °C	-40 C	Through Hole	0.886 in	22.5 mm	0.68 µF	X2	310 V		0.732 in	18.6 mm
KEMET R463N3150DQH1M	1.043 in	6 mm	26.5 mm	0.236 "	Polypropylene (PP) Metallized	EMI RFI Suppression	PC Pins	Radial	20 %	125 °C	-40 C	Through Hole	0.886 in	22.5 mm	0.15 ÁF	X2	310 V	0.594 in	15.1 mm
KEMET R463N333000N0M	1.043 in	6 mm	26.5 mm	0.236 "	Polypropylene (PP) Metallized	EMI RFI Suppression	PC Pins	Radial	20 %	110 °C	-40 C	Through Hole	0.886 in	22.5 mm	0.33 µF	X2	310 V	0.594 in	15.1 mm
