DS450 Series

Catalog

BLANK PNL FOR DS450 DS550 POWER

Part	For Use With/Related Products	Accessory Type	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1	Voltage - Output 1	Features	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Power (Watts)	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 2	Current - Output (Max)
ARTESYN / Advanced Energy DS450/550 BLANK	DS450 DS550 Power Supplies	Blank Panel
ARTESYN / Advanced Energy DS450-3-002			264 VAC	90 VAC	ITE (Commercial)	1	12.03 in	3.07 in	38.6 mm	305.6 mm	78 mm	1.52 in	37 A	12 V	Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input	Rack Mount	Front End	50 °C	-10 °C	CB CE	450 W	84 %

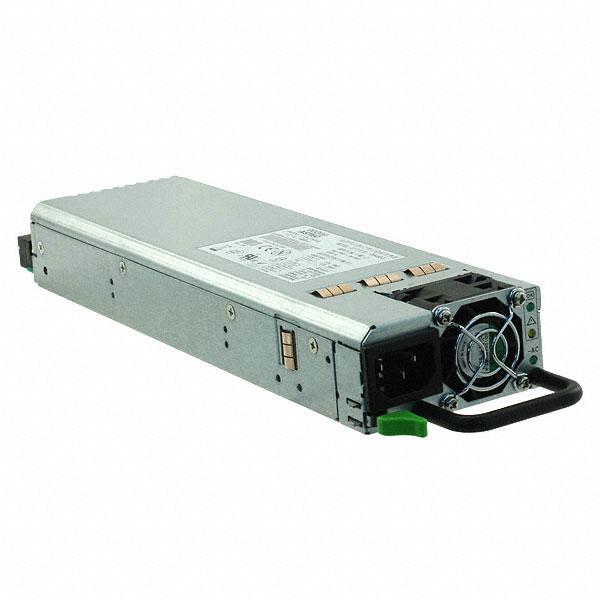

ARTESYN / Advanced Energy DS450-3			264 VAC	90 VAC	ITE (Commercial)	1	12.03 in	3.07 in	40 mm	305.6 mm	78 mm	1.57 "	37 A	12 V	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	Rack Mount	Front End	50 °C	-10 °C	CB CE	450 W	84 %
ARTESYN / Advanced Energy DS450DC-3					ITE (Commercial)	1	12.03 in	3.07 in	40 mm	305.6 mm	78 mm	1.57 "		12 V		Rack Mount	Front End	50 °C	-10 °C	CB CE cUL EN NEMKO UL	450 W	87 %	37 A	36 V	75 V
ARTESYN / Advanced Energy DS450HE-3			264 VAC	90 VAC	ITE (Commercial)	1	12.03 in	3.07 in	38.6 mm	305.6 mm	78 mm	1.52 in	37 A	12 V	Adjustable Output Hot Swappable I2C Interface Load Sharing Remote On/Off Standby Output Universal Input	Rack Mount	Front End	50 °C	-10 °C	CB CE	450 W	89 %
ARTESYN / Advanced Energy DS450DC-3-002					ITE (Commercial)	2	12.03 in	3.07 in	40 mm	305.6 mm	78 mm	1.57 "		12 V		Rack Mount	Front End	50 °C	-10 °C	CB CCC CE cUL EN NEMKO UL	450 W	87.4 %		36 V	75 V	3.3 V	3 A 37 A
