7009 Series

128K x 8 Dual-Port RAM

Manufacturer: Renesas Electronics Corporation

Catalog

128K x 8 Dual-Port RAM

Part	Write Cycle Time - Word, Page [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Access Time	Mounting Type	Memory Organization	Technology	Memory Format	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Interface	Package / Case	Memory Type	Supplier Device Package	Memory Size	Write Cycle Time - Word, Page

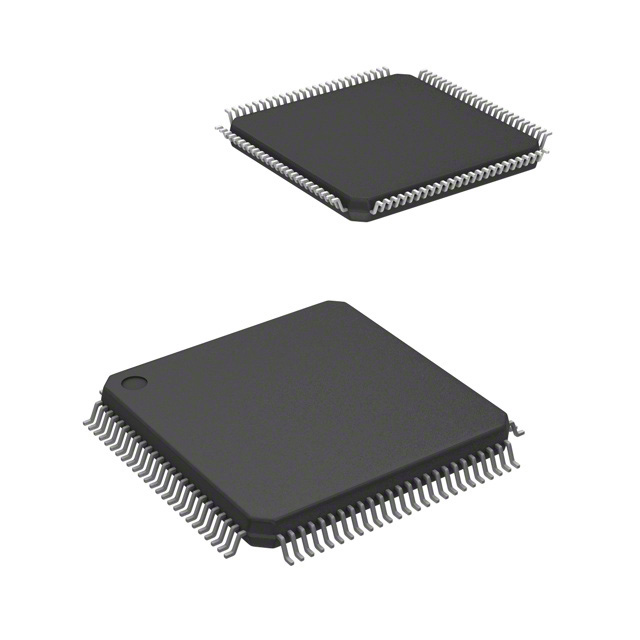

Renesas Electronics Corporation 7009L20PFGI	20 ns	85 C	-40 ¯C	20 ns	Surface Mount	128 K	SRAM - Dual Port Asynchronous	SRAM	5.5 V	4.5 V	Parallel	100-LQFP	Volatile	100-TQFP (14x14)	1 Mbit
Renesas Electronics Corporation 7009L15PFG		70 °C	0 °C	15 ns	Surface Mount	128 K	SRAM - Dual Port Asynchronous	SRAM	5.5 V	4.5 V	Parallel	100-LQFP	Volatile	100-TQFP (14x14)	1 Mbit	15 ns
Renesas Electronics Corporation 7009L20PF	20 ns	70 °C	0 °C	20 ns	Surface Mount	128 K	SRAM - Dual Port Asynchronous	SRAM	5.5 V	4.5 V	Parallel	100-LQFP	Volatile	100-TQFP (14x14)	1 Mbit
Renesas Electronics Corporation 7009L20PFG	20 ns	70 °C	0 °C	20 ns	Surface Mount	128 K	SRAM - Dual Port Asynchronous	SRAM	5.5 V	4.5 V	Parallel	100-LQFP	Volatile	100-TQFP (14x14)	1 Mbit
Renesas Electronics Corporation 7009L20PFG8	20 ns	70 °C	0 °C	20 ns	Surface Mount	128 K	SRAM - Dual Port Asynchronous	SRAM	5.5 V	4.5 V	Parallel	100-LQFP	Volatile	100-TQFP (14x14)	1 Mbit
Renesas Electronics Corporation 7009L15PFG8		70 °C	0 °C	15 ns	Surface Mount	128 K	SRAM - Dual Port Asynchronous	SRAM	5.5 V	4.5 V	Parallel	100-LQFP	Volatile	100-TQFP (14x14)	1 Mbit	15 ns
Renesas Electronics Corporation 7009L20PFGI8	20 ns	85 C	-40 ¯C	20 ns	Surface Mount	128 K	SRAM - Dual Port Asynchronous	SRAM	5.5 V	4.5 V	Parallel	100-LQFP	Volatile	100-TQFP (14x14)	1 Mbit
Renesas Electronics Corporation 7009L20PFI	20 ns	85 C	-40 ¯C	20 ns	Surface Mount	128 K	SRAM - Dual Port Asynchronous	SRAM	5.5 V	4.5 V	Parallel	100-LQFP	Volatile	100-TQFP (14x14)	1 Mbit

Catalog

128K x 8 Dual-Port RAM

Description

The 7009 is a high-speed 128K x 8 Dual-Port Static RAM designed to be used as a stand-alone 1M-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 16-bit-or-more word systems. An automatic power down feature controlled by CE permits the on-chip circuitry of each port to enter a very low standby power mode.
