QSZH Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

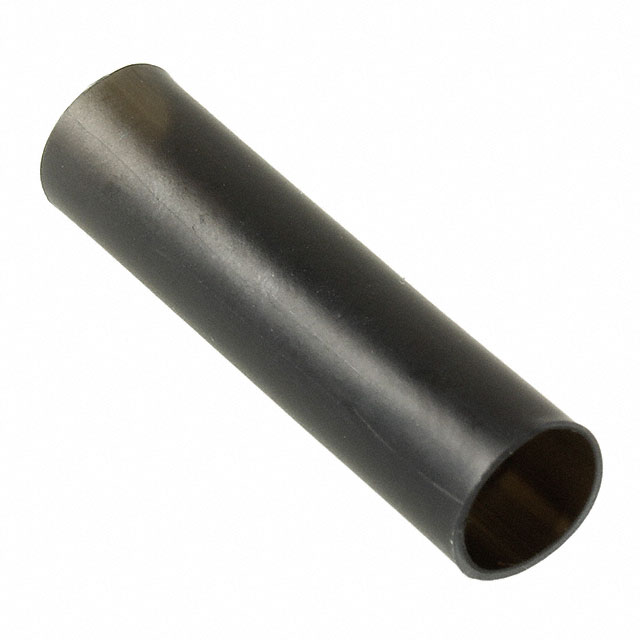

HEATSHRINK 0.72" X 4' BLACK
| Part | Material | Inner Diameter - Supplied [diameter] | Inner Diameter - Supplied [diameter] | Type | Inner Diameter - Recovered [diameter] | Inner Diameter - Recovered [diameter] | Length [x] | Length [x] | Shrink Temperature | Features | Shrinkage Ratio | Recovered Wall Thickness | Recovered Wall Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Color | Length | Length | Length | Inner Diameter - Recovered | Inner Diameter - Supplied | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Shelf Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polyolefin (PO) Irradiated Halogen Free | 0.72 in | 18.29 mm | Tubing Semi Rigid | 4.35 mm | 0.171 in | 4 ft | 1.22 m | 110 °C | Abrasion and Cut Resistant Adhesive Lined Fluid Resistant | 4 to 1 | 2.21 mm | 0.087 in | 125 °C | -40 C | Black | ||||||||||
 TE Connectivity AMP Connectors | ||||||||||||||||||||||||||
TE Connectivity AMP Connectors | Polyolefin (PO) Irradiated Halogen Free | 0.226 " | 5.75 mm | Tubing Semi Rigid | 0.049 " | 110 °C | Abrasion and Cut Resistant Adhesive Lined Fluid Resistant | 4 to 1 | 1.14 mm | 0.045 in | 125 °C | -40 C | Black | 27 mm | 1.06 in | 1.056 in | 1.24 mm | |||||||||
TE Connectivity AMP Connectors | Polyolefin (PO) Irradiated | 0.295 " | Tubing Semi Rigid | 0.065 in | 4 ft | 1.22 m | 110 °C | Abrasion and Cut Resistant Adhesive Lined Fluid Resistant | 4 to 1 | 1.4 mm | 0.055 in | 125 °C | -40 C | Black | 1.65 mm | 7.49 mm | 0 °C | 35 °C | 32 °F | 95 °F | 36 Months | |||||
TE Connectivity AMP Connectors | Polyolefin (PO) Irradiated | 0.433 in | 11 mm | Tubing Semi Rigid | 2.4 mm | 0.094 in | 110 °C | Abrasion and Cut Resistant Adhesive Lined Fluid Resistant | 4 to 1 | 1.8 mm | 0.071 in | 125 °C | -40 C | Black | 40 mm | 1.57 " | 0.131 ' | 0 °C | 35 °C | 32 °F | 95 °F | 36 Months | ||||
 TE Connectivity AMP Connectors | Polyolefin (PO) Irradiated Halogen Free | 0.226 " | 5.75 mm | Tubing Semi Rigid | 0.049 " | 110 °C | Abrasion and Cut Resistant Adhesive Lined Fluid Resistant | 4 to 1 | 1.14 mm | 0.045 in | 125 °C | -40 C | Black | 0.03 m | 1.18 " | 0.098 ' | 1.24 mm | |||||||||
TE Connectivity AMP Connectors | Polyolefin (PO) Irradiated Halogen Free | 0.295 " | Tubing Semi Rigid | 0.065 in | 110 °C | Abrasion and Cut Resistant Adhesive Lined Fluid Resistant | 4 to 1 | 1.4 mm | 0.055 in | 125 °C | -40 C | Black | 130 mm | 5.12 in | 0.427 ft | 1.65 mm | 7.49 mm | |||||||||
TE Connectivity AMP Connectors | Polyolefin (PO) Irradiated | 0.226 " | 5.75 mm | Tubing Semi Rigid | 0.065 in | 4 ft | 1.22 m | 110 °C | Abrasion and Cut Resistant Adhesive Lined Fluid Resistant | 4 to 1 | 1.4 mm | 0.055 in | 125 °C | -40 C | Black | 1.65 mm | 0 °C | 35 °C | 32 °F | 95 °F | 36 Months | |||||
 TE Connectivity AMP Connectors | Polyolefin (PO) Irradiated Halogen Free | 0.72 in | 18.29 mm | Tubing Semi Rigid | 4.35 mm | 0.171 in | 110 °C | Abrasion and Cut Resistant Adhesive Lined Fluid Resistant | 4 to 1 | 2.21 mm | 0.087 in | 125 °C | -40 C | Black | 50 mm | 1.97 in | 0.164 ft | |||||||||
TE Connectivity AMP Connectors | Polyolefin (PO) Irradiated Halogen Free | 0.72 in | 18.29 mm | Tubing Semi Rigid | 4.35 mm | 0.171 in | 110 °C | Abrasion and Cut Resistant Adhesive Lined Fluid Resistant | 4 to 1 | 2.21 mm | 0.087 in | 125 °C | -40 C | Black | 75 mm | 2.95 in | 0.246 ft |
