1715 Series

Catalog

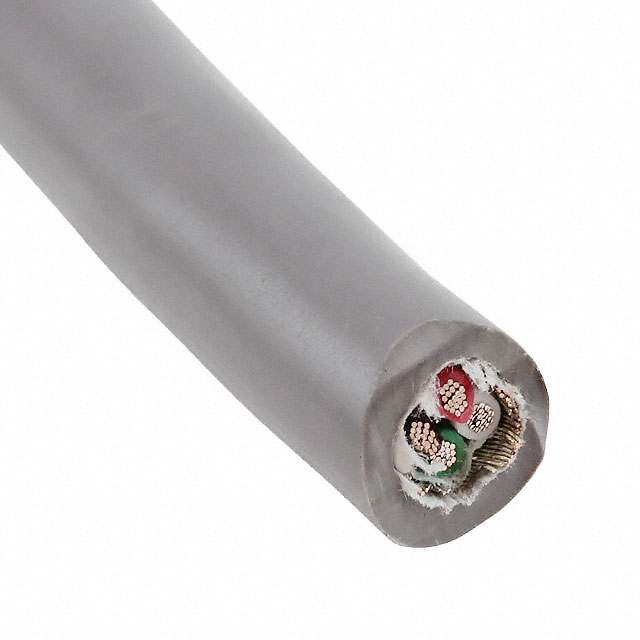

SHIELDED MULTI-CONDUCTOR CABLE BRAID POLYETHYLENE 4CONDUCTORS 20AWG 7.03MM 600VAC SLATE POLYVINYL CHLORIDE 30.48M SPOOL

Part	Shield Material	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Shield Type	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket (Insulation) Material	Length [x]	Length [x]	Cable Type	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Number of Conductors	Length	Length
ALPHA WIRE 1715 SL005	Copper Tinned	85 %	0.035 in	0.889 mm	Polyethylene (PE)	Braid	Copper Tinned	26	34 AWG	600 V	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m	Multi-Conductor	Communication Control	-20 ░C	60 °C	20 AWG	6.76 mm	0.266 in	Slate	4
ALPHA WIRE 1715 SL002	Copper Tinned	85 %	0.035 in	0.889 mm	Polyethylene (PE)	Braid	Copper Tinned	26	34 AWG	600 V	Poly-Vinyl Chloride (PVC)			Multi-Conductor	Communication Control	-20 ░C	60 °C	20 AWG	6.76 mm	0.266 in	Slate	4	152.4 m	500 ft
ALPHA WIRE 1715 SL001	Copper Tinned	85 %	0.035 in	0.889 mm	Polyethylene (PE)	Braid	Copper Tinned	26	34 AWG	600 V	Poly-Vinyl Chloride (PVC)			Multi-Conductor	Communication Control	-20 ░C	60 °C	20 AWG	6.76 mm	0.266 in	Slate	4	304.8 m	1000 ft
