SST-10 Series

Catalog

IR MOD SST10 850NM TOP VIEW

Part	Current - DC Forward (If) (Max) [Max]	Viewing Angle	Wavelength	Package / Case	Radiant Intensity (Ie) Min @ If	Mounting Type	Orientation	Operating Temperature	Voltage - Forward (Vf) (Typ)	Type	Thermal Resistance of Package	Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Color	Wavelength [Max]	Wavelength [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Temperature - Test	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max)
Luminus Devices Inc. SST-10-IRD-B130-U850	1.5 A	130 °	850 nm	1414 (3535 Metric)	450 mW/sr	Surface Mount	Top View	115 °C	3 V	Infrared (IR)

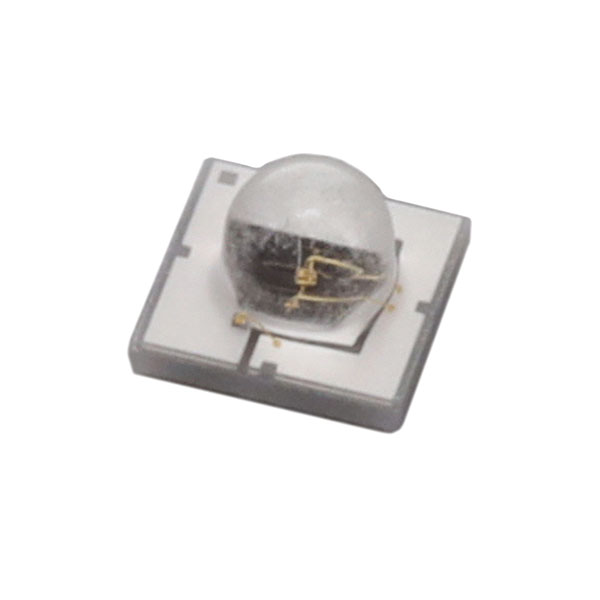

Luminus Devices Inc. SST-10-IRD-B90H-S810	1.5 A	90 °	815 nm	1414 (3535 Metric)	770 mW/sr	Surface Mount	Top View	115 °C	3 V	Infrared (IR)

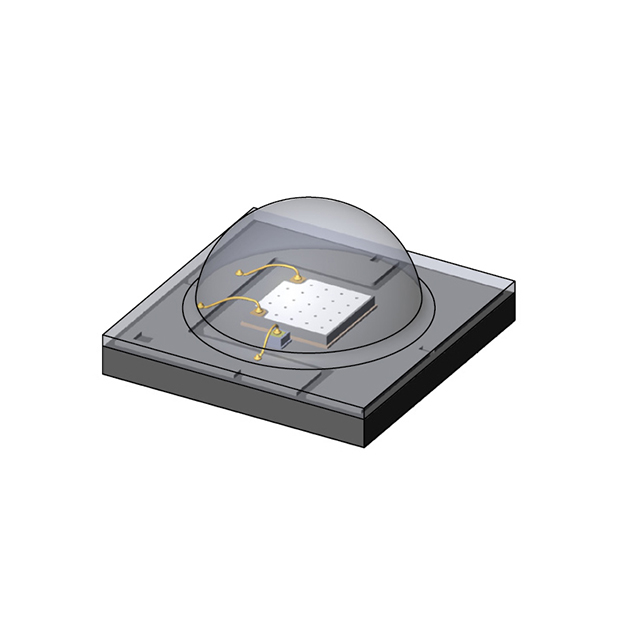

Luminus Devices Inc. SST-10-UV-A130-G395-00	500 mA	120 °	395 nm	1414 (3535 Metric)		Surface Mount	Top View		3.4 V	Ultraviolet (UV)
Luminus Devices Inc. SST-10-SB-B130-M470		130 °	470 nm	1414 (3535 Metric)		Surface Mount			2.85 V		5.3 °C/W	350 mA	2.03 mm	0.08 in	3535	Blue	480 nm	460 nm	0.136 "	3.45 mm	3.45 mm	0.136 in	1.5 A	25 °C
Luminus Devices Inc. SST-10-UV-B130-F405-00	1.5 A	130 °	405 nm	1414 (3535 Metric)		Surface Mount	Top View	100 °C	3.3 V	Ultraviolet (UV)
Luminus Devices Inc. SST-10-UV-B130-G385-00	1.5 A	130 °	385 nm	1414 (3535 Metric)		Surface Mount	Top View	100 °C	3.4 V	Ultraviolet (UV)							390 nm	380 nm
Luminus Devices Inc. SST-10-G-B130-F530		130 °		1414 (3535 Metric)		Surface Mount			3.4 V			350 mA	2.03 mm	0.08 in	3535	Green			0.136 "	3.45 mm	3.45 mm	0.136 in	1.5 A	25 °C	250 mW
Luminus Devices Inc. SST-10-R-B130-G630		130 °		1414 (3535 Metric)		Surface Mount			2.1 V			350 mA	2.03 mm	0.08 in	3535	Red			0.136 "	3.45 mm	3.45 mm	0.136 in	1.5 A	25 °C	290 mW	310 mW	270 mW

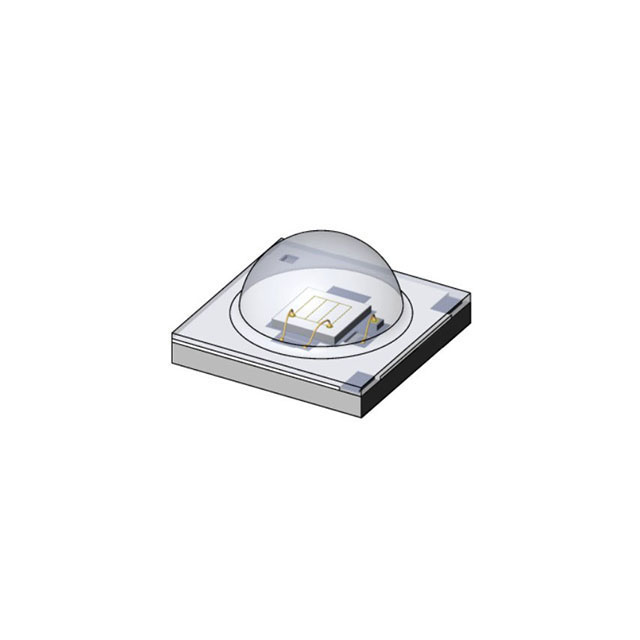

Luminus Devices Inc. SST-10-SB-B90-M470		90 °	470 nm	1414 (3535 Metric)		Surface Mount			2.85 V		5.3 °C/W	350 mA			3535	Blue	480 nm	460 nm	0.136 "	3.45 mm	3.45 mm	0.136 in	1.5 A	25 °C				0.092 in	2.33 mm

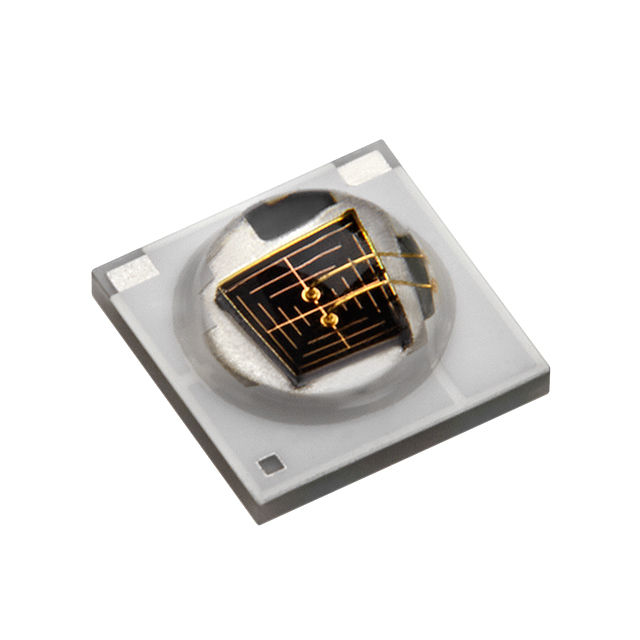

Luminus Devices Inc. SST-10-IR-B130-K850-00	1.5 A	130 °	850 nm	2-SMD No Lead Exposed Pad		Surface Mount	Top View		1.5 V	Infrared (IR)
