BLF6G27 Series

Catalog

RF MOSFET LDMOS 28V CDFM6

Part	Voltage - Test	Voltage - Rated	Frequency [Max]	Frequency [Min]	Power - Output	Mounting Type	Package / Case	Configuration	Supplier Device Package	Gain	Current - Test	Current Rating (Amps)	Frequency

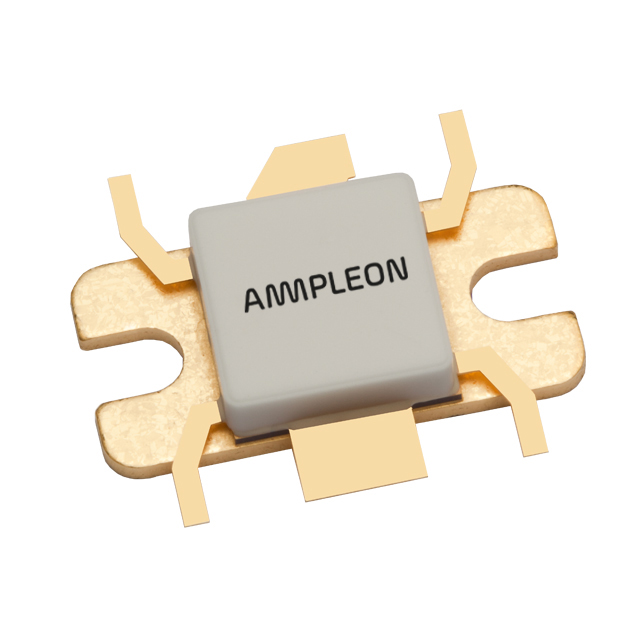

Ampleon USA Inc. BLF6G27L-50BN,112	28 V	65 V	2700 MHz	2.5 GHz	3 W	Chassis Mount	SOT-1112A	Common Source Dual	CDFM6	16.5 dBi
Ampleon USA Inc. BLF6G27-10G,118	28 V	65 V	2700 MHz	2.5 GHz	2 W	Surface Mount	SOT-975C		CDFM2	19 dB	130 mA	3.5 A
Ampleon USA Inc. BLF6G27LS-75,112	28 V	65 V			9 W	Chassis Mount	SOT-502B		SOT502B		600 mA	18 A
Ampleon USA Inc. BLF6G27S-45,118	28 V	65 V			7 W	Chassis Mount	SOT-608B		CDFM2	18 dBi	350 mA	20 A	2.7 GHz

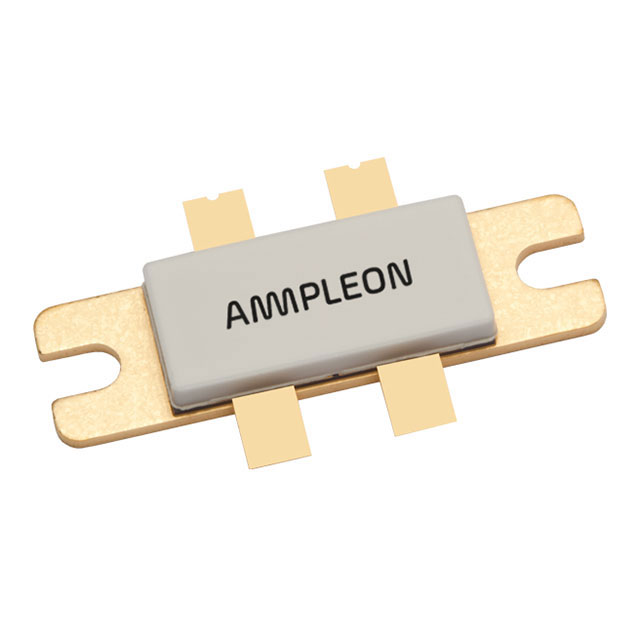

Ampleon USA Inc. BLF6G27L-50BN,118	28 V	65 V	2700 MHz	2.5 GHz	3 W	Chassis Mount	SOT-1112A	Common Source Dual	CDFM6	16.5 dBi
Ampleon USA Inc. BLF6G27LS-135,118	32 V	65 V	2700 MHz	2.5 GHz	20 W	Chassis Mount	SOT-502B		SOT502B	16 dBi	1.2 A	34 A
Ampleon USA Inc. BLF6G27-45,135	28 V	65 V			7 W	Chassis Mount	SOT-608A		CDFM2	18 dBi	350 mA	20 A	2.7 GHz
Ampleon USA Inc. BLF6G27-10,118	28 V	65 V	2700 MHz	2.5 GHz	2 W	Chassis Mount	SOT-975B		CDFM2	19 dB	130 mA	3.5 A
