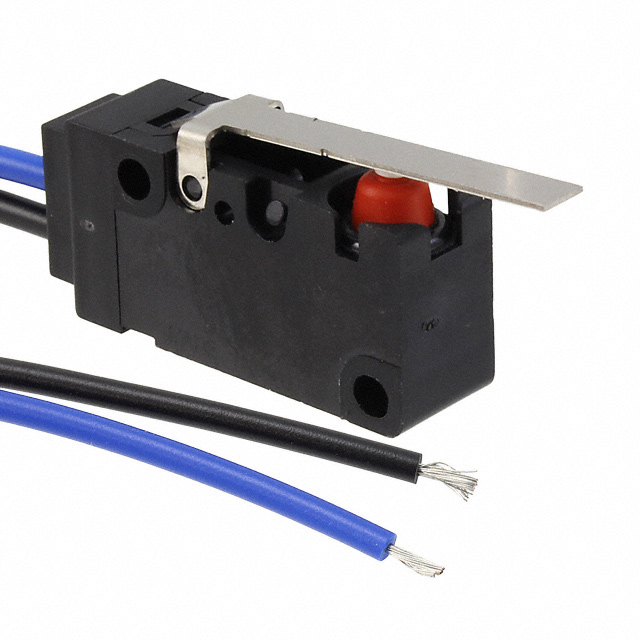

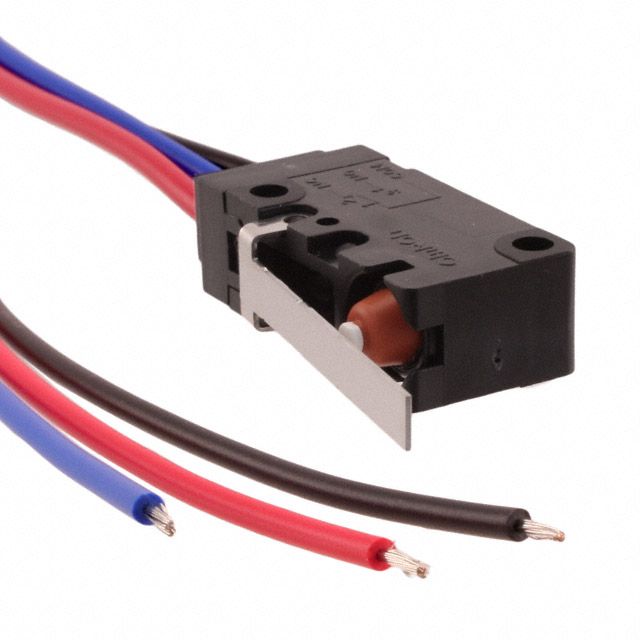

D2VW Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SWITCH SNAP ACT SPST-NO 5A 125V

Part	Current Rating (Amps)	Release Force	Actuator Type	Ingress Protection	Electrical Life	Differential Travel	Differential Travel	Circuit	Pretravel	Pretravel	Overtravel [custom]	Overtravel [custom]	Mounting Type	Voltage Rating - DC	Operating Position	Operating Position	Mechanical Life	Switch Function	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage Rating - AC	Termination Style	Termination Style

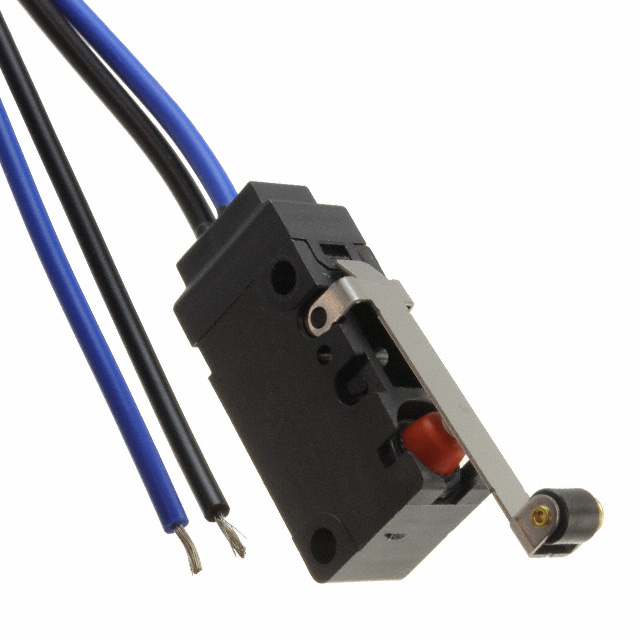

Omron Electronics Inc-EMC Div D2VW-5L2-3MS(CHN)	5 A	15 gf	Lever Roller	IP67 - Dust Tight Waterproof	100000 Cycles	0.031 in	0.8 mm	SPST-NO	4 mm	0.157 in	0.062 "	1.6 mm	Chassis Mount	30 V	20.7 mm	0.815 in	10000000 Cycles	Off-Mom	120 gf	85 °C	-40 C	Wire Leads	125 V

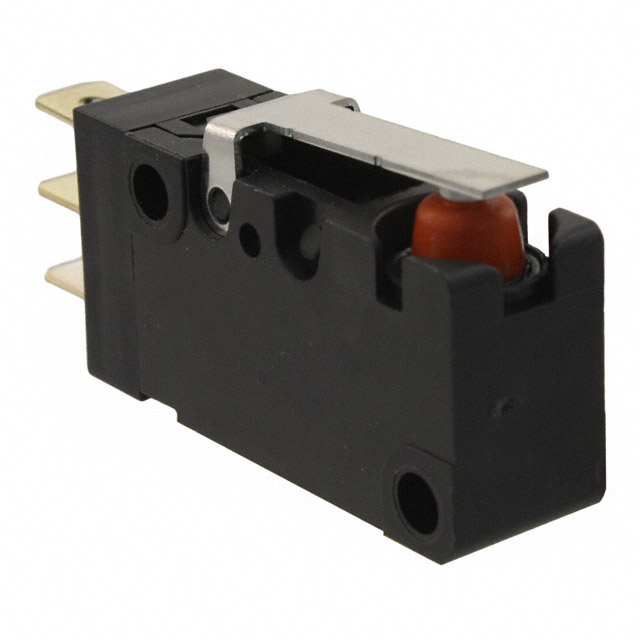

Omron Electronics Inc-EMC Div D2VW-5L1A-1HS	5 A	20 gf	Lever Straight	IP67 - Dust Tight Waterproof	100000 Cycles	0.02 in	0.5 mm	SPDT	1.6 mm	0.063 in	0.03 "	0.76 mm	Chassis Mount	30 V	15.2 mm	0.6 in	10000000 Cycles	On-Mom	0.2 kgf	85 °C	-40 C	Solder Quick Connect	125 V	4.7 mm	0.187 in
Omron Electronics Inc-EMC Div D2VW-01L1A-1HS	100 mA	20 gf	Lever Straight	IP67 - Dust Tight Waterproof	1000000 Cycles	0.02 in	0.5 mm	SPDT	1.6 mm	0.063 in	0.03 "	0.76 mm	Chassis Mount	30 V	15.2 mm	0.6 in	10000000 Cycles	On-Mom	0.2 kgf	85 °C	-40 C	Solder Quick Connect	125 V	4.7 mm	0.187 in
Omron Electronics Inc-EMC Div D2VW-5L1-3MS	5 A	15 gf	Lever Straight	IP67 - Dust Tight Waterproof	100000 Cycles	0.031 in	0.8 mm	SPST-NO	4 mm	0.157 in	0.062 "	1.6 mm	Chassis Mount	30 V	15.2 mm	0.6 in	10000000 Cycles	Off-Mom	120 gf	85 °C	-40 C	Wire Leads	125 V
Omron Electronics Inc-EMC Div D2VW-5L1B-2HS	5 A	5.099 gf	Lever Straight	IP67 - Dust Tight Waterproof	100000 Cycles	0.08 in	2 mm	SPST-NC	9 mm	0.354 in	0.125 in	3.2 mm	Chassis Mount	30 V	15.2 mm	0.6 in	10000000 Cycles	On-Mom	60 gf	85 °C	-40 C	Solder Quick Connect	125 V	4.7 mm	0.187 in
Omron Electronics Inc-EMC Div D2VW-5K2-1HS	5 A	30 gf	Round (Pin Plunger)	IP67 - Dust Tight Waterproof	100000 Cycles	0.016 in	0.4 mm	SPDT	1.2 mm	0.047 in	0.039 "	1 mm	Chassis Mount	30 V	14.7 mm	0.579 in	10000000 Cycles	On-Mom	0.2 kgf	85 °C	-40 C	Solder Quick Connect	125 V	4.7 mm	0.187 in

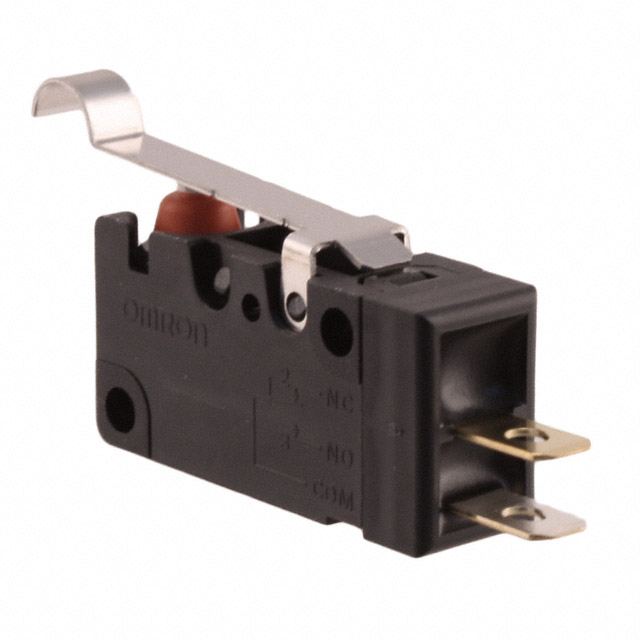

Omron Electronics Inc-EMC Div D2VW-01L3-3HS	100 mA	15 gf	Lever Simulated Roller	IP67 - Dust Tight Waterproof	1000000 Cycles	0.031 in	0.8 mm	SPST-NO	4 mm	0.157 in	0.062 "	1.6 mm	Chassis Mount	30 V	18.7 mm	0.738 in	10000000 Cycles	Off-Mom	120 gf	85 °C	-40 C	Solder Quick Connect	125 V	4.7 mm	0.187 in
Omron Electronics Inc-EMC Div D2VW-5L1-1M	5 A	15 gf	Lever Straight	IP67 - Dust Tight Waterproof	100000 Cycles	0.031 in	0.8 mm	SPDT	4 mm	0.157 in	0.062 "	1.6 mm	Chassis Mount	30 V	15.2 mm	0.6 in	10000000 Cycles	On-Mom	120 gf	85 °C	-40 C	Wire Leads	125 V

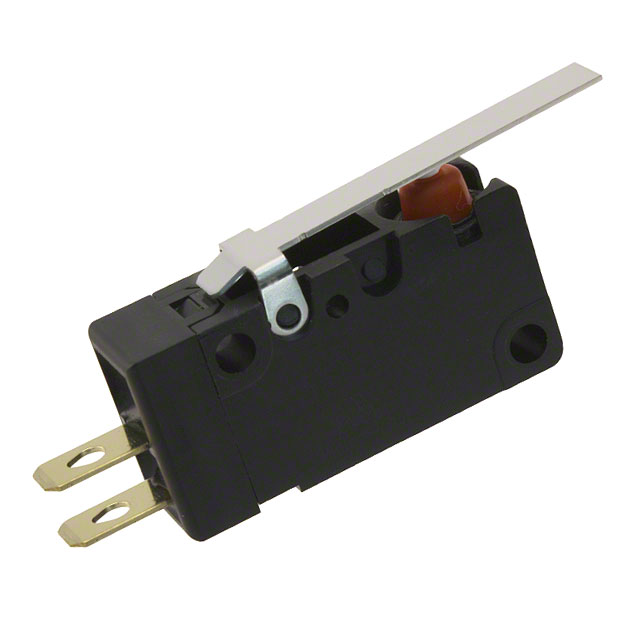

Omron Electronics Inc-EMC Div D2VW-5L1-3HS	5 A	15 gf	Lever Straight	IP67 - Dust Tight Waterproof	100000 Cycles	0.031 in	0.8 mm	SPST-NO	4 mm	0.157 in	0.062 "	1.6 mm	Chassis Mount	30 V	15.2 mm	0.6 in	10000000 Cycles	Off-Mom	120 gf	85 °C	-40 C	Solder Quick Connect	125 V	4.7 mm	0.187 in

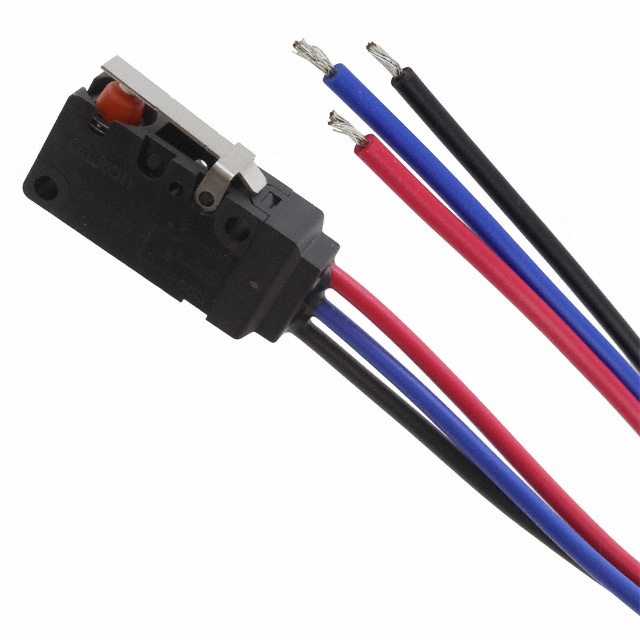

Omron Electronics Inc-EMC Div D2VW-01L1A-1MS	100 mA	20 gf	Lever Straight	IP67 - Dust Tight Waterproof	1000000 Cycles	0.02 in	0.5 mm	SPDT	1.6 mm	0.063 in	0.03 "	0.76 mm	Chassis Mount	30 V	15.2 mm	0.6 in	10000000 Cycles	On-Mom	0.2 kgf	85 °C	-40 C	Wire Leads	125 V
