9SG1224 Series

Catalog

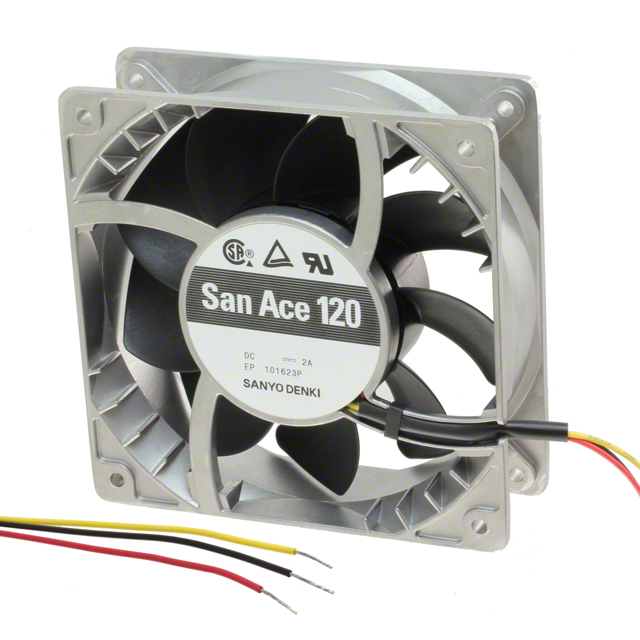

FAN AXIAL 119X38MM 24VDC WIRE

Part	Air Flow	Air Flow	Material - Frame	Material - Blade	Lifetime @ Temp.	Termination	Power (Watts)	Voltage - Rated	Fan Type	Noise	Weight [custom]	Weight [custom]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Bearing Type	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Features	RPM	Static Pressure	Static Pressure	Approval Agency	Current Rating (Amps)	Size / Dimension [z]
Sanyo Denki America Inc. 9SG1224G101	260 CFM	7.28 mł/min	Aluminum	Plastic	40000 Hrs	3 Wire Leads	48 W	24 VDC	Tubeaxial	64 dB(A)	0.882 lb	400.07 g	Square	119 mm	119 mm	Ball	38 mm	-20 ░C	70 °C	Locked Rotor Protection Speed Sensor (Tach)	6000 RPM	341.2 Pa	1.37 in H2O	CSA TUV UL
Sanyo Denki America Inc. 9SG1224H1D01	142 CFM	3.98 m³/min	Aluminum	Plastic	40000 Hrs	3 Wire Leads	11 W	24 VDC	Tubeaxial	48 dB	0.882 lb	400.07 g		120 mm		Ball	38 mm	-20 ░C	70 °C	Locked Rotor Sensor	3400 RPM	127 Pa	0.51 in H2O	CSA TUV UL	460 mA	120 mm
Sanyo Denki America Inc. 9SG1224H101	142 CFM	3.98 m³/min	Aluminum	Plastic	40000 Hrs	3 Wire Leads	11 W	24 VDC	Tubeaxial	48 dB	0.882 lb	400.07 g	Square	119 mm	119 mm	Ball	38 mm	-20 ░C	70 °C	Locked Rotor Protection Speed Sensor (Tach)	3400 RPM	127 Pa	0.51 in H2O		460 mA
Sanyo Denki America Inc. 9SG1224P1G01	260 CFM	7.28 mł/min	Aluminum	Plastic	40000 Hrs	4 Wire Leads	48 W	24 VDC	Tubeaxial	64 dB(A)	0.882 lb	400.07 g	Square	119 mm	119 mm	Ball	38 mm	-20 ░C	70 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	6000 RPM	341.2 Pa	1.37 in H2O	CSA TUV UL
Sanyo Denki America Inc. 9SG1224G1D01	260 CFM	7.28 mł/min	Aluminum	Plastic	40000 Hrs	3 Wire Leads	48 W	24 VDC	Tubeaxial	64 dB(A)	0.882 lb	400.07 g		120 mm		Ball	38 mm	-20 ░C	70 °C	Locked Rotor Sensor	6000 RPM	341.2 Pa	1.37 in H2O	CSA TUV UL		120 mm
