TCG121 Series

Catalog

LCD TFT DISPLAY

Part	Dot Pixels [x]	Dot Pixels [y]	Interface	Backlight	Display Mode	Dot Pitch [y]	Dot Pitch [x]	Graphics Color	Display Type	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [x]	Viewing Area [y]	Dot Pitch [z]
Kyocera International, Inc. TCG121SVLQAPFA-AA20	800 pixels	600	LVDS	LED	Transmissive

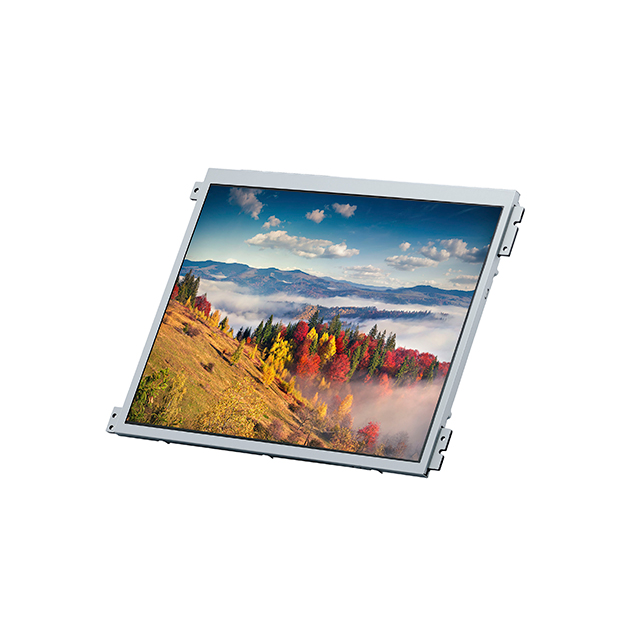

Kyocera International, Inc. TCG121SVLQAPNN-AN20			LVDS	LED - White	Transmissive	0.31 mm	0.1 mm	Blue Green Red	TFT - Color	307.34 mm	12.1 "	246 mm	184.5 mm
Kyocera International, Inc. TCG121SVLPAANN-AN20			LVDS	LED - White	Transmissive	0.31 mm	0.1 mm	Blue Green Red	TFT - Color	307.34 mm	12.1 "	246 mm	184.5 mm
Kyocera International, Inc. TCG121SVLPBAFA-AA00				LED - White	Transmissive	0.31 mm	0.1 mm	Blue Green Red	TFT - Color	307.34 mm	12.1 "	246 mm	184.5 mm
Kyocera International, Inc. TCG121XGLPCPNN-AN70	1024	768	LVDS	LED - White	Transmissive	0.08 mm		Blue Green Red	TFT - Color	307.34 mm	12.1 "			0.24 mm
Kyocera International, Inc. TCG121WXLPAPNN-AN20	1280	800	LVDS	LED - White	Transmissive	0.2 mm	0.07 mm	Blue Green Red	TFT - Color	307.34 mm	12.1 "	261.12 mm	163.2 mm

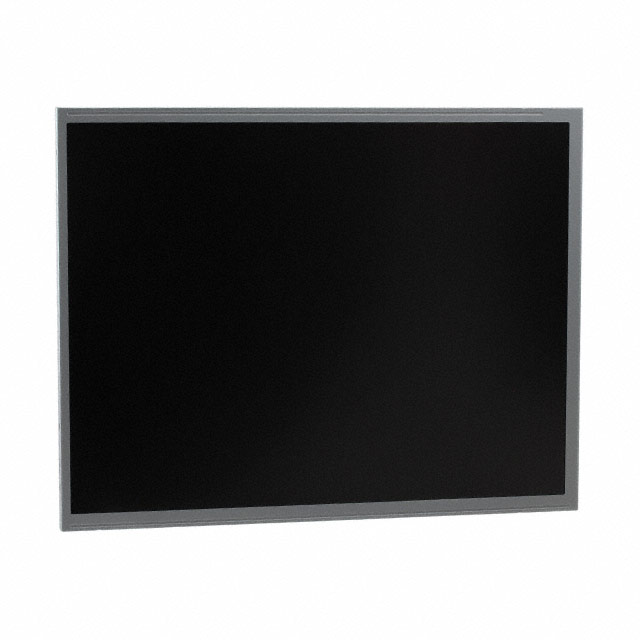

Kyocera International, Inc. TCG121XGLPBPNN-AN40	1024	768	LVDS	LED - White	Transmissive	0.2 mm	0.07 mm	Blue Green Red	TFT - Color	307.34 mm	12.1 "	261.12 mm	163.2 mm
Kyocera International, Inc. TCG121SVLPAAFA-AA20			LVDS	LED - White	Transmissive	0.31 mm	0.1 mm	Blue Green Red	TFT - Color	307.34 mm	12.1 "	246 mm	184.5 mm
