SH12 Series

Catalog

PCBPLUG 5MMPIN IMPRINTED 1-12 LE

Part	Mounting Type	Pitch	Number of Positions	Number of Levels	Wire Gauge or Range - mm²	Contact Mating Finish	Features	Current - UL	Positions Per Level	Type	Termination Style	Voltage - IEC	Voltage - UL	Plug Wire Entry Angle	Operating Temperature	Current - IEC	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Color	Housing Material	Material Flammability Rating	Torque - Screw	Wire Strip Length	Contact Material	Insulation Height	Screw Size	Operating Temperature (Min)	Operating Temperature (Max)	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)
Altech Corporation SH12-5,00/IA	Free Hanging (In-Line)	0.197 in	12	1	4 mm²	Nickel	Retention Latches (Non-Wire Side)	12 A	12	Female Sockets Plug	Screw - Rising Cage Clamp	450 V	300 V	180 °	105 °C	16 A	30 AWG	14 AWG	Green
Altech Corporation SH12-3,81	Free Hanging (In-Line)	0.15 in	12	1	1.5 mm²	Tin		8 A	12	Female Sockets Plug	Screw - Rising Cage Clamp	130 V	300 V	180 °	105 °C	8 A	30 AWG	16 AWG	Green
Altech Corporation SH12-5,08	Free Hanging (In-Line)	5.08 mm	12	1	4 mm²	Nickel	Retention Latches (Non-Wire Side)	12 A	12	Female Sockets Plug	Screw - Rising Cage Clamp	450 V	300 V	180 °	105 °C	16 A	30 AWG	14 AWG	Green
Altech Corporation SH12-10,00	Free Hanging (In-Line)	0.394 in	12	1	4 mm²	Nickel	Retention Latches (Non-Wire Side)	12 A	12	Female Sockets Plug	Screw - Rising Cage Clamp	750 V	300 V	180 °	105 °C	16 A	30 AWG	14 AWG	Green

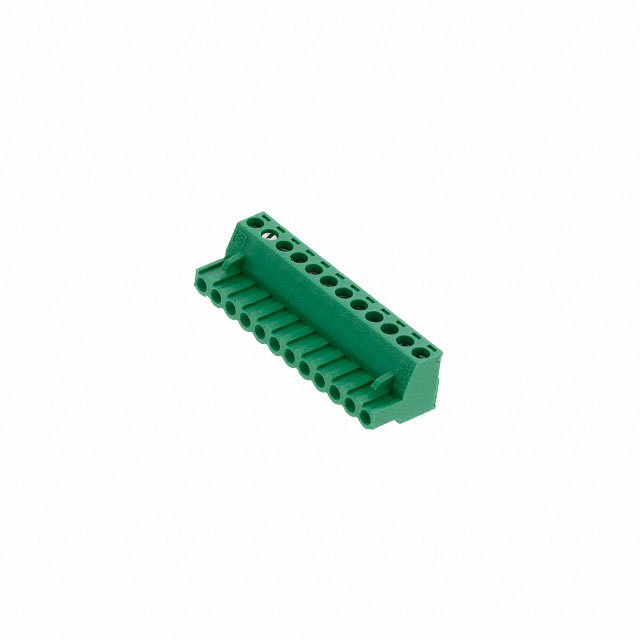

Altech Corporation SH12-5,00	Free Hanging (In-Line)	0.197 in	12	1	2.5 mm²	Nickel	Retention Latches (Non-Wire Side)	12 A	12	Female Sockets Plug	Screw - Rising Cage Clamp	450 V	300 V	180 °		16 A	30 AWG	14 AWG	Green	Nylon PA Polyamide	UL94 V-0	0.5 Nm	7.5 mm	Brass	0.61 in	M3
Altech Corporation SH12-10,16	Free Hanging (In-Line)	0.4 in	12	1	4 mm²	Nickel	Retention Latches (Non-Wire Side)	12 A	12	Female Sockets Plug	Screw - Rising Cage Clamp	750 V	300 V	180 °	105 °C	16 A	30 AWG	14 AWG	Green
Altech Corporation SH12-3,81-K	Free Hanging (In-Line)	0.15 in	12	1		Nickel	Mating Flange	11 A	12	Female Sockets Plug	Screw - Leaf Spring Wire Guard	160 V	300 V	180 °		8 A	30 AWG	14 AWG	Green								-30 °C	105 °C	1.5 mm²	0.25 mm²

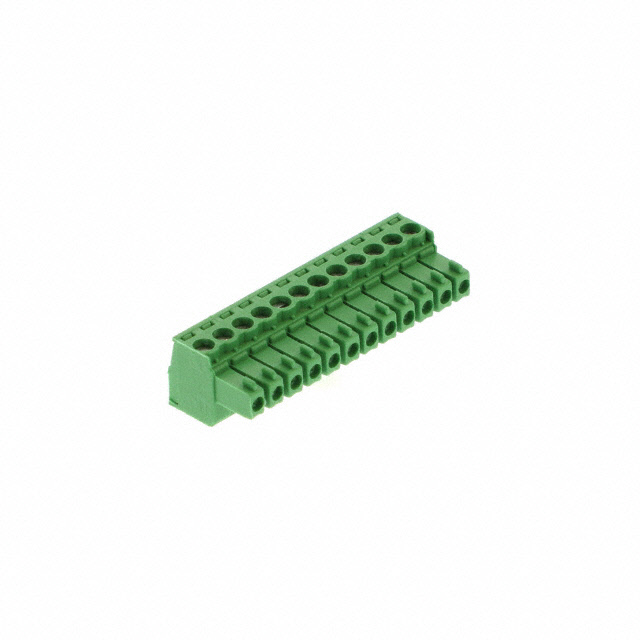

Altech Corporation SH12-3,50	Free Hanging (In-Line)	0.138 in	12	1		Nickel		11 A	12	Female Sockets Plug	Screw - Rising Cage Clamp	160 V	300 V	180 °		8 A	30 AWG	14 AWG	Green	Nylon PA Polyamide	UL94 V-0	0.25 Nm	8 mm	Copper Alloy		M2	-30 °C	105 °C	1.5 mm²	0.25 mm²
Altech Corporation SH12-7,50
