2823080 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P,2MM,BRK HDR,SRVT,2.8,0.1AU,TB

Part	Contact Material	Contact Type	Insulation Color	Overall Contact Length	Overall Contact Length	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Shape	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions	Number of Rows	Shrouding	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Mounting Type	Number of Positions Loaded	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Voltage Rating	Contact Finish - Post
TE Connectivity Raychem Cable Protection 2823080-6	Phosphor Bronze	Male Pin	Black	8.3 mm	0.327 in	0.079 in	2 mm	Solder	0.11 in	2.8 mm	1.5 mm	0.059 "	Square	Thermoplastic	-40 °C	105 ░C	2 A	6	1	Unshrouded	Breakaway Header	4 mm	0.157 in	3.94 µin	0.1 µm	Gold	Through Hole	All	UL94 V-0	0.3 µm	12 µin	Push-Pull	125 VAC	Tin

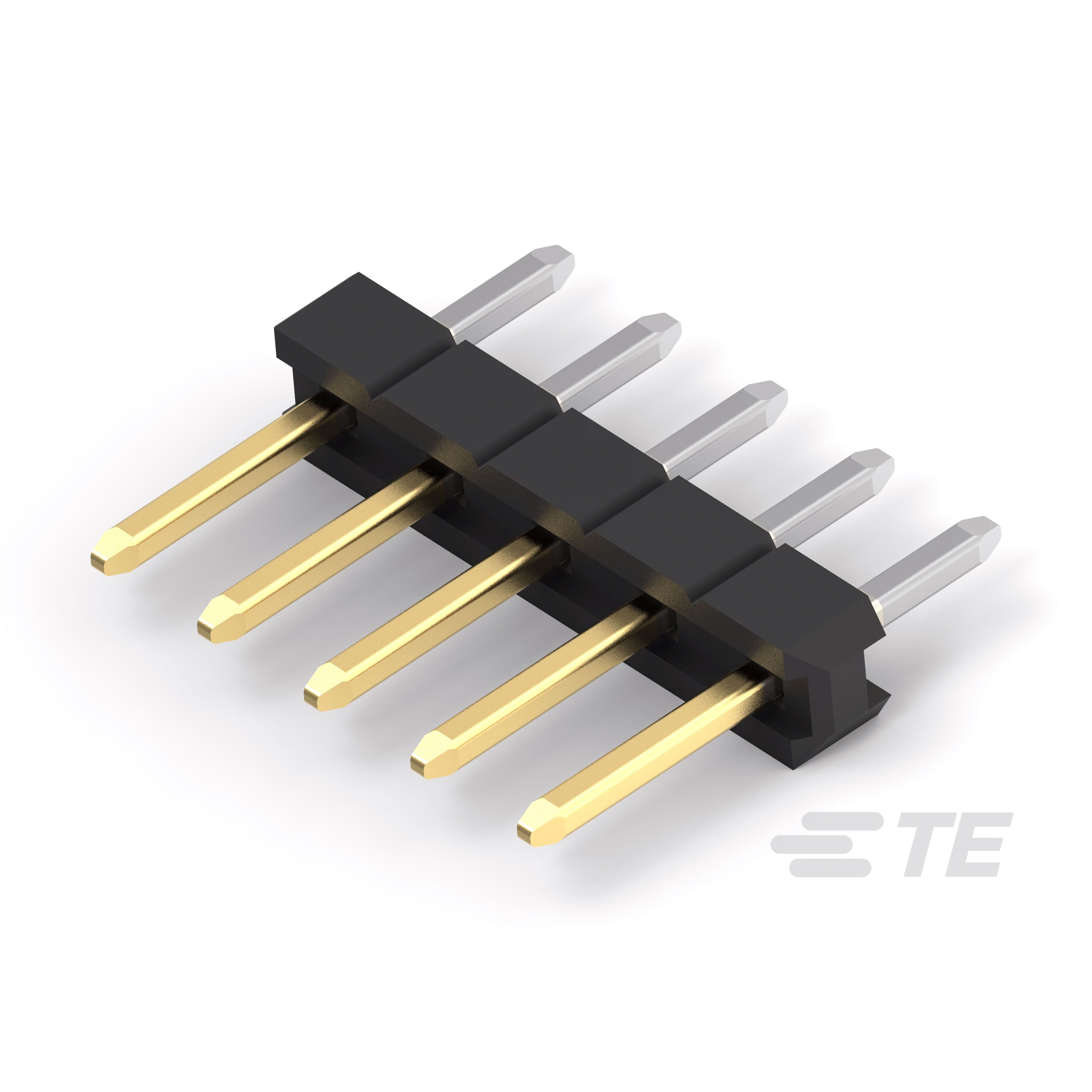

TE Connectivity Raychem Cable Protection 2823080-5	Phosphor Bronze	Male Pin	Black	8.3 mm	0.327 in	0.079 in	2 mm	Solder	0.11 in	2.8 mm	1.5 mm	0.059 "	Square	Thermoplastic	-40 °C	105 ░C	2 A		1	Unshrouded	Breakaway Header	4 mm	0.157 in	3.94 µin	0.1 µm	Gold	Through Hole	All	UL94 V-0	0.3 µm	12 µin	Push-Pull	125 VAC	Tin
TE Connectivity Raychem Cable Protection 1-2823080-0	Phosphor Bronze	Male Pin	Black	8.3 mm	0.327 in	0.079 in	2 mm	Solder	0.11 in	2.8 mm	1.5 mm	0.059 "	Square	Thermoplastic	-40 °C	105 ░C	2 A	10	1	Unshrouded	Breakaway Header	4 mm	0.157 in	3.94 µin	0.1 µm	Gold	Through Hole	All	UL94 V-0	0.3 µm	12 µin	Push-Pull	125 VAC	Tin
TE Connectivity Raychem Cable Protection 2823080-8	Phosphor Bronze	Male Pin	Black	8.3 mm	0.327 in	0.079 in	2 mm	Solder	0.11 in	2.8 mm	1.5 mm	0.059 "	Square	Thermoplastic	-40 °C	105 ░C	2 A	8	1	Unshrouded	Breakaway Header	4 mm	0.157 in	3.94 µin	0.1 µm	Gold	Through Hole	All	UL94 V-0	0.3 µm	12 µin	Push-Pull	125 VAC	Tin
TE Connectivity Raychem Cable Protection 2-2823080-5	Phosphor Bronze	Male Pin	Black	8.3 mm	0.327 in	0.079 in	2 mm	Solder	0.11 in	2.8 mm	1.5 mm	0.059 "	Square	Thermoplastic	-40 °C	125 °C	2 A		1	Unshrouded	Breakaway Header	4 mm	0.157 in	3.94 µin	0.1 µm	Gold	Through Hole	All	UL94 V-0	0.3 µm	12 µin	Push-Pull	125 VAC	Tin

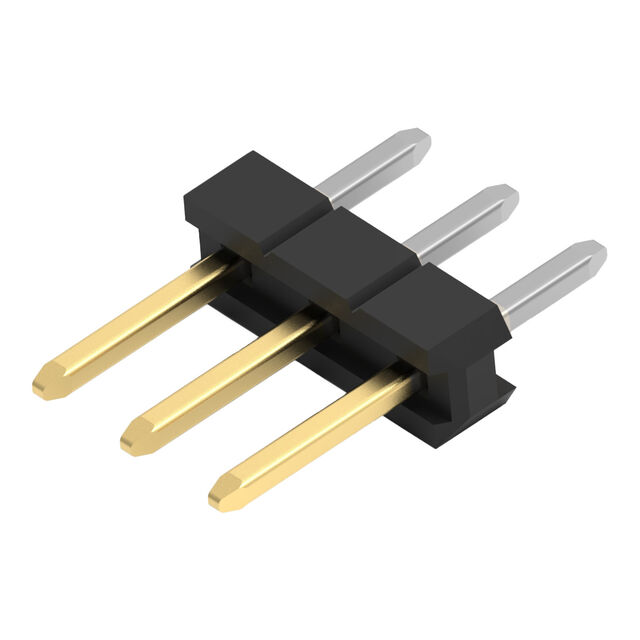

TE Connectivity Raychem Cable Protection 2823080-3	Phosphor Bronze	Male Pin	Black	8.3 mm	0.327 in	0.079 in	2 mm	Solder	0.11 in	2.8 mm	1.5 mm	0.059 "	Square	Thermoplastic	-40 °C	105 ░C	2 A		1	Unshrouded	Breakaway Header	4 mm	0.157 in	3.94 µin	0.1 µm	Gold	Through Hole	All	UL94 V-0	0.3 µm	12 µin	Push-Pull	125 VAC	Tin
