MGN-2AM Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

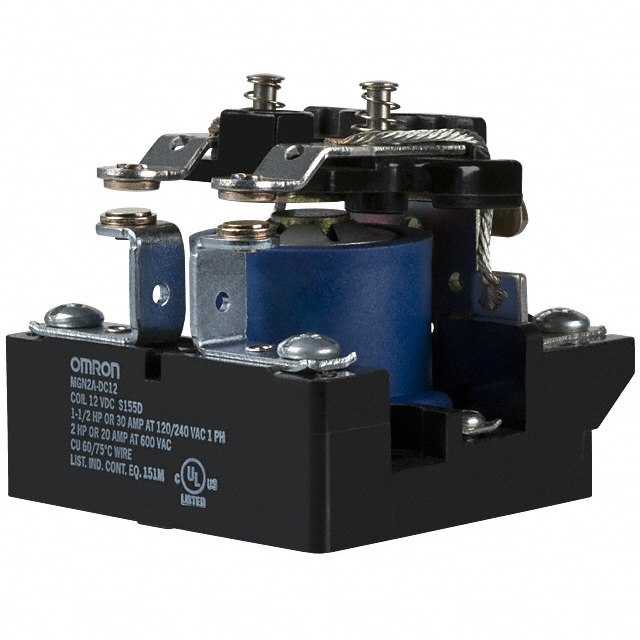

RELAY GEN PURPOSE DPST 30A 120V
| Part | Switching Voltage | Mounting Type | Release Time | Operating Temperature [Min] | Operating Temperature [Max] | Coil Insulation | Contact Rating (Current) | Relay Type | Contact Form | Coil Voltage | Load - Max Switching | Must Operate Voltage | Coil Resistance | Termination Style | Operate Time | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 28 VDC 600 VAC | Chassis Mount | 30 ms | -45 °C | 80 C | Class F | 30 A | General Purpose | DPST-NO (2 Form A) | 120 VAC | 840 W 18000 VA | 102 VAC | 295 Ohms | Screw Terminal | 30 ms | Non Latching |
