222R Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 4.1"L X 2.6"W

Part	Weight [custom]	Weight [custom]	Ratings	Thickness	Thickness	Height [z]	Height [z]	Material	Color	Design	Features	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W)	Area (L x W)	Material Flammability Rating

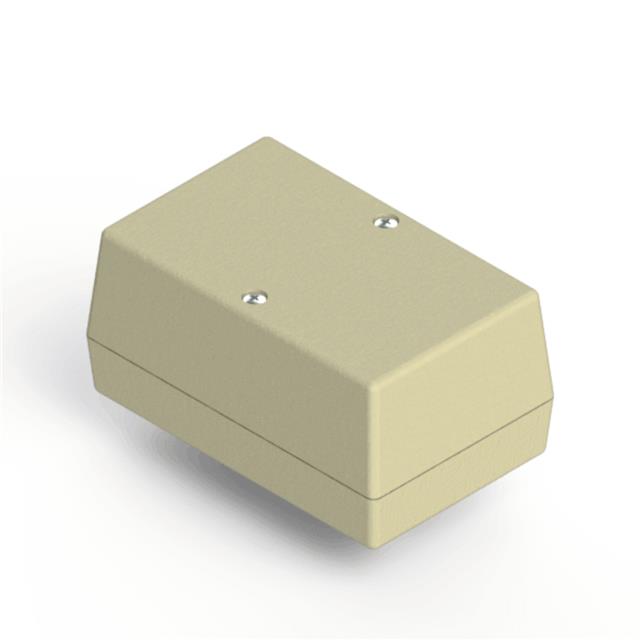

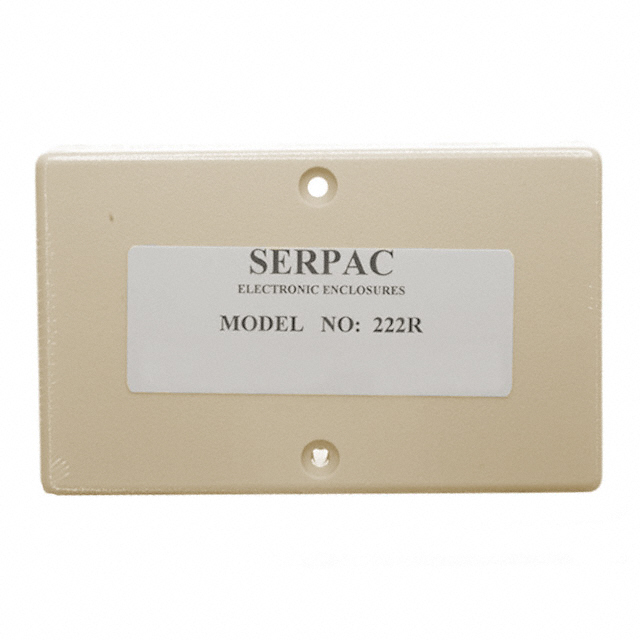

Serpac 222R,AL	0.174 lb	78.93 g	IP40 NEMA 1	2.54 mm	0.1 in	50.8 mm	2 in	ABS Plastic	Almond	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	Box	2.6 in	104.14 mm	4.1 "	66.04 mm	69 cm²	10.7 in²	UL94 HB
Serpac 222RI,GY	0.174 lb	78.93 g	IP40 NEMA 1	2.54 mm	0.1 in	50.8 mm	2 in	ABS Plastic	Gray	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	Box	2.6 in	104.14 mm	4.1 "	66.04 mm	69 cm²	10.7 in²	UL94 HB

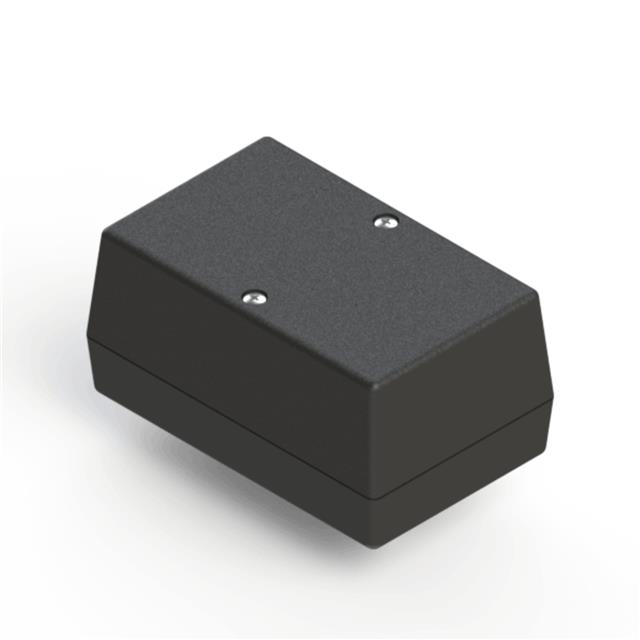

Serpac 222R,BK	0.174 lb	78.93 g	IP40 NEMA 1	2.54 mm	0.1 in	50.8 mm	2 in	ABS Plastic	Black	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	Box	2.6 in	104.14 mm	4.1 "	66.04 mm	69 cm²	10.7 in²	UL94 HB
Serpac 222RI,AL	0.174 lb	78.93 g	IP40 NEMA 1	2.54 mm	0.1 in	50.8 mm	2 in	ABS Plastic	Almond	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	Box	2.6 in	104.14 mm	4.1 "	66.04 mm	69 cm²	10.7 in²	UL94 HB

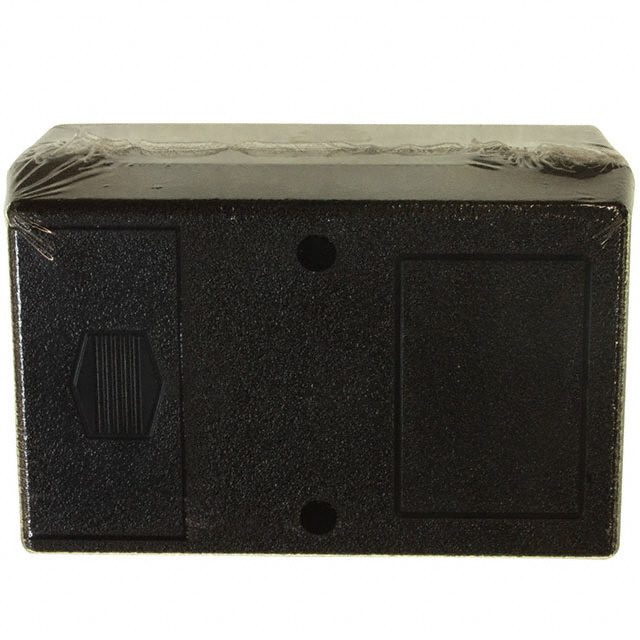

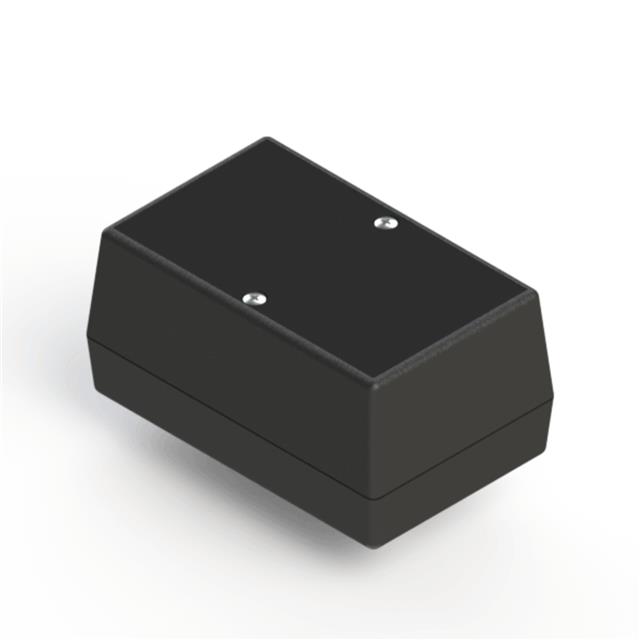

Serpac 222RI,BK	0.174 lb	78.93 g	IP40 NEMA 1	2.54 mm	0.1 in	50.8 mm	2 in	ABS Plastic	Black	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	Box	2.6 in	104.14 mm	4.1 "	66.04 mm	69 cm²	10.7 in²	UL94 HB

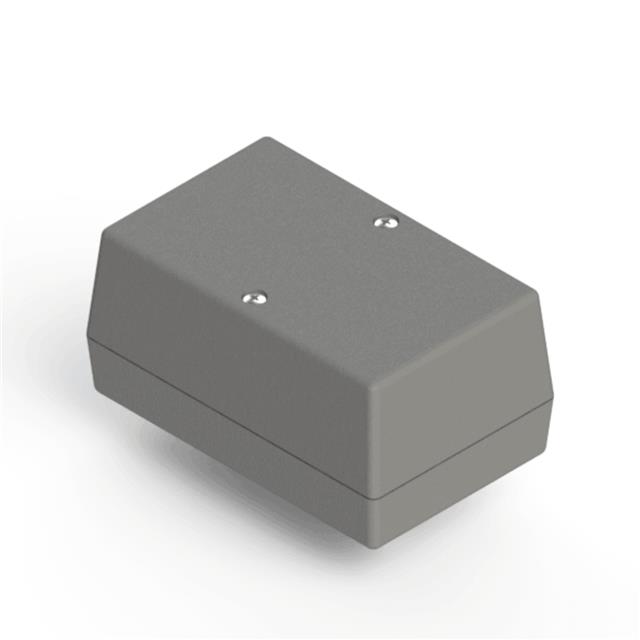

Serpac 222R,GY	0.174 lb	78.93 g	IP40 NEMA 1	2.54 mm	0.1 in	50.8 mm	2 in	ABS Plastic	Gray	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	Box	2.6 in	104.14 mm	4.1 "	66.04 mm	69 cm²	10.7 in²	UL94 HB
