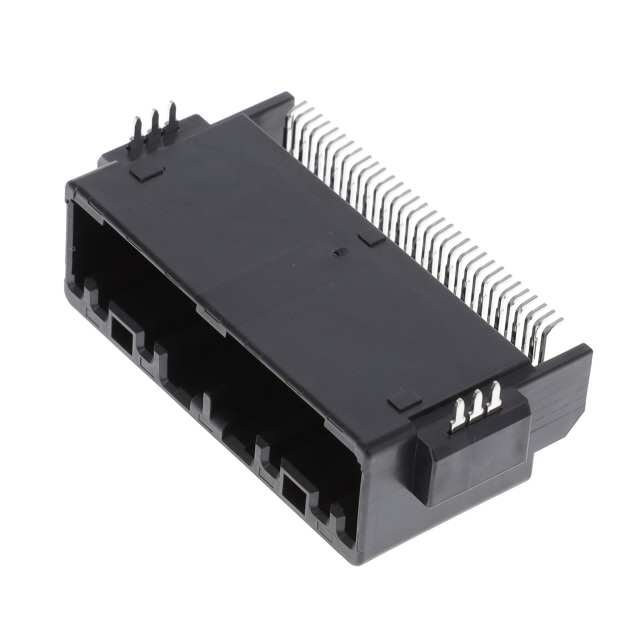

MX34R32H Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN HEADER SMD R/A 32POS 2.2MM
| Part | Applications | Shrouding | Insulation Height | Insulation Height | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Mounting Type | Contact Shape | Fastening Type | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Connector Type | Contact Length - Mating | Contact Length - Mating | Number of Rows [custom] | Current Rating (Amps) | Style | Features | Contact Finish - Post | Contact Type | Number of Positions Loaded | Insulation Material | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | Shrouded - 4 Wall | 13.8 mm | 0.543 in | Solder | 85 °C | -40 C | Copper Alloy | Right Angle Surface Mount | Square | Locking Ramp | 0.087 in | 2.2 mm | 0.118 in | 3 mm | Header | 0.303 in | 7.7 mm | 2 | 3 A | Board to Cable/Wire | Solder Retention | Tin | Male Pin | All | Polyphenylene Sulfide (PPS) Glass Filled | Black |
