02193.15 Series
Manufacturer: LITTELFUSE
Catalog
Description
AI

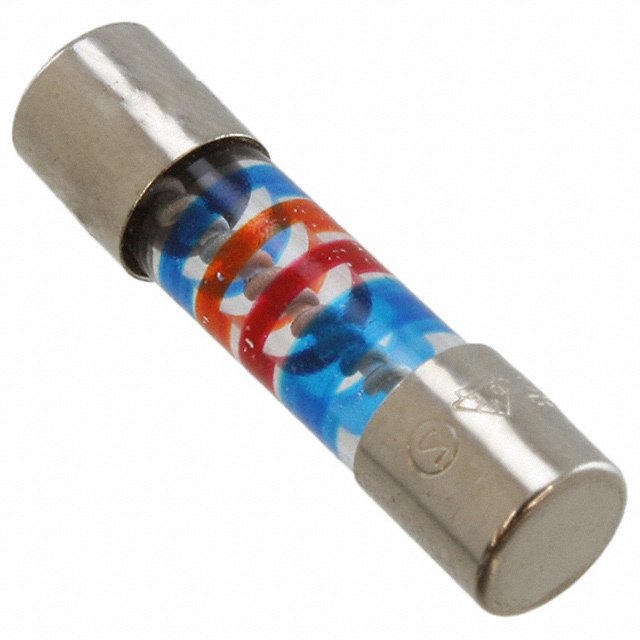

5x20mm time-Lag glass body cartridge fuse designed to IEC specification
Beta
⌘K
FUSE, CARTRIDGE, TIME DELAY, 3.15 A, 250 V, 5MM X 20MM, 0.2" X 0.79", 219XA SERIES
| Part | DC Cold Resistance | Response Time | Package / Case [x] | Package / Case [y] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Mounting Type | Approval Agency | Current Rating (Amps) | Breaking Capacity @ Rated Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Fuse Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.0231 Ohms | Slow Blow | 5 mm | 20 mm | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Requires Holder | BSI CCC CE CSA PSE SEMKO UR VDE | 3.15 A | 150 A | -55 C | 125 °C | 250 V | Cartridge Glass | |
LITTELFUSE | Slow Blow | 5 mm | 20 mm | 22.5 mm | 0.228 " | 0.886 in | 5.8 mm | Through Hole | CCC CE CSA PSE SEMKO UL VDE | 3.15 A | 150 A | -55 C | 125 °C | 250 V | Cartridge Glass | Axial | |
LITTELFUSE | 0.0231 Ohms | Slow Blow | 5 mm | 20 mm | 22.5 mm | 0.228 " | 0.886 in | 5.8 mm | Through Hole | CCC CE CSA PSE SEMKO UL VDE | 3.15 A | 150 A | -55 C | 125 °C | 250 V | Cartridge Glass | Axial |
