1658612 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN D-SUB RCPT 9POS IDC
| Part | Connector Type | Color | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Dielectric Material | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Wire Gauge [Min] | Wire Gauge [Max] | Wire Gauge | Features | Connector Style | Contact Type | Termination | Mounting Type | Flange Feature | Material Flammability Rating | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Number of Rows | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

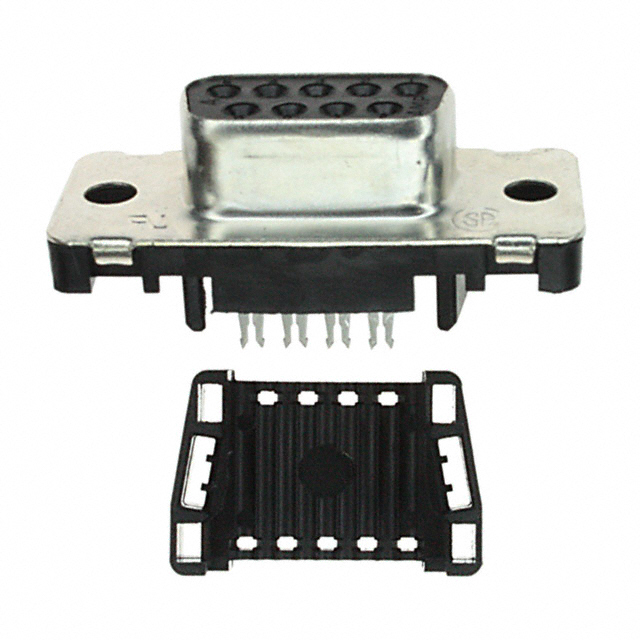

 TE Connectivity Raychem Cable Protection | Receptacle Female Sockets | Black | 0.76 Ám | 30 Áin | 1.25 A | Thermoplastic | 9 | DE E | 1 | 26 AWG | 28 AWG | Solid Stranded | Feed Through | D-Sub | Signal | IDC Ribbon Cable | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | UL94 V-0 | Gold | 105 ░C | -55 °C | Phosphor Bronze | 2 | |

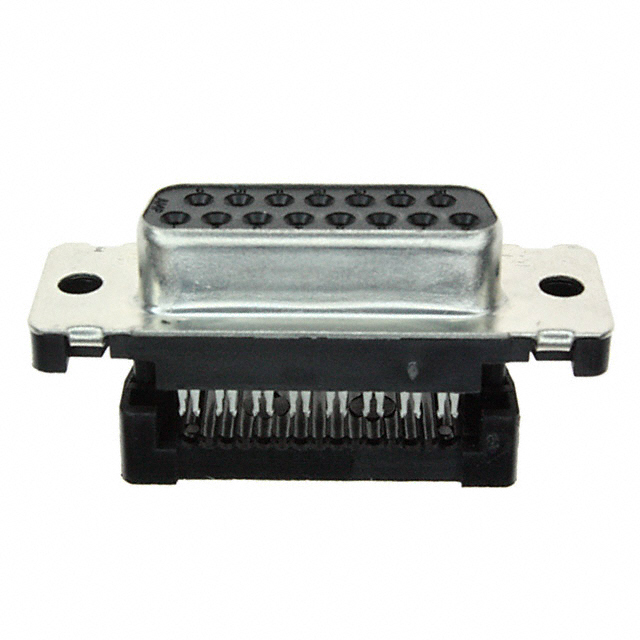

 TE Connectivity Raychem Cable Protection | Receptacle Female Sockets | Black | 0.76 Ám | 30 Áin | 1.25 A | Thermoplastic | 15 | 26 AWG | 28 AWG | Solid Stranded | Feed Through | D-Sub | Signal | IDC Ribbon Cable | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | UL94 V-0 | Gold | 105 ░C | -55 °C | Phosphor Bronze | 2 | 2 |
