Q5-3X-3/16 Series
Manufacturer: Qualtek
Beta
⌘K

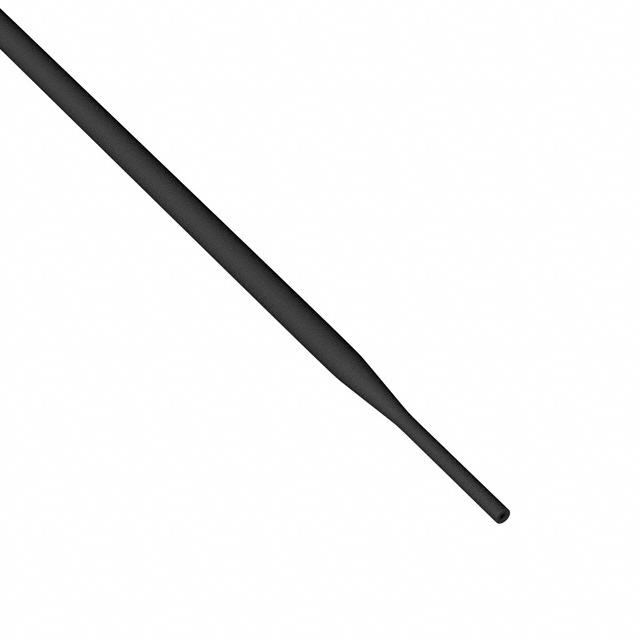

HEATSHRINK 3/16"-6" BLACK 1=24PC
| Part | Shrinkage Ratio | Inner Diameter - Recovered [diameter] | Inner Diameter - Recovered [diameter] | Shelf Life | Shrink Temperature | Inner Diameter - Supplied [diameter] | Inner Diameter - Supplied [diameter] | Material | Features | Color | Operating Temperature [Min] | Operating Temperature [Max] | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Length | Length | Length | Type | Recovered Wall Thickness | Recovered Wall Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 3 to 1 | 1.52 mm | 0.06 in | 60 Months | 80 °C | 0.187 " | 4.75 mm | Polyolefin (PO) | Adhesive Lined Flame Retardant | Black | -55 C | 125 °C | 40 °C | 14 °F | -50 °F | 40 °C | 152.4 mm | 0.5 ' | 6 " | Tubing Flexible | 0.99 mm | 0.039 in | ||
 Qualtek | 3 to 1 | 1.52 mm | 0.06 in | 60 Months | 80 °C | 0.187 " | 4.75 mm | Polyolefin (PO) | Adhesive Lined Flame Retardant | Black | -55 C | 125 °C | 40 °C | 14 °F | -50 °F | 40 °C | Tubing Flexible | 0.99 mm | 0.039 in | 4 ft | 1.22 m | |||
 Qualtek | 3 to 1 | 1.52 mm | 0.06 in | 60 Months | 80 °C | 0.187 " | 4.75 mm | Polyolefin (PO) | Adhesive Lined Flame Retardant | Black | -55 C | 125 °C | 40 °C | 14 °F | -50 °F | 40 °C | Tubing Flexible | 0.99 mm | 0.039 in | 328.1 ft | 100 m |
