GU128 Series

Catalog

VFD GRAPHIC DISPLAY 128X32 GU-D

Part	Interface	Number of Dots (Height)	Number of Dots (Width)	Format Height (Dots)	Format Width (Dots)	Voltage - Supply	Operating Temperature (Min)	Operating Temperature (Max)	Display Columns	Display Rows	Outline Width	Outline Length	Outline Height	Viewing Area Length	Viewing Area Width	Display Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)

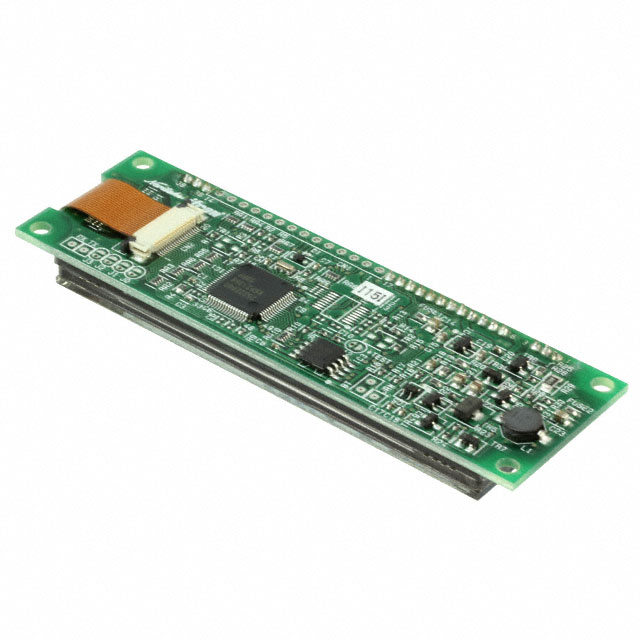

Noritake U.S.A., Inc. GU128X32D-D903S	I2C SPI	32 dots	128 dots	7 Dots	5 Dots	5 VDC	-40 °C	85 °C	8	2	31 mm	98 mm	9.6 mm	57.5 mm	13.9 mm	Graphic

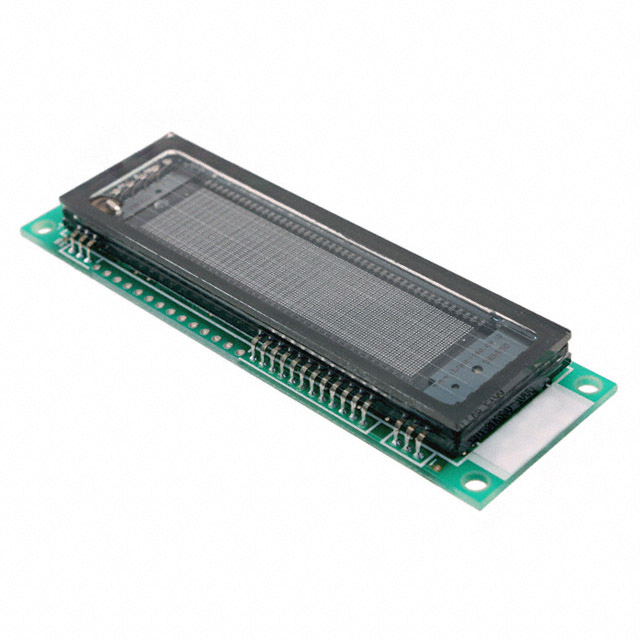

Noritake U.S.A., Inc. GU128X32D-7000	Parallel/Serial	32 dots	128 dots	7 Dots	5 Dots	5 VDC	-40 °C	85 °C	21	4				57.45 mm	13.93 mm	Graphic

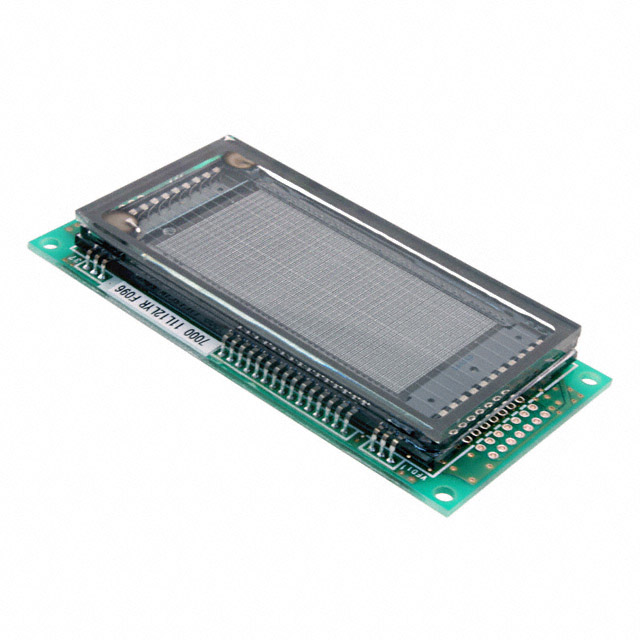

Noritake U.S.A., Inc. GU128X64D-7000	Parallel/Serial	64 dots	128 dots	7 Dots	5 Dots		-40 °C	85 °C						57.5 mm	28.7 mm	Graphic	5.25 V	4.75 V

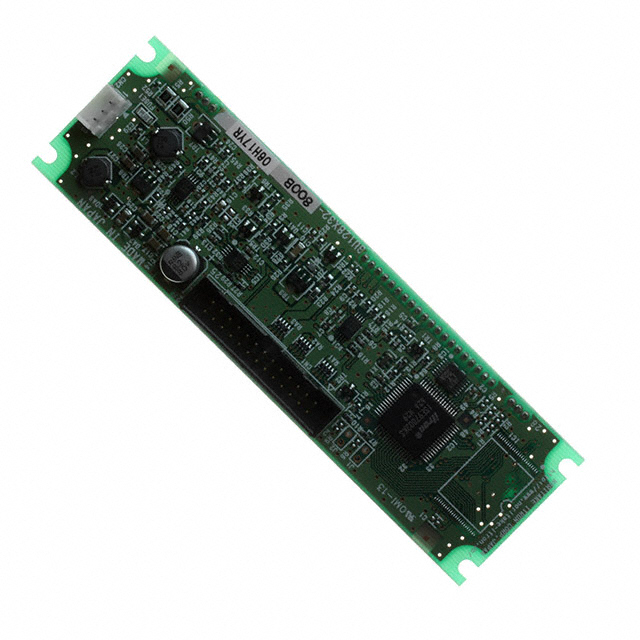

Noritake U.S.A., Inc. GU128X32-800B	Parallel/Serial	32 dots	128 dots	7 Dots	5 Dots		-40 °C	85 °C	21	4				83.1 mm	20.7 mm	Graphic

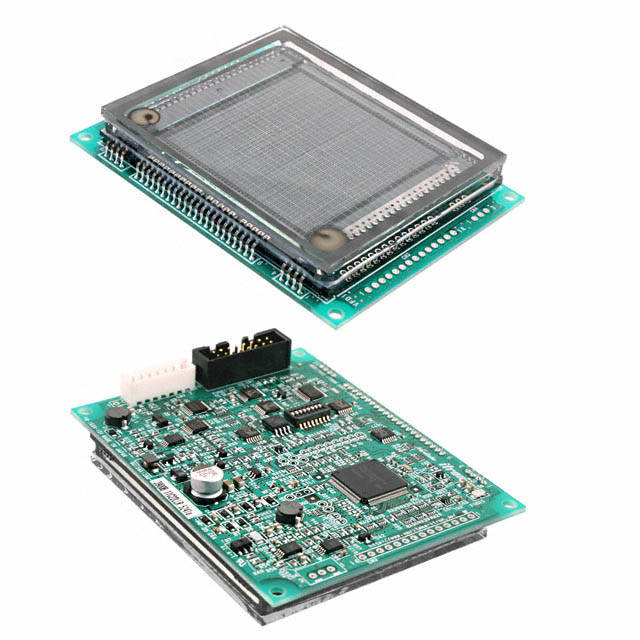

Noritake U.S.A., Inc. GU128X128D-3900B	Parallel/Serial	128 dots	128 dots			5 VDC	-40 °C	85 °C	128 px	128 px	75 mm	96.5 mm	12.5 mm	51.1 mm	51.1 mm	Graphic
