GBC19S Series

Catalog

CONN HEADER SMD R/A 19POS 2.54MM

Part	Fastening Type	Contact Shape	Number of Positions Loaded	Style	Number of Positions	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Connector Type	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating	Number of Rows	Contact Finish - Mating	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Mounting Type	Contact Finish - Post	Termination	Contact Length - Mating [x]

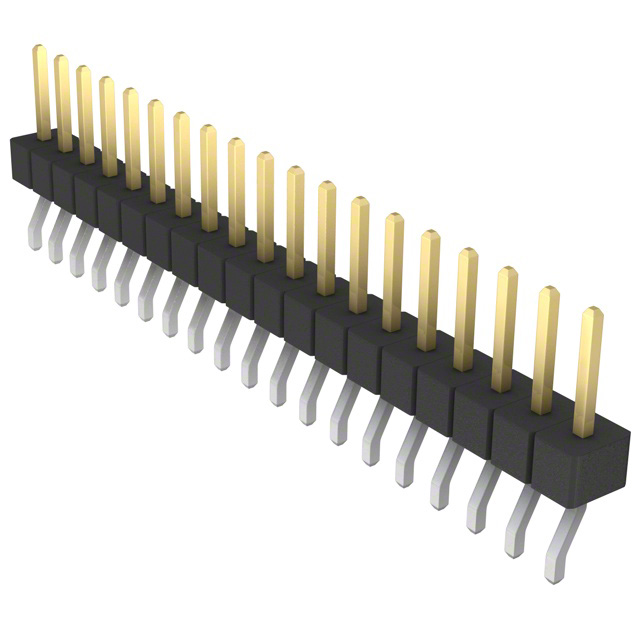

Sullins Connector Solutions GBC19SBSN-M89	Push-Pull	Square	All	Board to Board Cable	19	UL94 V-0	0.1 in	2.54 mm	10 çin	0.25 çm	Unshrouded	Male Pin	Phosphor Bronze	-65 ░C	150 °C	3 A	Breakaway Header	3.56 mm	0.14 in	0.23 in	5.84 mm	1	Gold	Nylon 9T Polyamide (PA9T)	2.54 µm	100 µin	Black	Surface Mount Right Angle	Tin	Solder
Sullins Connector Solutions GBC19SABN-M30	Push-Pull	Square	All	Board to Board Cable	19	UL94 V-0	0.1 in	2.54 mm	10 çin	0.25 çm	Unshrouded	Male Pin	Phosphor Bronze	-65 ░C	150 °C	3 A	Breakaway Header	2.54 mm	0.1 in	0.23 in	5.84 mm	1	Gold	Nylon 9T Polyamide (PA9T)	2.54 µm	100 µin	Black	Surface Mount	Tin	Solder
Sullins Connector Solutions GBC19SFBN-M30	Push-Pull	Square	All	Board to Board Cable	19	UL94 V-0	0.1 in	2.54 mm	10 çin	0.25 çm	Unshrouded	Male Pin	Phosphor Bronze	-65 ░C	150 °C	3 A	Breakaway Header	2.54 mm	0.1 in	0.318 "		1	Gold	Nylon 9T Polyamide (PA9T)	2.54 µm	100 µin	Black	Surface Mount	Tin	Solder	8.08 mm
