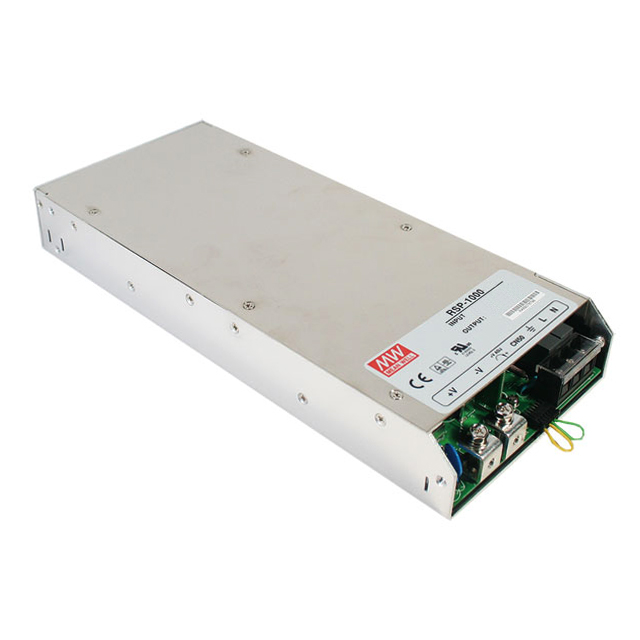

RSP-1000 Series

Catalog

AC/DC CONVERTER 48V 1000W

Part	Features	Current - Output 1	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Type	Number of Outputs	Mounting Type	Voltage - Output 1	Power (Watts)	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Isolation
MEAN WELL USA Inc. RSP-1000-48	Adjustable Output PFC Remote On/Off Universal Input	21 A	ITE (Commercial)	60 °C	-20 °C	CB CE cURus TUV	Enclosed	1	Chassis Mount	48 V	1 kW	90 %	1.61 "	295 mm	5 in	11.61 in	5 in	41 mm	264 VAC 370 VDC	90 VAC 127 VDC	3000 V
MEAN WELL USA Inc. RSP-1000-27	Adjustable Output PFC Remote On/Off Universal Input	37 A	ITE (Commercial)	60 °C	-20 °C	CB CE cURus TUV	Enclosed	1	Chassis Mount	27 V	999 W	88 %	1.61 "	295 mm	5 in	11.61 in	5 in	41 mm	264 VAC 370 VDC	90 VAC 127 VDC	3000 V
MEAN WELL USA Inc. RSP-1000-24	Adjustable Output PFC Remote On/Off Universal Input	40 A	ITE (Commercial)	60 °C	-20 °C	CB CE cURus TUV	Enclosed	1	Chassis Mount	24 V	960 W	88 %	1.61 "	295 mm	5 in	11.61 in	5 in	41 mm	264 VAC 370 VDC	90 VAC 127 VDC	3000 V
MEAN WELL USA Inc. RSP-1000-12	Adjustable Output PFC Remote On/Off Universal Input	60 A	ITE (Commercial)	60 °C	-20 °C	CB CE cURus TUV	Enclosed	1	Chassis Mount	12 V	720 W	83 %	1.61 "	295 mm	5 in	11.61 in	5 in	41 mm	264 VAC 370 VDC	90 VAC 127 VDC	3000 V
MEAN WELL USA Inc. RSP-1000-15	Adjustable Output PFC Remote On/Off Universal Input	50 A	ITE (Commercial)	60 °C	-20 °C	CB CE cURus TUV	Enclosed	1	Chassis Mount	15 V	750 W	85 %	1.61 "	295 mm	5 in	11.61 in	5 in	41 mm	264 VAC 370 VDC	90 VAC 127 VDC	3000 V
