1776119 Series

Catalog

TERM BLK 4P SIDE ENT 5.08MM PCB

Part	Color	Mounting Type	Number of Levels	Wire Termination	Voltage	Positions Per Level	Torque - Screw	Torque - Screw	Screw Thread	Wire Gauge [Max]	Wire Gauge [Min]	Screw Material - Plating	Pitch [x]	Pitch [x]	Contact Material - Plating [custom]	Mating Orientation	Current	Housing Material	Clamp Material - Plating

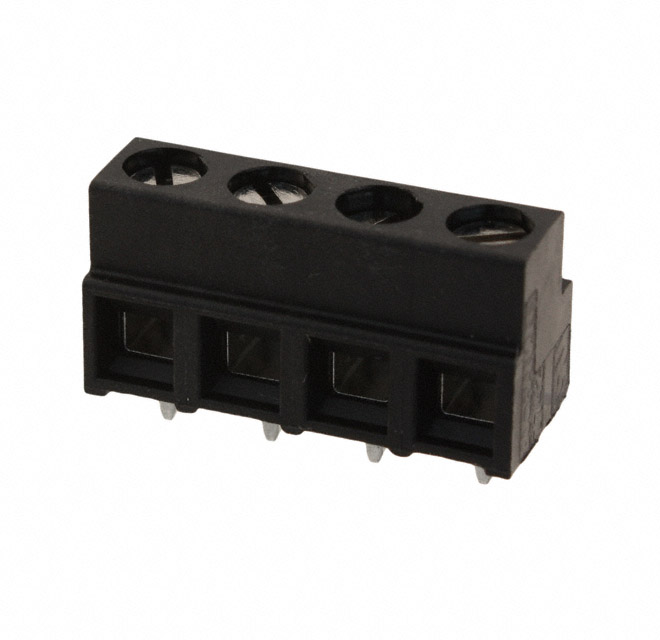

TE Connectivity Raychem Cable Protection 1776119-4	Black	Through Hole	1	Screw - Rising Cage Clamp	300 V	4	6 Lb-In	0.68 Nm	M3	30 AWG	16 AWG	Brass - Nickel Plated	0.2 in	5.08 mm	Brass - Tin Plated	Horizontal with Board	13.5 A	Polyamide (PA) Nylon	Brass - Nickel Plated

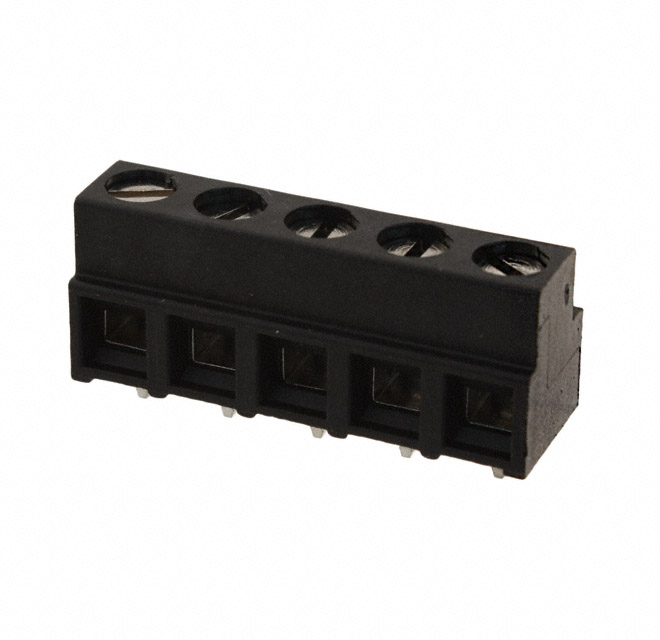

TE Connectivity Raychem Cable Protection 1776119-5	Black	Through Hole	1	Screw - Rising Cage Clamp	300 V	5	6 Lb-In	0.68 Nm	M3	30 AWG	16 AWG	Brass - Nickel Plated	0.2 in	5.08 mm	Brass - Tin Plated	Horizontal with Board	13.5 A	Polyamide (PA) Nylon	Brass - Nickel Plated
TE Connectivity Raychem Cable Protection 1776119-3	Black	Through Hole	1	Screw - Rising Cage Clamp	300 V	3	6 Lb-In	0.68 Nm	M3	30 AWG	16 AWG	Brass - Nickel Plated	0.2 in	5.08 mm	Brass - Tin Plated	Horizontal with Board	13.5 A	Polyamide (PA) Nylon	Brass - Nickel Plated

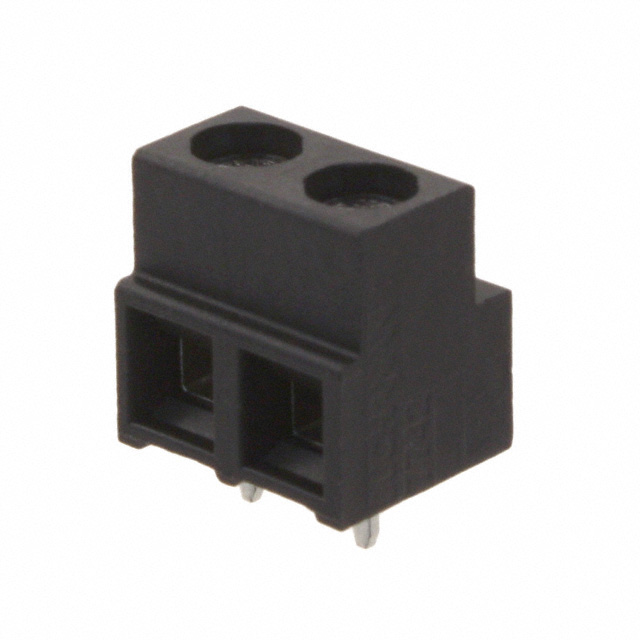

TE Connectivity Raychem Cable Protection 1776119-2	Black	Through Hole	1	Screw - Rising Cage Clamp	300 V	2	6 Lb-In	0.68 Nm	M3	30 AWG	16 AWG	Brass - Nickel Plated	0.2 in	5.08 mm	Brass - Tin Plated	Horizontal with Board	13.5 A	Polyamide (PA) Nylon	Brass - Nickel Plated
