000952 Series

Manufacturer: Molex

Catalog

CONN RCPT 10P 0.156 TIN EDGE MNT

Part	Contact Type	Contact Length - Post	Contact Length - Post	Termination	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Positions Loaded	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Fastening Type	Insulation Color	Number of Rows	Connector Type	Insulation Material	Applications	Contact Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Note	Contact Termination	Pitch	Pitch	Color

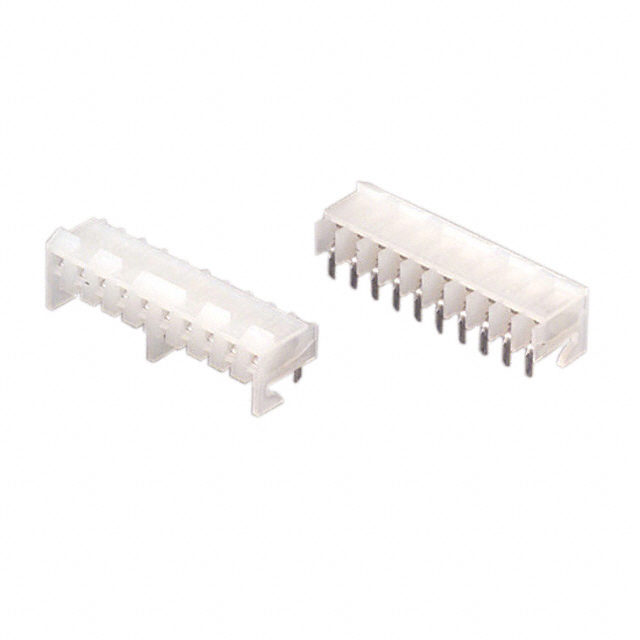

Molex 0009523101	Female Socket	3.68 mm	0.145 in	Solder	UL94 V-2	600 V	4.5 A	0.308 "	7.82 mm	100 çin	2.54 çm	Board Hooks	10	3.96 mm	0.156 in	Tin	All	Board Edge Right Angle Through Hole	80 °C	-40 C	Board to Board Cable	Locking Ramp	White	1	Receptacle	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Brass	Square	2.54 µm	100 µin
Molex 0009522088	Female Socket	4.06 mm	0.16 in	Solder	UL94 V-2	600 V	4.5 A			100 çin	2.54 çm	Board Hooks	8	3.96 mm	0.156 in	Tin	All	Through Hole	105 ░C	-40 C	Board to Board Cable	Locking Ramp	White	1	Receptacle Bottom Entry	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Phosphor Bronze	Square	2.54 µm	100 µin	0.449 in	11.4 mm
Molex 0009521101	Female Socket	3.68 mm	0.145 in	Solder	UL94 V-2	600 V	4.5 A	0.308 "	7.82 mm	60 µin	1.52 Ám	Board Hooks	10	3.96 mm	0.156 in	Tin	All	Board Edge Right Angle Through Hole	80 °C	-40 C	Board to Board Cable	Locking Ramp	White	1	Receptacle	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Brass	Square	1.52 µm	60 µin
Molex 0009525102	Female Socket			Solder	UL94 V-2	600 V	4 A			100 çin	2.54 çm	Board Hooks	10	3.96 mm	0.156 in	Tin	All	Through Hole	80 °C	-40 C	Board to Board Cable	Locking Ramp	White	1	Receptacle Bottom Entry	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Brass	Square	2.54 µm	100 µin	0.449 in	11.4 mm	0.126 "	3.2 mm

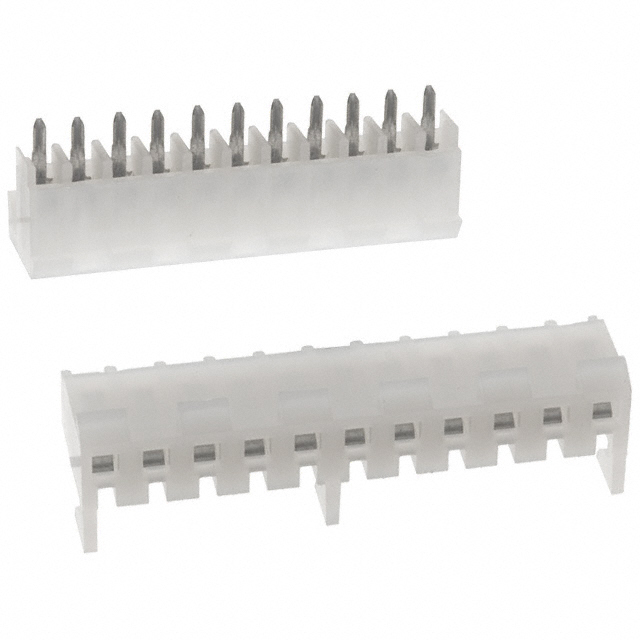

Molex 0009523113	Female Socket	3.05 mm	0.12 in	Solder	UL94 V-2	600 V	4.5 A			100 çin	2.54 çm	Board Hooks	11	3.96 mm	0.156 in	Tin	All	Through Hole	80 °C	-40 C	Board to Board Cable	Locking Ramp	White	1	Receptacle	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Brass	Square	2.54 µm	100 µin	0.449 in	11.4 mm
Molex 0009524144	Non-Gendered												14					Free Hanging (In-Line)				Locking Ramp		1	Receptacle											Contacts Not Included	Crimp	3.96 mm	0.156 in	Natural

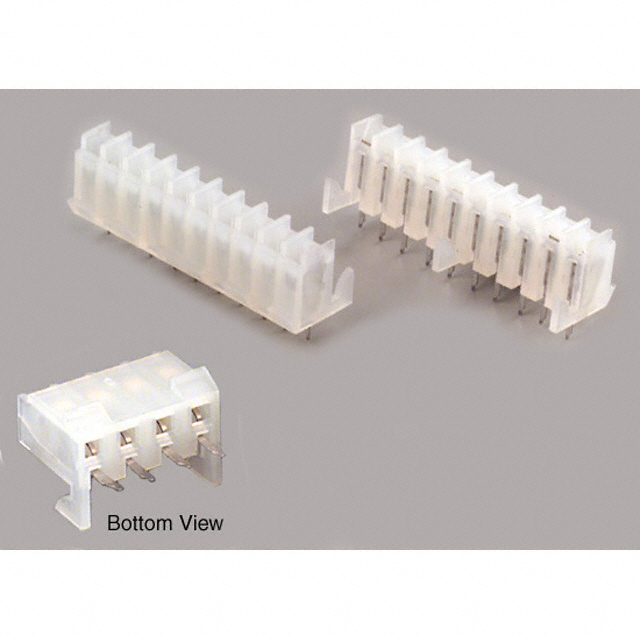

Molex 0009523102	Female Socket	4.06 mm	0.16 in	Solder	UL94 V-2	600 V	4 A			100 çin	2.54 çm	Board Hooks	10	3.96 mm	0.156 in	Tin	All	Through Hole	80 °C	-40 C	Board to Board Cable	Locking Ramp	White	1	Receptacle Bottom Entry	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Brass	Square	2.54 µm	100 µin	0.449 in	11.4 mm
Molex 0009523133	Female Socket	3.05 mm	0.12 in	Solder	UL94 V-2	600 V	4.5 A			100 çin	2.54 çm	Board Hooks	13	3.96 mm	0.156 in	Tin	All	Through Hole	80 °C	-40 C	Board to Board Cable	Locking Ramp	White	1	Receptacle	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Brass	Square	2.54 µm	100 µin	0.449 in	11.4 mm
Molex 0009523103	Female Socket	3.05 mm	0.12 in	Solder	UL94 V-2	600 V	4.5 A			100 çin	2.54 çm	Board Hooks	10	3.96 mm	0.156 in	Tin	All	Through Hole	80 °C	-40 C	Board to Board Cable	Locking Ramp	White	1	Receptacle	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Brass	Square	2.54 µm	100 µin	0.449 in	11.4 mm
Molex 0009523112	Female Socket	4.06 mm	0.16 in	Solder	UL94 V-2	600 V	4 A			100 çin	2.54 çm	Board Hooks	11	3.96 mm	0.156 in	Tin	All	Through Hole	80 °C	-40 C	Board to Board Cable	Locking Ramp	White	1	Receptacle Bottom Entry	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Brass	Square	2.54 µm	100 µin	0.449 in	11.4 mm
