1217097 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

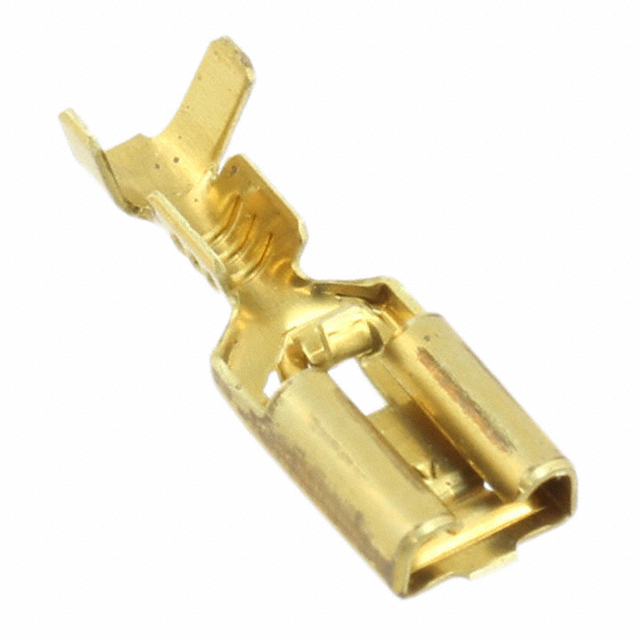

CONN QC RCPT 18-22AWG 0.187
| Part | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Tab Width [x] | Tab Width [x] | Length - Overall [x] | Length - Overall [x] | Termination | Tab Length | Tab Length | Gender | Contact Material | Terminal Type | Mounting Type | Tab Thickness | Tab Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.13 " | 0.09 in | 2.29 mm | 3.3 mm | 0.187 in | 4.75 mm | 0.67 in | 17.02 mm | Crimp | 0.255 in | 6.48 mm | Female | Brass | Standard | Free Hanging (In-Line) | 0.81 mm | 0.032 in | 22 AWG | 17.5 AWG | Non-Insulated |
